地下矿井煤炭碳排放量估算方法研究

彭仁东; 韦波; 李鑫; 张冀; 张紫昭; 王博; 张娜; 崔德广

doi:10.12363/issn.1001-1986.23.03.0127

地下矿井煤炭碳排放量估算方法研究—以阜康矿区西部为例

doi: 10.12363/issn.1001-1986.23.03.0127

彭仁东^1,,
韦波^{1, 2},
李鑫^1,*, ,,
张冀³,
张紫昭¹,
王博⁴,
张娜⁵,
崔德广⁵

1.
新疆大学新疆中亚造山带大陆动力学与成矿预测自治区重点实验室，新疆乌鲁木齐 830017
2.
新疆维吾尔自治区煤田地质局一五六煤田地质勘探队，新疆乌鲁木齐 830009
3.
新疆维吾尔自治区地质学会，新疆乌鲁木齐 830009
4.
新疆维吾尔自治区煤炭煤层气测试研究所，新疆乌鲁木齐 830009
5.
新疆维吾尔自治区煤田地质局，新疆乌鲁木齐 830009

基金项目: 新疆维吾尔自治区自然科学基金项目(2020D01A97，2022D01C79)；新疆维吾尔自治区重大科技专项课题(2022A03015-3)；国家自然科学基金项目(42002188)；新疆维吾尔自治区天山英才培养计划项目(2022TSYCCX0043)

详细信息

第一作者:
彭仁东，1994年生，男，四川达州人，硕士，从事非常规油气勘探开发研究工作. E-mail：pengrendongsj@163.com

通信作者:
李鑫，1990年生，男，山西晋城人，博士，副教授，从事非常规油气勘探开发研究工作. E-mail：lixinwaxj@xju.edu.cn

中图分类号: P618
计量
- 文章访问数: 92
- HTML全文浏览量: 5
- PDF下载量: 31
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-13
- 修回日期: 2023-07-07
- 录用日期: 2023-10-25
- 刊出日期: 2023-10-25
- 网络出版日期: 2023-10-10

Methods for estimating carbon emissions from coals in underground mines: A case study of the western Fukang mining area

PENG Rendong^1
,,
WEI Bo^{1, 2},
LI Xin^{1,*
, ,},
ZHANG Ji³,
ZHANG Zizhao¹,
WANG Bo⁴,
ZHANG Na⁵,
CUI Deguang⁵

1.
Xinjiang Key Laboratory for Geodynamic Processes and Metallogenic Prognosis of the Central Asian Orogenic Belt, Xinjiang University, Urumqi 830017, China
2.
No.156 Geological Exploration Team, Xinjiang Uygur Autonomous Region Coalfield Geology Bureau, Urumqi 830009, China
3.
Geological Society of Xinjiang, Urumqi 830009, China
4.
Coal and Coalbed Methane Testing Institute of Xinjiang Uygur Autonomous Region, Urumqi 830009, China
5.
Coal Geological Bureau of Xinjiang Uygur Autonomous Region, Urumqi 830009, China

摘要

摘要: 碳排放已成为人类社会关注的焦点，煤基碳排放构成了中国碳排放总量中最主要的部分。目前尚无对新疆典型地下矿井煤炭碳排放量的准确计算研究，其中CH₄排放量亦被忽略。基于煤层CH₄、CO₂赋存规律和煤炭开采规划，排除化石燃料燃烧、电力和热力排放，将阜康矿区西部地下矿井煤炭碳排放划分为已生产煤炭碳排放、计划生产煤炭碳排放、未回采煤炭碳排放、井下煤柱碳排放四部分进行计算，最终获得阜康矿区西部地下矿井煤炭的碳排放总量。结果如下：(1) 根据阜康矿区西部地下矿井平均生产年限，计算出阜康矿区西部已生产煤炭碳排放量为2.17万t/a、计划生产煤炭碳排放量为5.35万t/a、未回采煤炭碳排放量为0.40万t/a、井下煤柱碳排放量为0.74万t/a，则阜康矿区西部地下矿井煤炭碳排放总量为8.66万t/a。(2) 计划生产煤炭碳排放量>已生产煤炭碳排放量>井下煤柱碳排放量>未回采煤炭碳排放量，建议生产过程中先采气后采煤、强化充填抑制未回采资源及煤柱碳排放，对不同浓度瓦斯进行梯级综合回收利用以弱化碳排放。(3) 阜康矿区西部地下矿井煤炭碳排放量主要受煤炭生产总量(已生产和计划生产煤炭总量)、煤层CH₄和CO₂含量、解吸率、煤变质程度等影响，并随这些影响因素量值的增大而增大。研究成果可为阜康矿区西部地下矿井煤炭碳排放量控制及减排措施制定提供建议。
- 地下矿井 /
- 碳排放 /
- 甲烷 /
- 计算方法 /
- 影响因素 /
- 阜康矿区西部
Abstract: Carbon emissions have come into sharp focus of human society. The carbon emissions from coals rank as the most predominant part of China’s total carbon emissions. Presently, there is no available study on the accurate calculation of carbon emissions from coals in typical underground mines in Xinjiang, with the CH₄ emission even overlooked. This study centers on the carbon emissions from coals in underground mines in the western Fukang mining area. As per the occurrence laws of CH₄ and CO₂ in coal seams, as well as coal mining plans, this study classified the sources of carbon emissions from coals (excluding the emissions from fossil combustion, power generation, and thermal supply) into four parts: carbon emissions from coals mined, planned coals to be mined, unrecovered coals, and underground coal pillars. Based on this, the total carbon emissions from coals were calculated. The findings include: (1) based on the average mining years of underground mines, the carbon emissions from coals mined, planned coals to be mined, unrecovered coals, and underground coal pillars were calculated at 21700 t/a, 53500 t/a, 4000 t/a, and 7400 t/a, respectively, totaling 86600 t/a. (2) Given that the four types of carbon emission sources are in the order of planned coals to be mined > coals mined > underground coal pillars > unmined coals, this study suggested conducting gas extraction before coal mining, strengthening filling to inhibit emissions from unmined resources and coal pillars, performing comprehensive recycling and utilization of gas of different concentrations to reduce carbon emissions in the process of coal mining. (3) The carbon emissions from coals in the underground mines are primarily influenced by the total coal production (sum of coals mined and planned coals to be mined), the CH₄ and CO₂ content in coal seams, desorption rate, and the metamorphic degree of coals. These carbon emissions increase with the values of these four factors. The results of this study will provide suggestions for controlling carbon emissions from coals and determining measures for carbon emission reduction in the western Fukang mining area.
- underground mine /
- carbon emission /
- methane /
- calculation method /
- influencing factor /
- western Fukang mining area

HTML全文

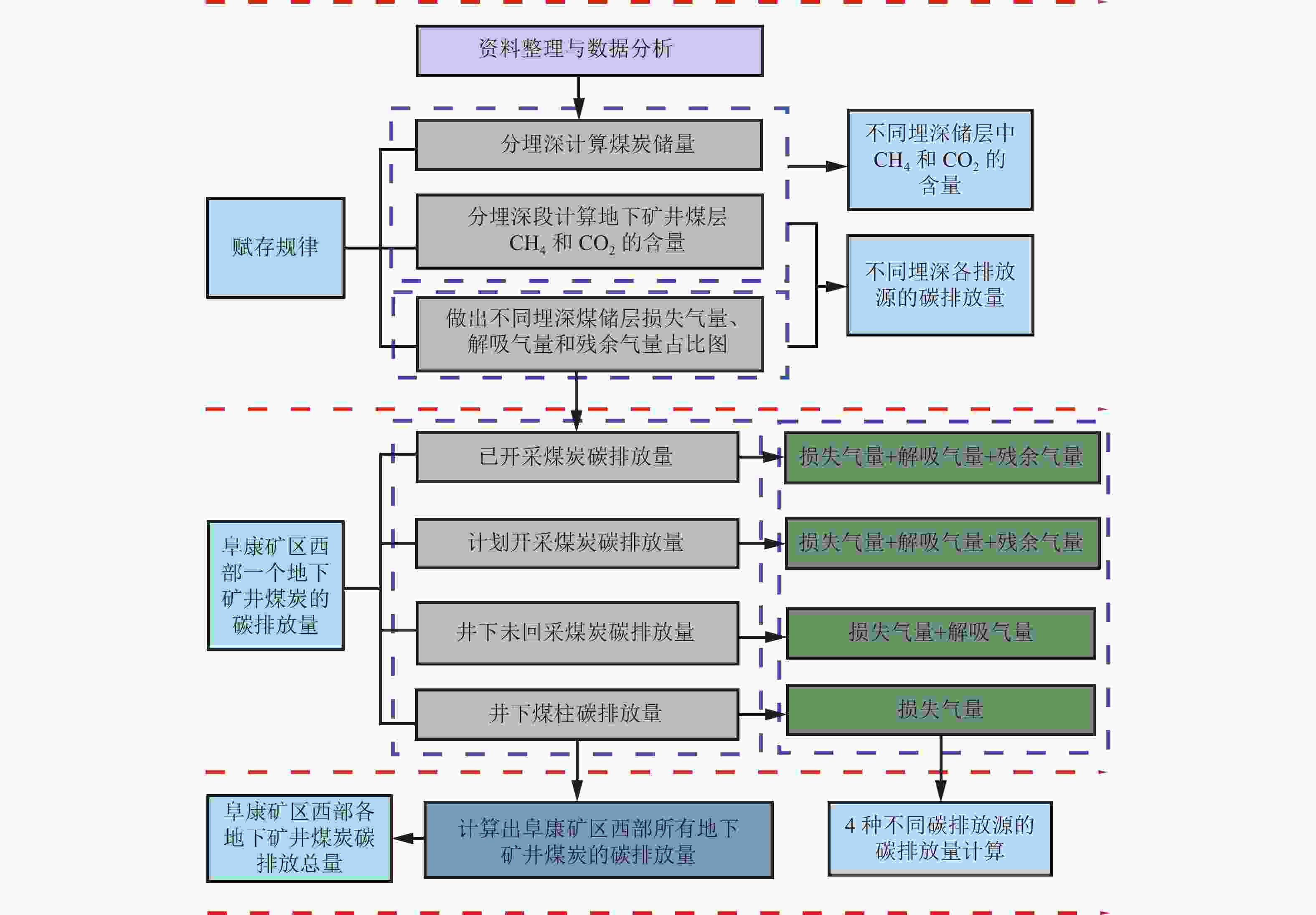

图 1 地下矿井煤炭碳排放量计算研究思路

Fig. 1 Philosophy for calculating carbon emissions from coals in underground mines

下载: 全尺寸图片幻灯片

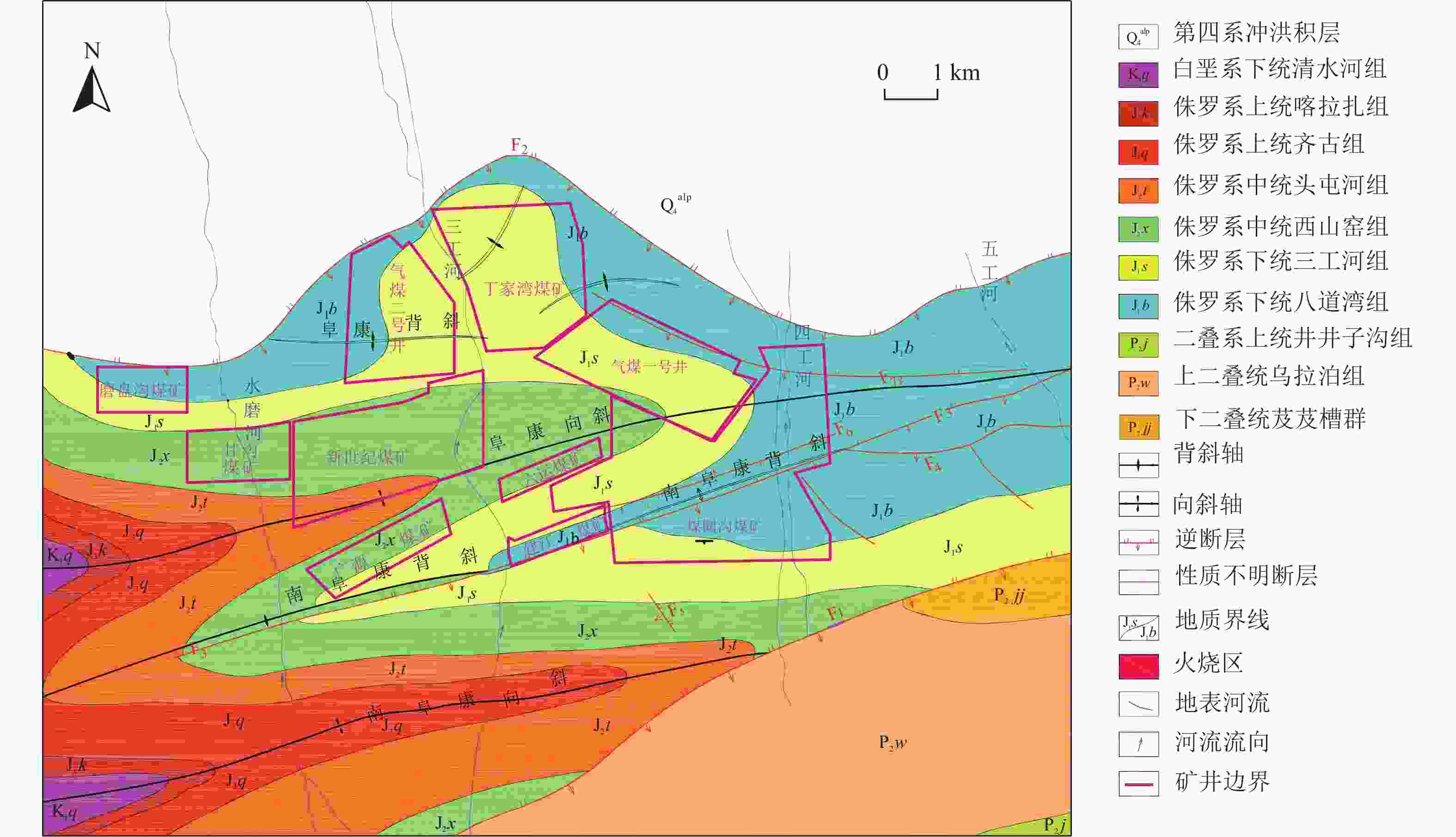

图 2 阜康矿区西部构造纲要^[21-23]

Fig. 2 Geological structure outline map of the western Fukang mining area^[21-23]

下载: 全尺寸图片幻灯片

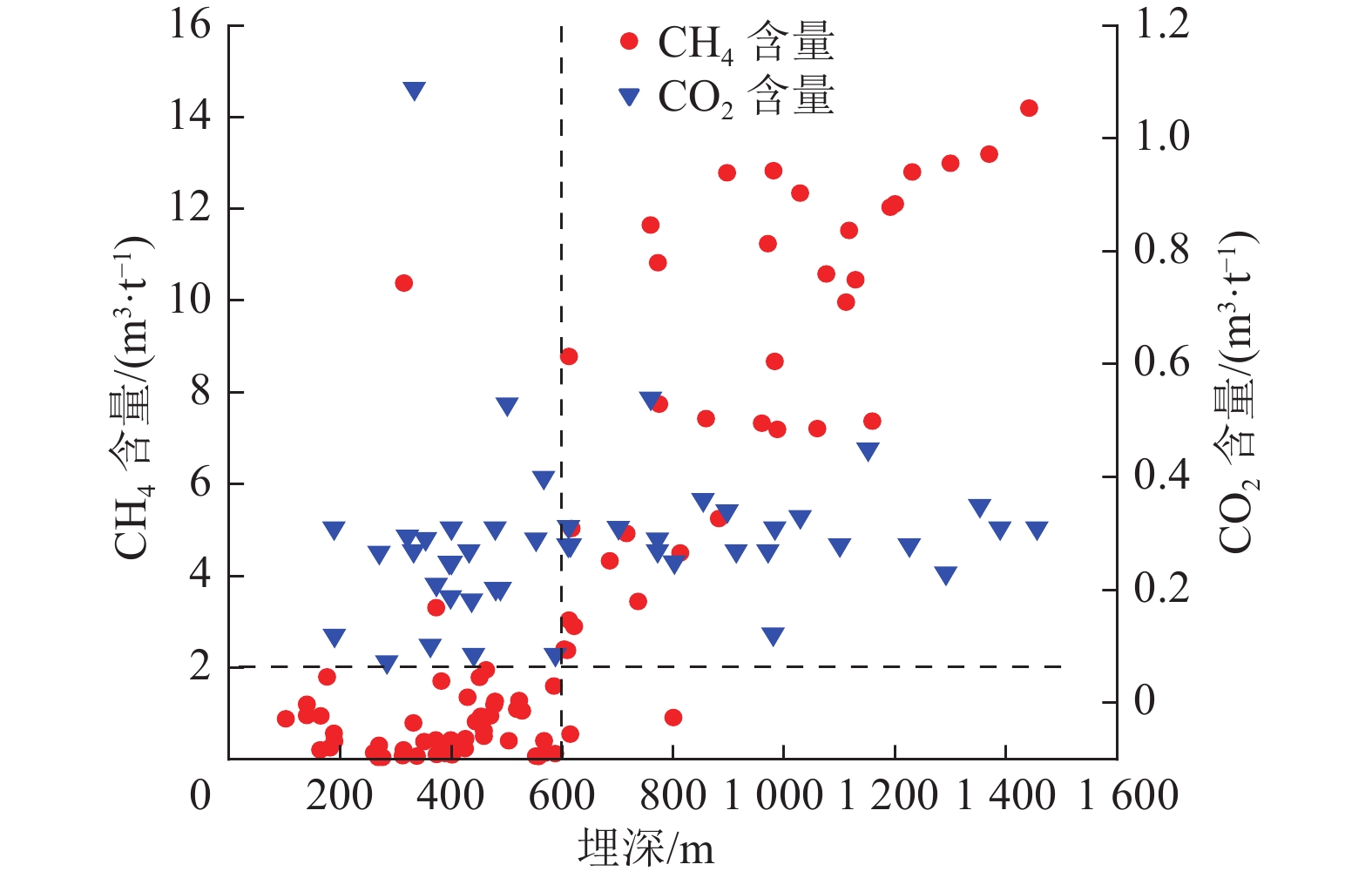

图 3 阜康矿区西部煤层CH₄和CO₂含量与埋深的关系

Fig. 3 Relationships between the CH₄ and CO₂ contents in coal seams and burial depth in the western Fukang mining area

下载: 全尺寸图片幻灯片

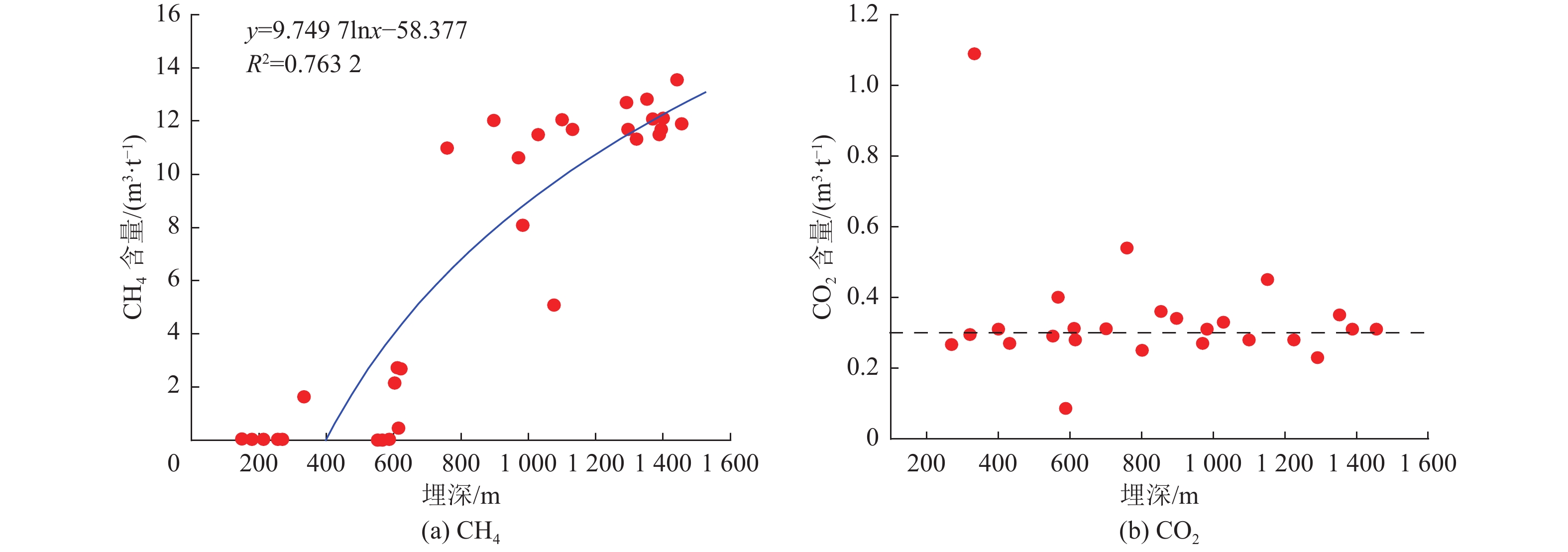

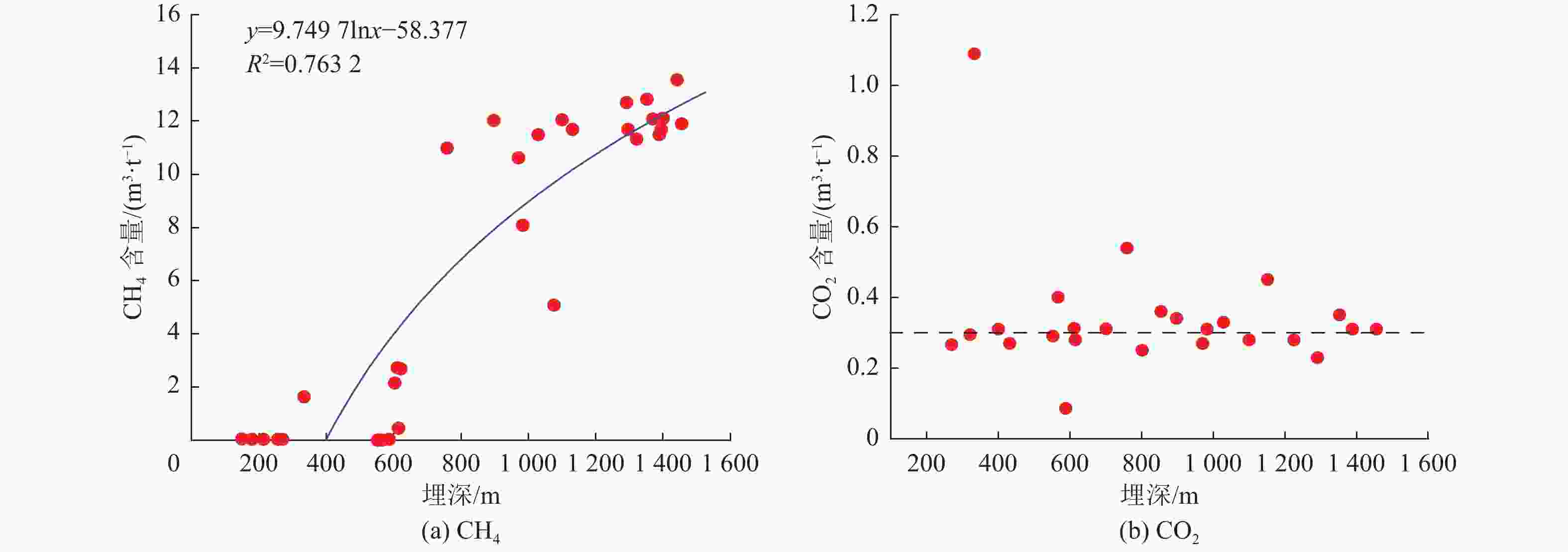

图 4 气煤一号井气体含量随埋深变化关系

Fig. 4 Relationships between gas content and burial depth of the Qi-Mei No.1 coal mine

下载: 全尺寸图片幻灯片

图 5 气煤一号井不同埋深各气体含量占比

Fig. 5 Proportions of gas content in coals at different burial depths of the Qimei No.1 coal mine

下载: 全尺寸图片幻灯片

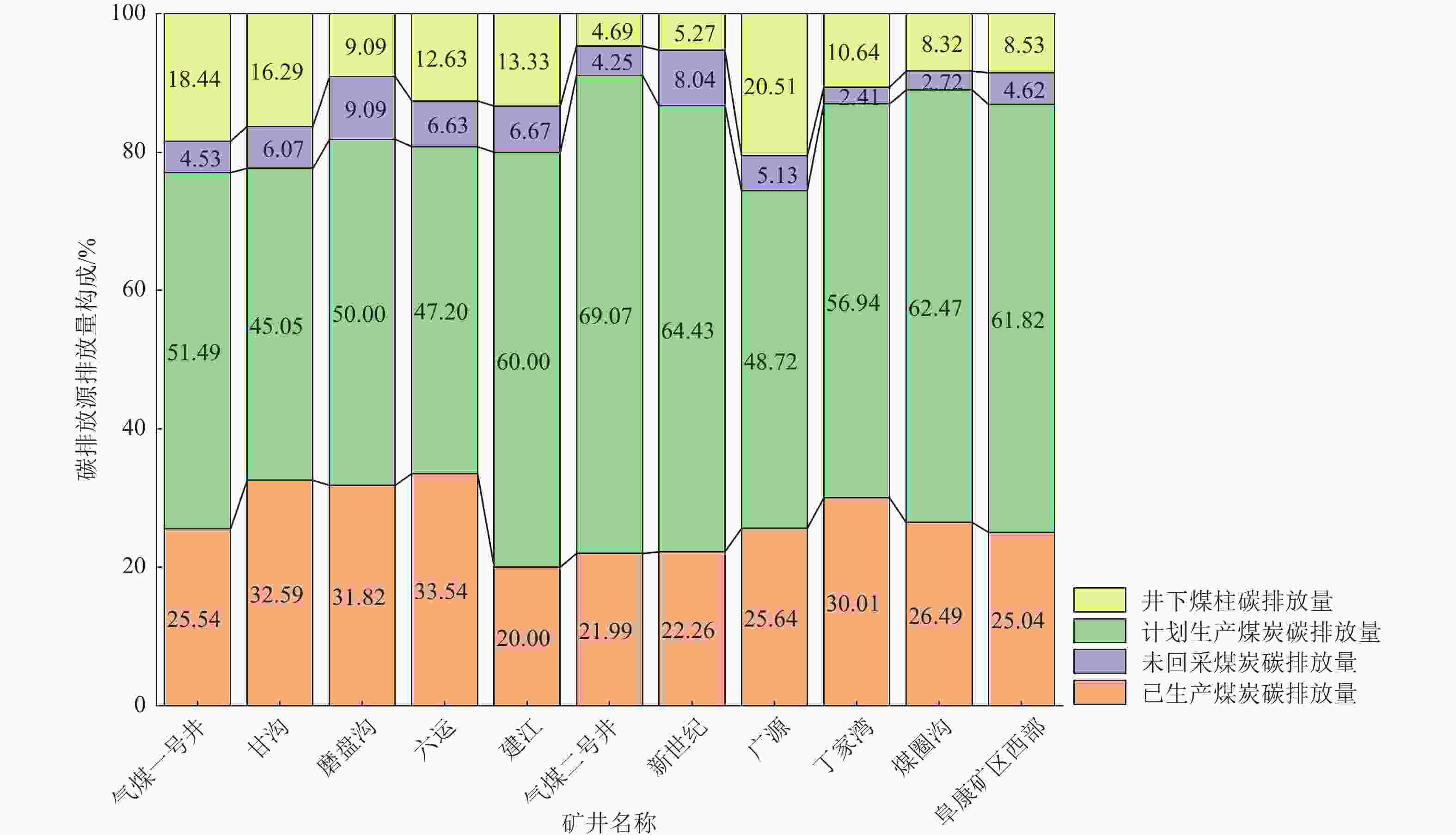

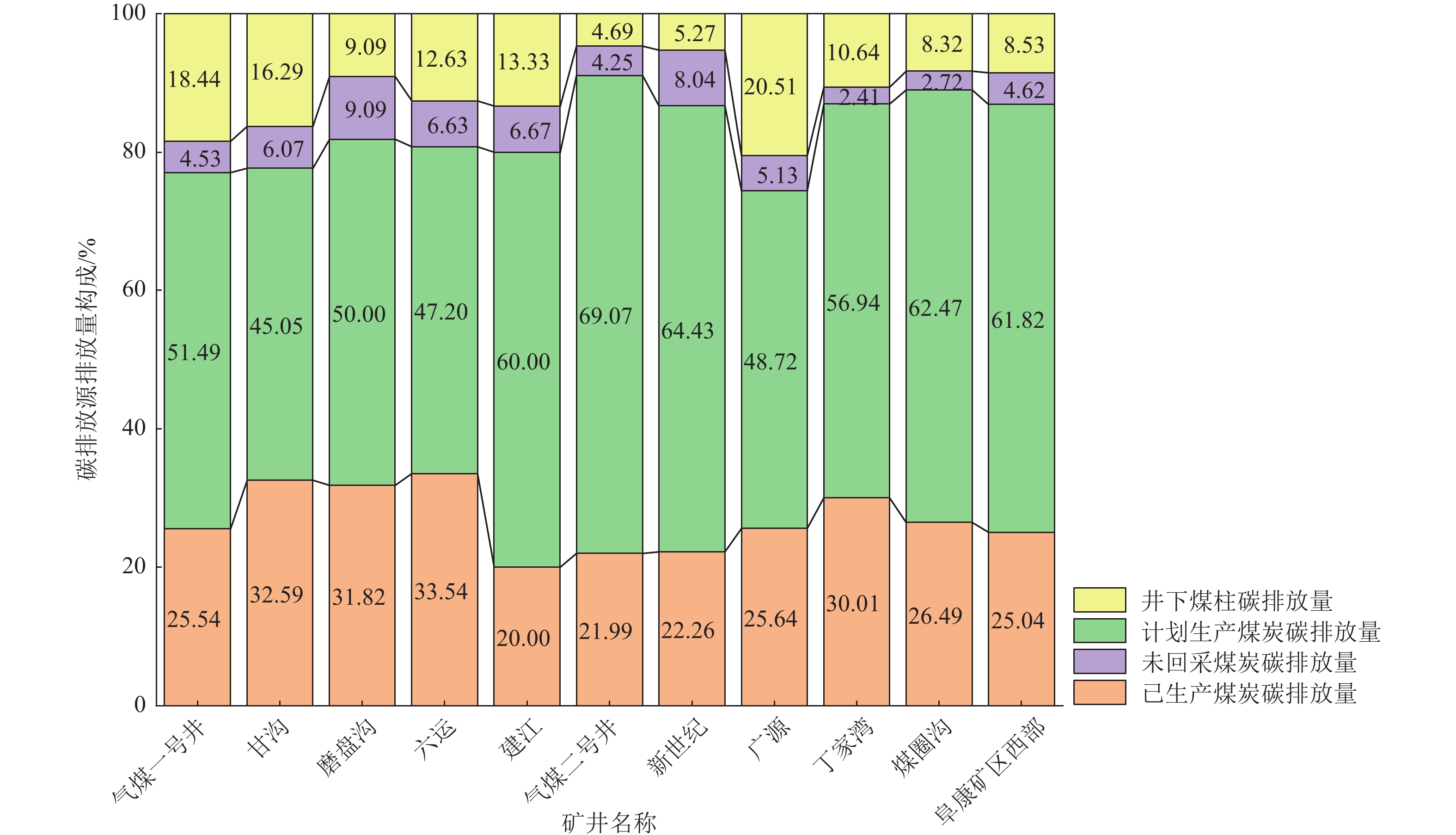

图 6 阜康矿区西部各地下矿井煤炭碳排放源排放量构成

Fig. 6 Carbon emissions from different sources in various underground mines in the western Fukang mining area

下载: 全尺寸图片幻灯片

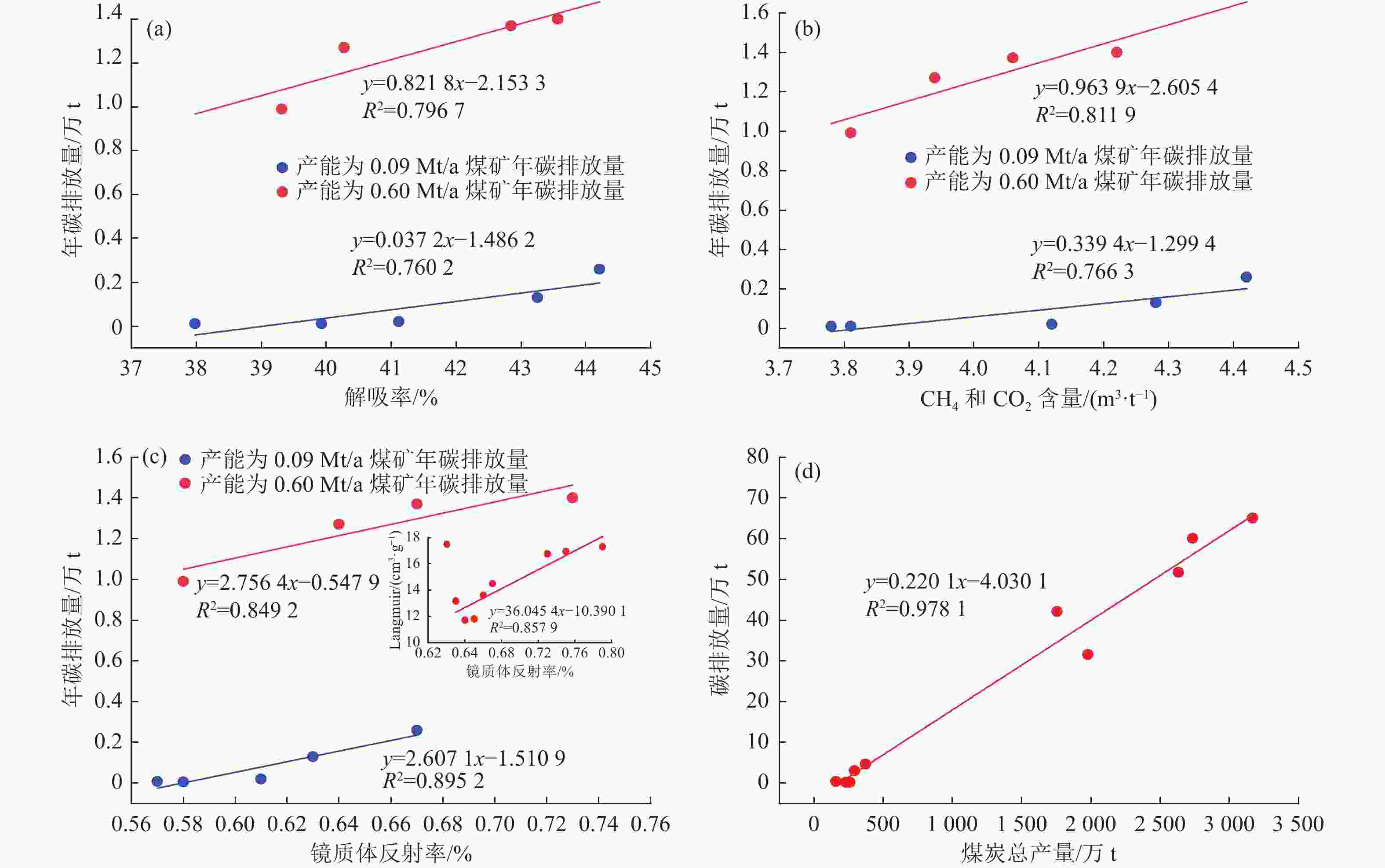

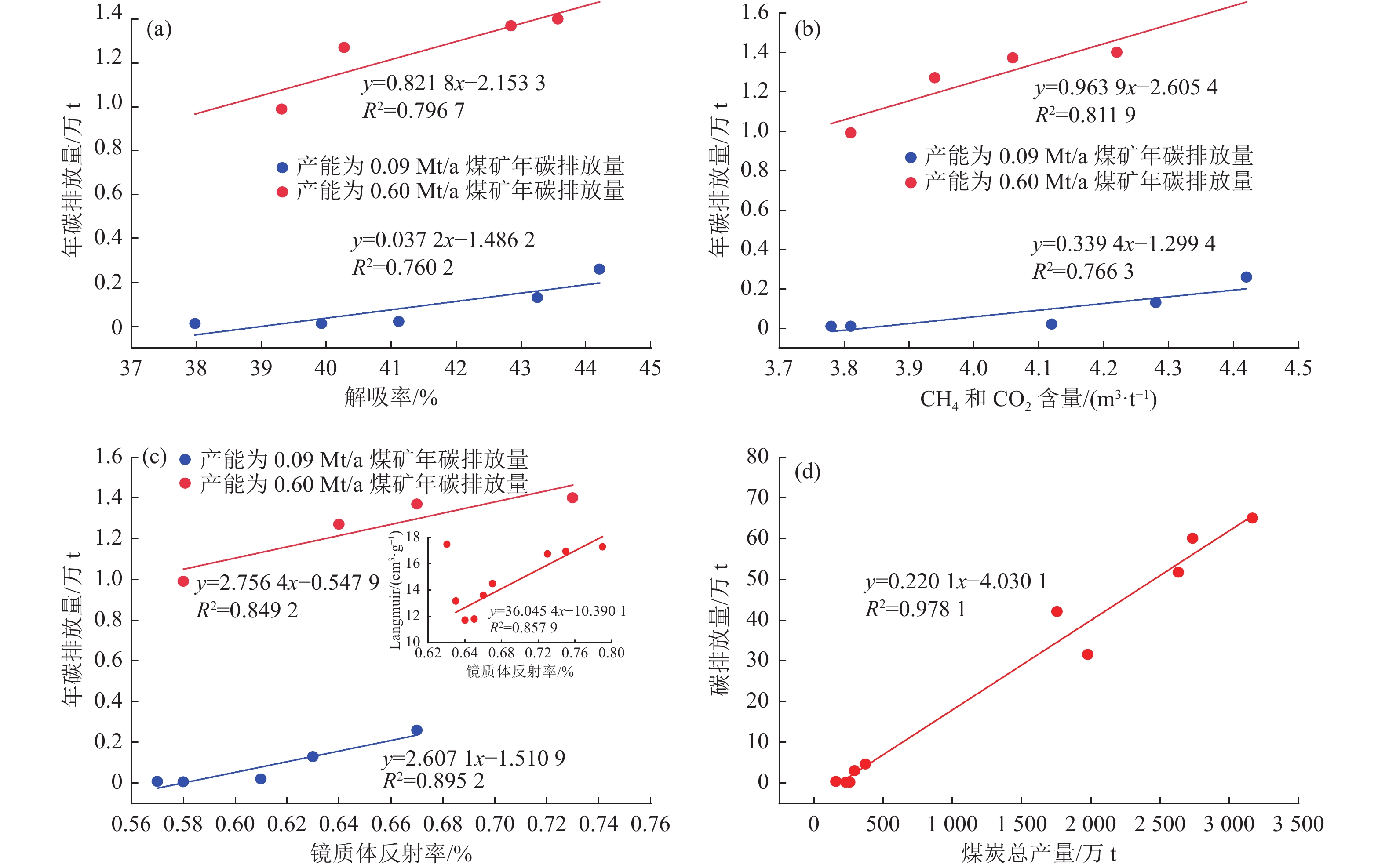

图 7 地下矿井煤炭碳排放量影响因素

Fig. 7 Factors influencing carbon emissions from coals in the underground mines

下载: 全尺寸图片幻灯片

表 1 资源量统计结果

Table 1 Statistics of resources

埋深中值/m	埋深/ m	资源储量/万t				合计工业资源储量/万t
埋深中值/m	埋深/ m	111b	122b	333	333K	合计工业资源储量/万t
25	0~50	0	0	105.60	84.48	84.48
75	50~100	0	200.10	7.10	5.68	205.78
125	100~150	225.20	59.90	5.20	4.16	289.26
175	150~200	202.10	51.20	13.60	10.88	264.18
225	200~250	201.70	52.70	32.10	25.68	280.08
275	250~300	281.00	81.70	27.80	22.24	384.94
325	300~350	224.20	140.90	54.50	43.60	408.70
375	350~400	164.50	152.60	115.80	92.64	409.74
425	400~450	0	213.30	241.30	193.04	406.34
475	450~500	0	37.20	380.60	304.48	341.68
525	500~550	0	45.40	353.20	282.56	327.96
575	550~600	0	47.40	376.60	301.28	348.68
625	600~650	0	0	405.10	324.08	324.08
675	650~700	0	0	344.20	275.36	275.36
725	700~750	0	0	221.60	177.28	177.28
775	750~800	0	0	209.10	167.28	167.28
825	800~850	0	0	2.90	2.32	2.32
875	850~900	0	0	0	0	0
合计		1 298.70	1 082.40	2 896.30	2 317.04	4 698.14

下载: 导出CSV

表 2 气煤一号井不同埋深煤层CH₄含量统计

Table 2 Statistics of the CH₄ content in coal seams at different burial depths in the Qimei No.1 coal mine

平均埋深/ m	CH₄含量/ (m³·t⁻¹)	平均埋深/ m	CH₄含量/(m³·t⁻¹)
525	2.689 3	725	5.836 2
575	3.576 2	775	6.486 4
625	4.389 1	825	7.096 0
675	5.139 5	875	7.669 7

下载: 导出CSV

表 3 气煤一号井不同碳排放源资源量统计

Table 3 Statistics of coal resources from different carbon emission sources in the Qi-Mei No.1 coal mine

埋深中值/m	埋深/m	已生产资源量/万t	计划生产资源量/万t	井下回采区未回采资源量/万t
25	0~50	24.2	0	1.27
75	50~100	58.3	100	8.33
125	100~150	63.5	120	9.66
175	150~200	35.6	140	9.24
225	200~250	29.3	140	8.91
275	250~300	43.3	150	10.17
325	300~350	37.6	150	9.87
375	350~400	38.3	150	9.91
425	400~450	45.3	110	8.17
475	450~500	65.3	100	8.70
525	500~550	53.6	80	7.03
575	550~600	62.6	80	7.51
625	600~650	42.1	60	5.37

下载: 导出CSV

表 4 阜康矿区西部地下矿井煤炭碳排放量统计

Table 4 Statistics of carbon emissions from different sources in underground mines in the western Fukang mining area

矿井	产能/(Mt·a⁻¹)	已生产煤炭碳排放量/万t	计划生产煤炭碳排放量/万t	未回采煤炭碳排放量/万t	井下煤柱碳排放量/万t	碳排放总量/万t	服务年限/a
气煤一号井	0.60	8.34	16.81	1.48	6.02	32.65	32.90
甘沟	0.09	1.02	1.41	0.19	0.51	3.13	22.70
磨盘沟	0.09	0.07	0.11	0.02	0.02	0.22	29.00
六运	0.09	1.62	2.28	0.32	0.61	4.83	18.30
建江	0.09	0.03	0.09	0.01	0.02	0.15	25.70
气煤二号井	0.60	14.71	46.21	2.84	3.14	66.90	43.60
新世纪	0.60	13.42	38.85	4.85	3.18	60.30	43.87
广源	0.09	0.10	0.19	0.02	0.08	0.39	17.80
丁家湾	0.60	12.83	24.34	1.03	4.55	42.75	33.40
煤圈沟	0.60	13.94	32.87	1.43	4.38	52.62	37.50
合计		66.08	163.16	12.19	22.51	263.94

下载: 导出CSV
