An improved automated testing model for maceral groups in coals based on DeeplabV3+
-

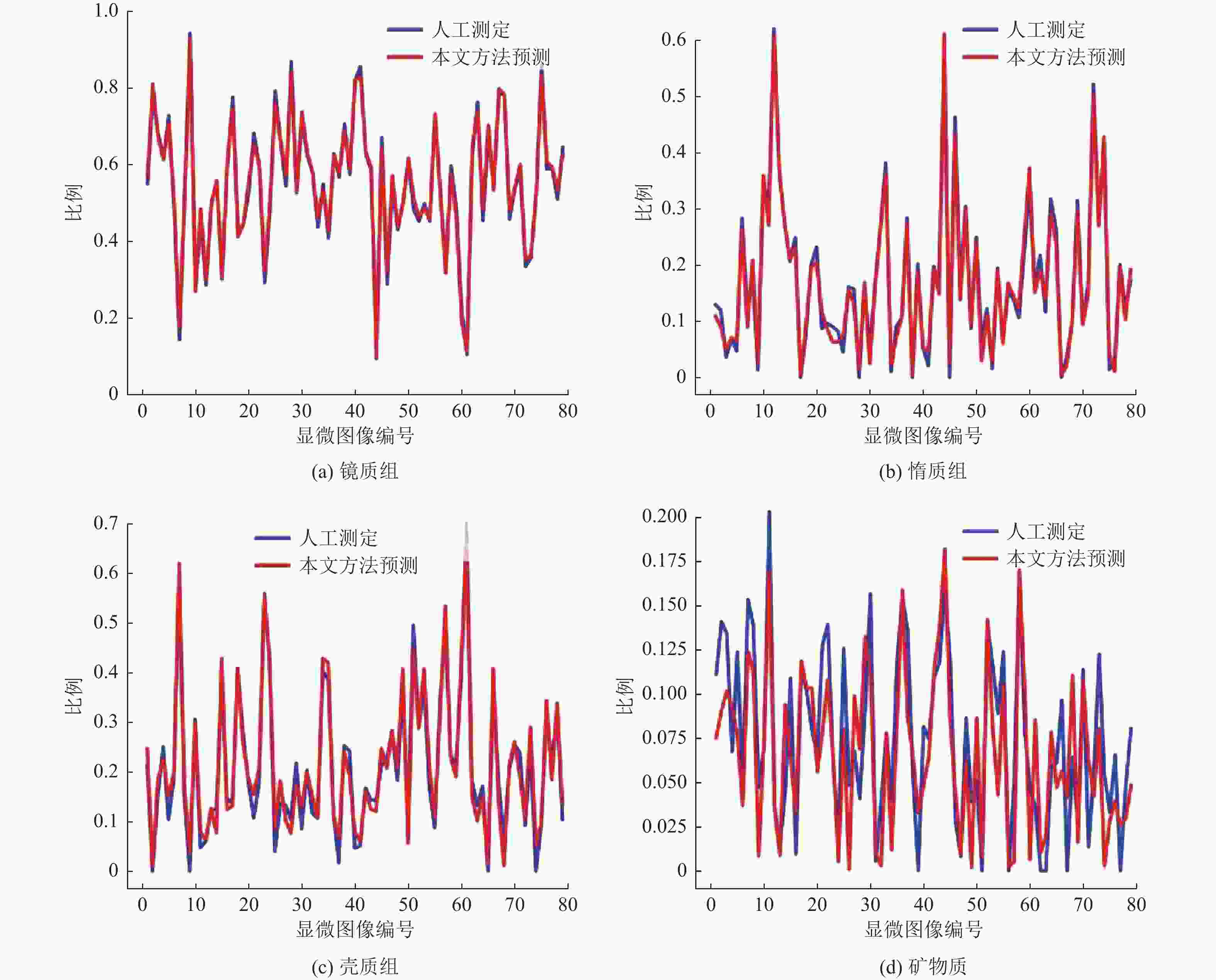

摘要: 煤岩显微组分组的识别对分析煤炭化学性质起到关键作用。人工识别方法费时费力，且专业性要求较高。现有的计算机辅助识别有效方法多以深度学习语义分割模型为手段，但因煤岩显微图像组成复杂，且存在过渡组分，因此无法准确识别煤岩显微组分组。针对此问题，提出改进的DeeplabV3+语义分割模型，在改进模型中引入Swin Transformer骨干网络和SkNet网络。首先，针对煤岩显微图像各个组分组交错杂糅且存在过渡组分，特征提取困难，利用Swin Transformer骨干网络作为基础特征提取网络，提升模型对煤岩显微图像每种组分组的特征提取能力，并使得分割网络获得特征间信息交互的能力；其次，针对在模型中空洞空间卷积池化金字塔模块对特征利用率低的问题，将SkNet网络融入空洞空间卷积池化金字塔模块，强化空洞空间卷积池化金字塔模块对重要特征的提取能力，并抑制非必要特征对最终预测结果的干扰；最后，将改进的DeeplabV3+模型与现有先进算法通过实验进行性能比较，结果表明：改进的DeeplabV3+语义分割模型在煤岩显微图像测试集上的像素准确率为92.06%，与随机森林方法、U-Net语义分割模型和DeeplabV3+语义分割模型相比像素准确率分别提高了9.48%、6.90%和3.40%；改进的DeeplabV3+语义分割模型与人工点测方法测试结果相近。改进的DeeplabV3+语义分割模型较现有煤岩显微组分组自动识别模型性能更优，可作为一种强大的计算机辅助人工识别煤岩显微组分组的手段。Abstract: The identification of maceral groups in coals plays a critical role in analyzing the chemical properties of coals. However, manual identification is laborious and requires high expertise. Existing computer-assisted identification methods, mostly adopting deep learning-based semantic segmentation models, fail to accurately identify maceral groups in coals due to complex compositions of microscopic coal images and the presence of transitional components. Therefore, this study proposed an improved DeeplabV3+ semantic segmentation model integrating the Swin Transformer backbone network and the SkNet. First, to deal with the challenge of feature extraction caused by the intertwined maceral groups and the presence of transitional components in microscopic coal images, the Swin Transformer backbone network was used as the basic feature extraction network to enhance the feature extraction ability of the model for various maceral groups and to enable the information interaction between features of the segmentation network. Second, to improve the feature utilization rate of the Atrous Spatial Pyramid Pooling (ASPP) module in the model, the SkNet network was integrated into the ASPP to enable the ASPP to extract important features and suppress unnecessary features that interfere with the final prediction results. Finally, the improved DeeplabV3+ model was compared with existing advanced algorithms through experiments. As indicated by the comparison results, the improved model yielded pixel accuracy of 92.06% on the test set of microscopic coal images, which was 9.48%, 6.90%, and 3.40% higher than that of the random forest method, the U-Net semantic segmentation model, and the DeeplabV3+ semantic segmentation model, respectively. Furthermore, the improved model showed results similar to the manual point measurement method. Therefore, the improved model, outperforming the existing automatic identification models for coal maceral groups, can serve as a powerful method for the computer-assisted manual identification of maceral groups in coals.
-
Key words:
- microscopic coal image /
- maceral group /
- automated testing /
- semantic segmentation model /
- Swin Transformer /
- SkNet
-

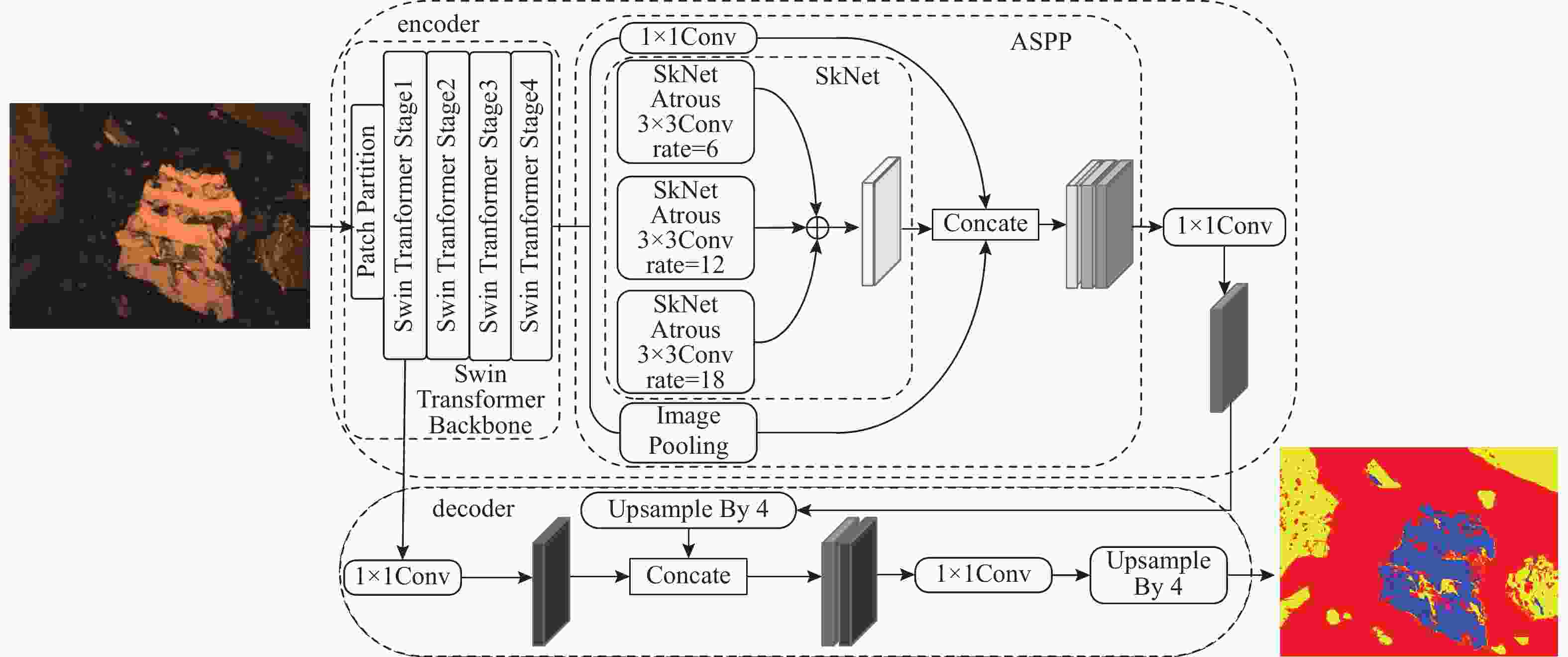

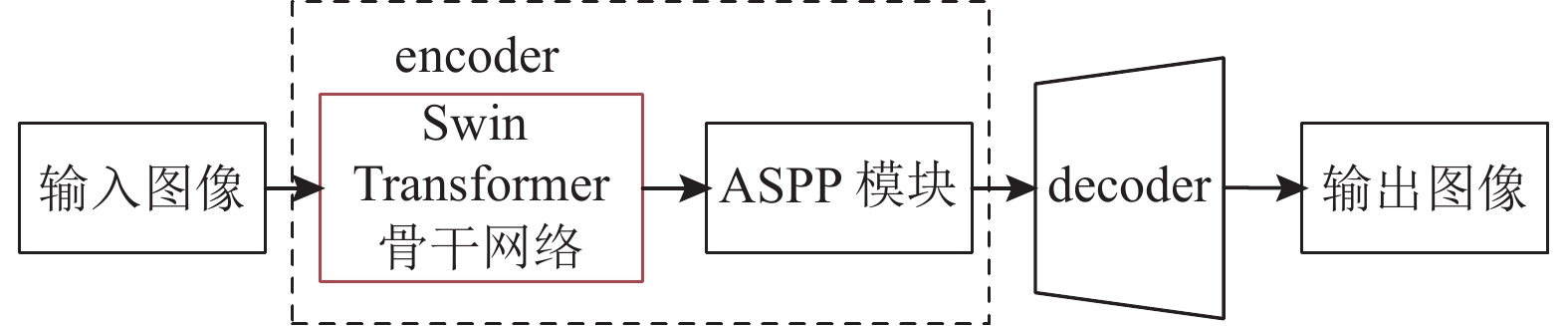

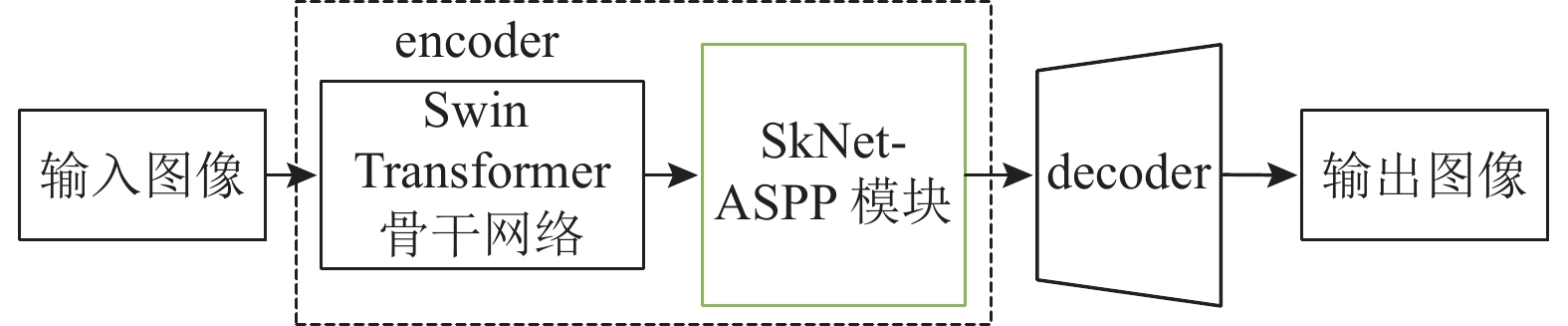

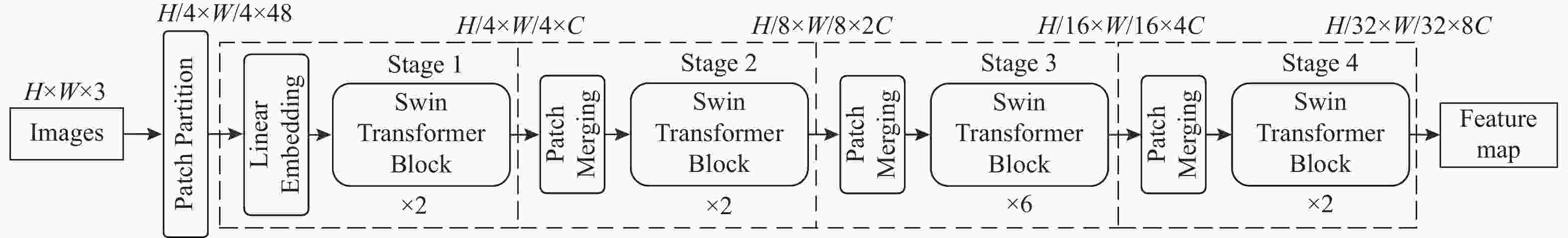

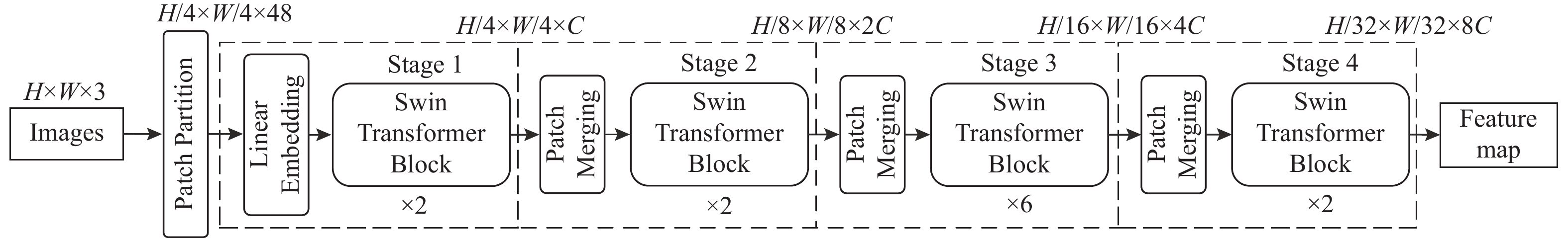

图 2 基于Swin Transformer网络改进的DeeplabV3+编码器
Fig. 2 Improved DeeplabV3+ encoder based on the Swin Transformer network

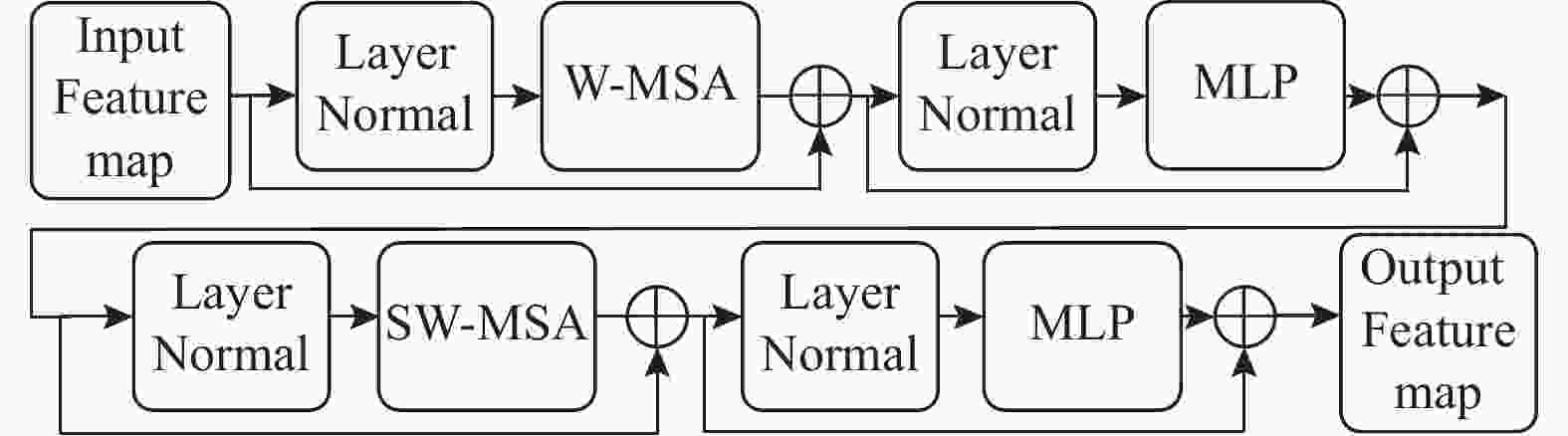

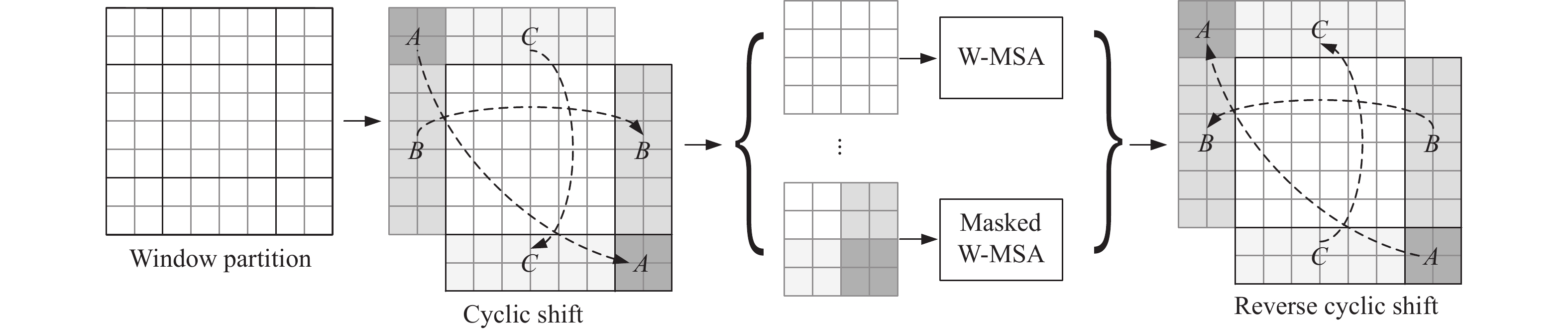

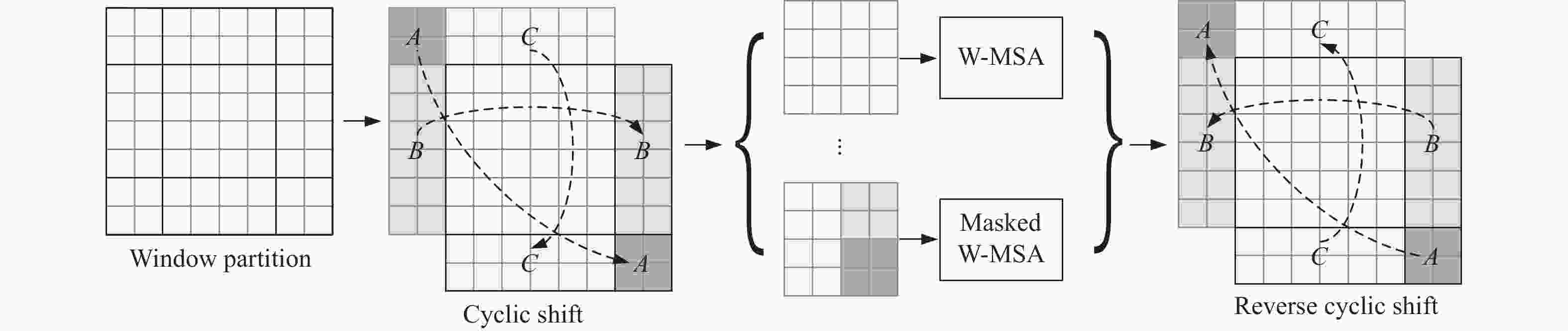

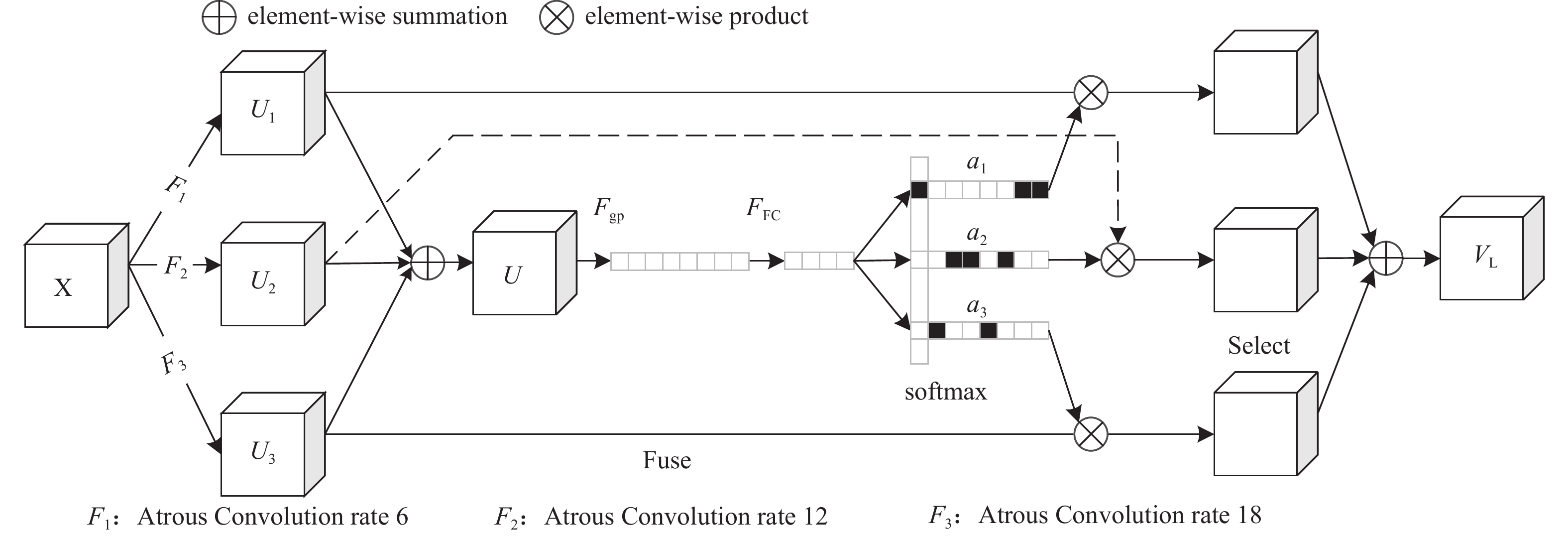

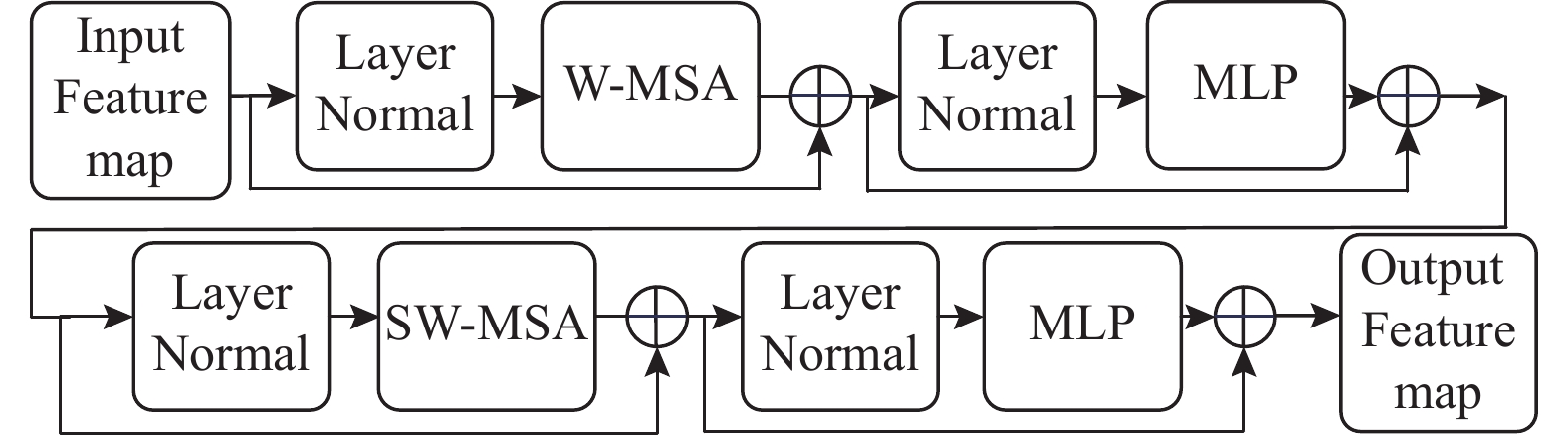

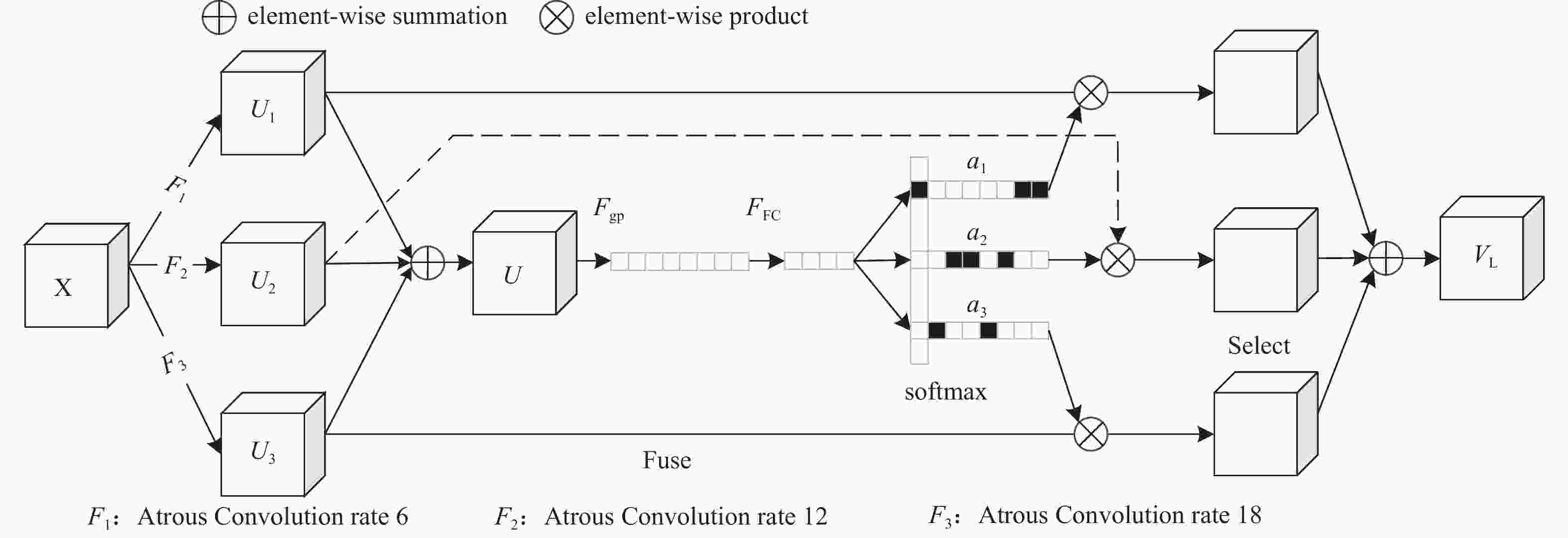

图 5 基于移动窗口的自注意力计算流程
Fig. 5 Self-attention calculation process based on shifted windows

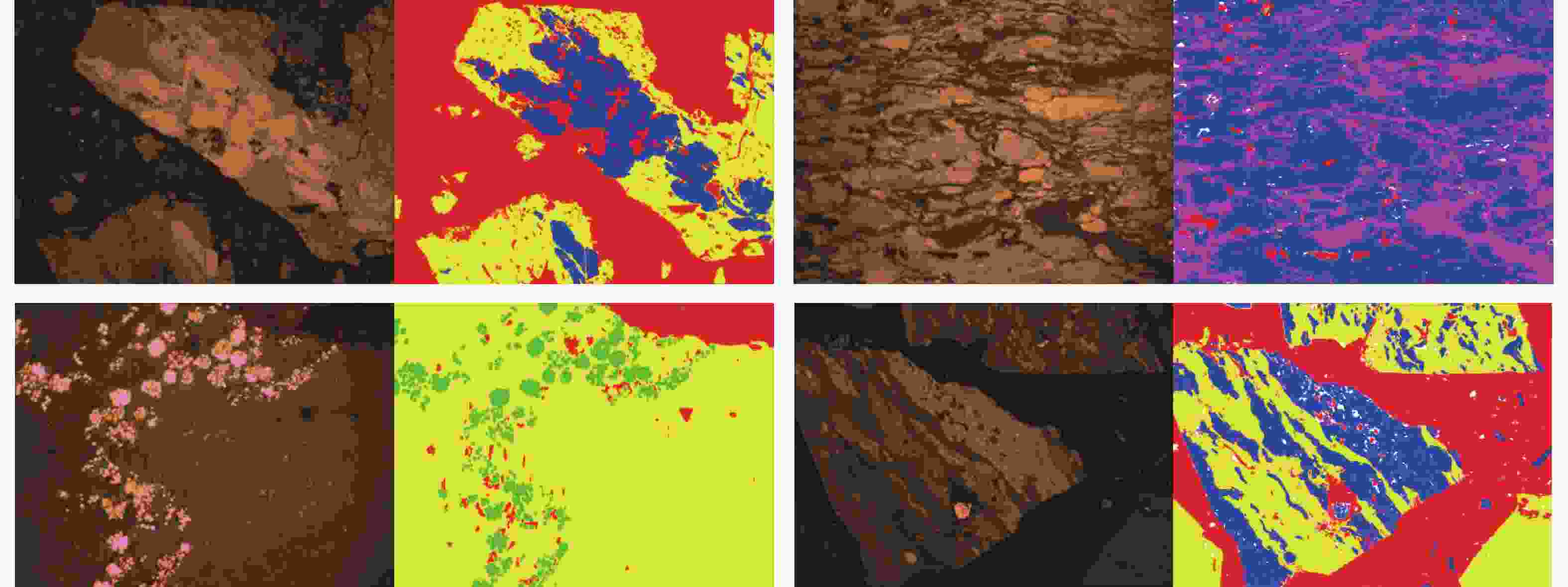

图 8 煤岩显微图像原图(左)和标注结果示例(右)
Fig. 8 Original microscopic coal images (left) and the example of manual annotation results (right)

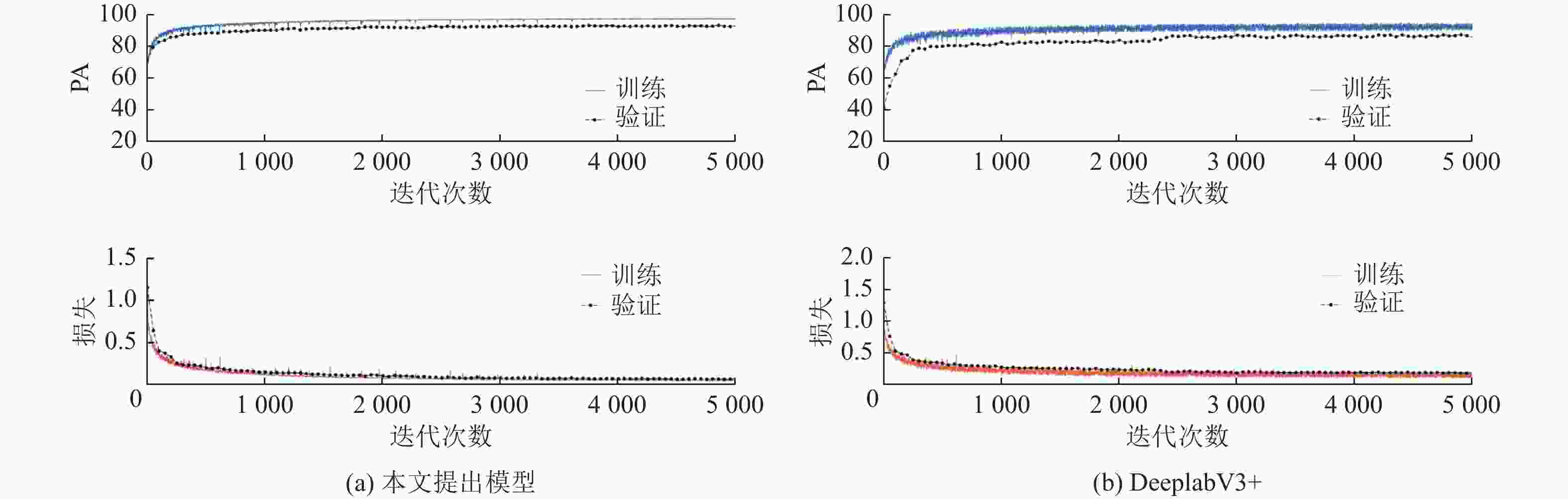

图 9 2种模型下损失曲线和模型像素准确率(PA)曲线对比
Fig. 9 Comparison of the loss curves and PA curves for improved DeeplabV3+ and DeeplabV3+

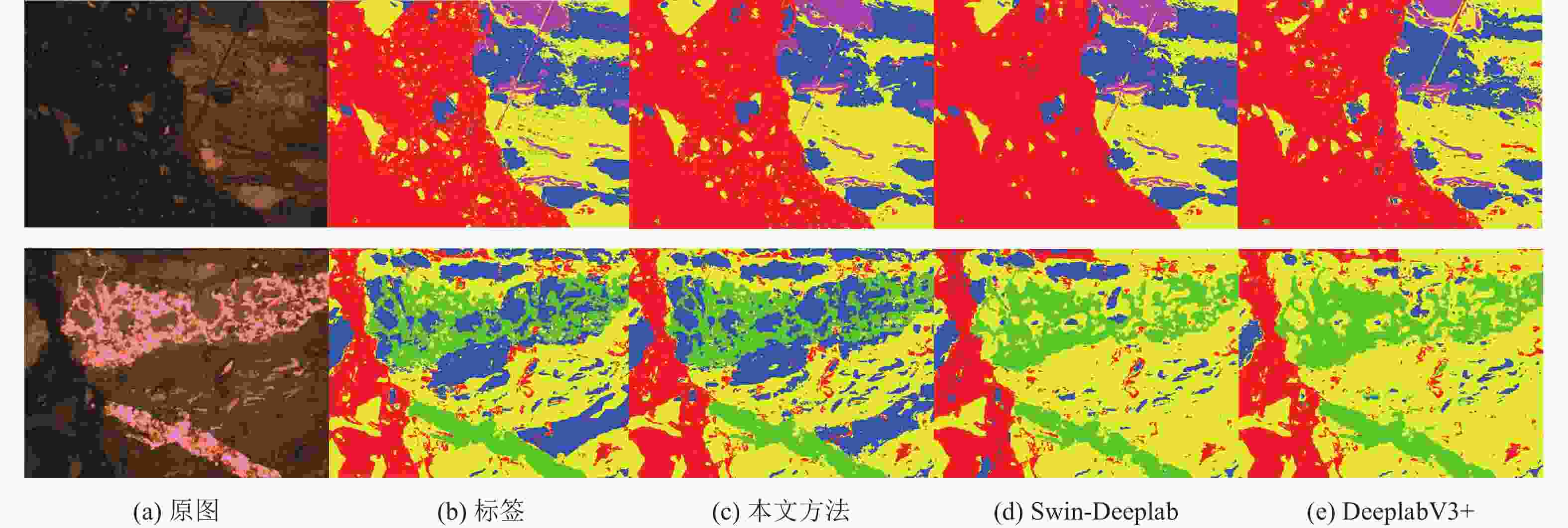

图 10 不同煤岩显微组分识别模型预测结果
Fig. 10 Prediction results of different identification models for coal maceral groups

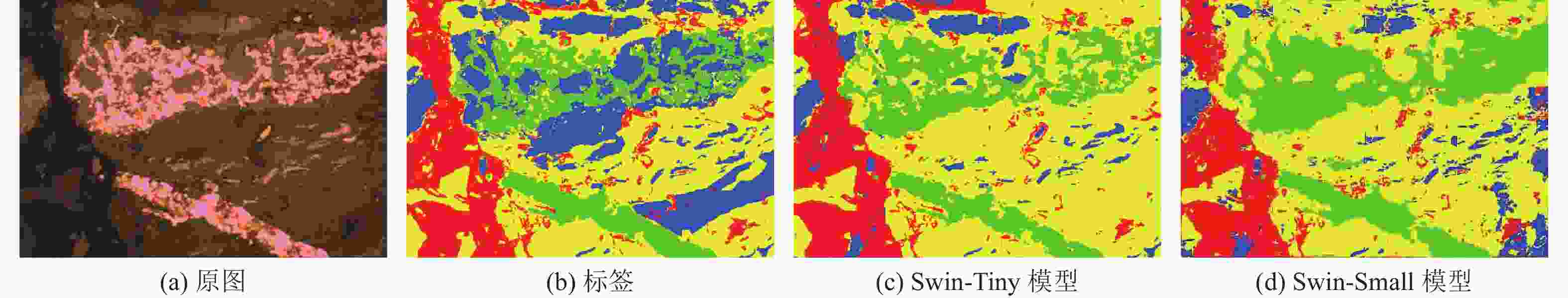

图 11 使用Swin-Tiny和Swin-Small的分割模型预测结果
Fig. 11 Prediction results of Swin-Tiny and Swin-Small segmentation models

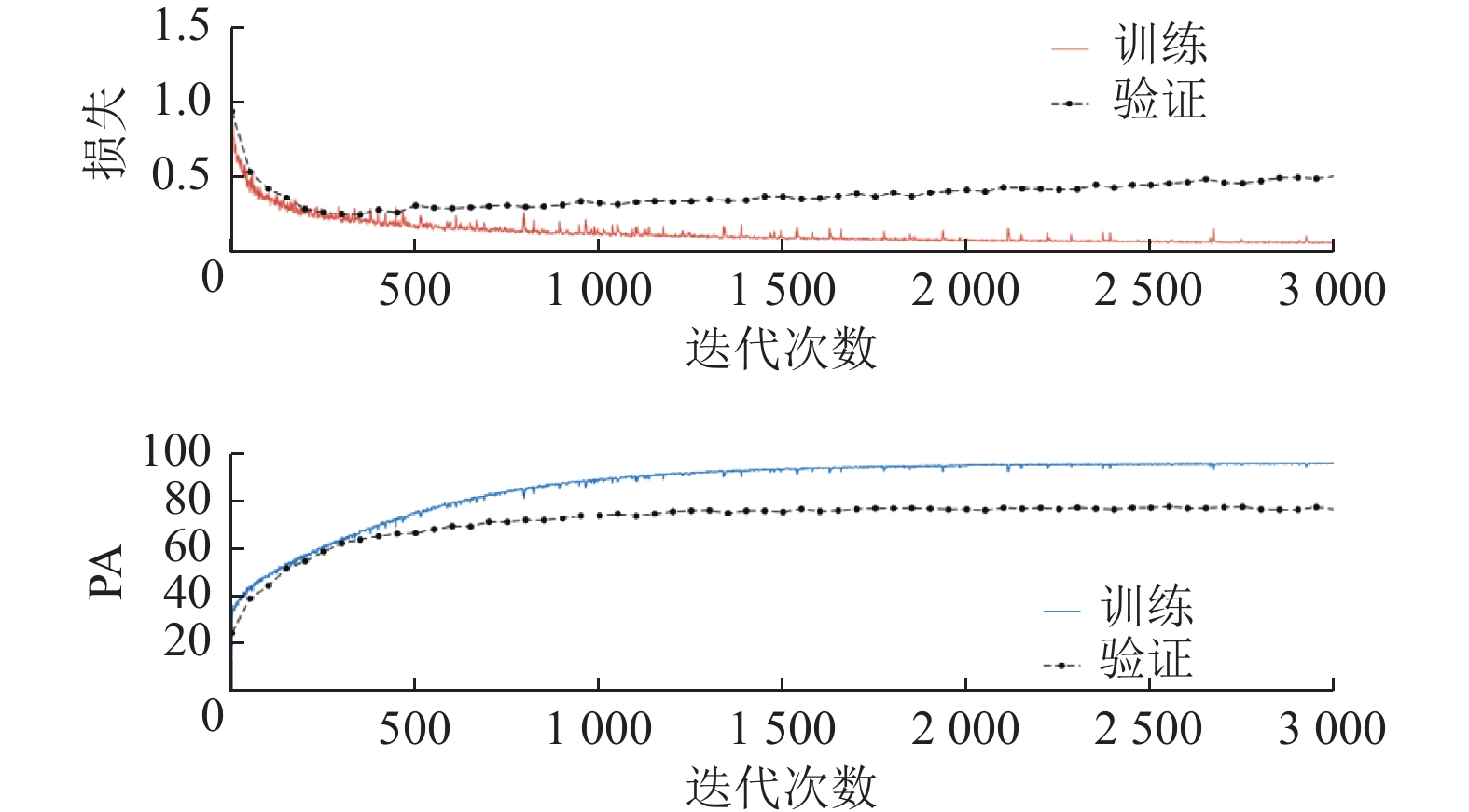

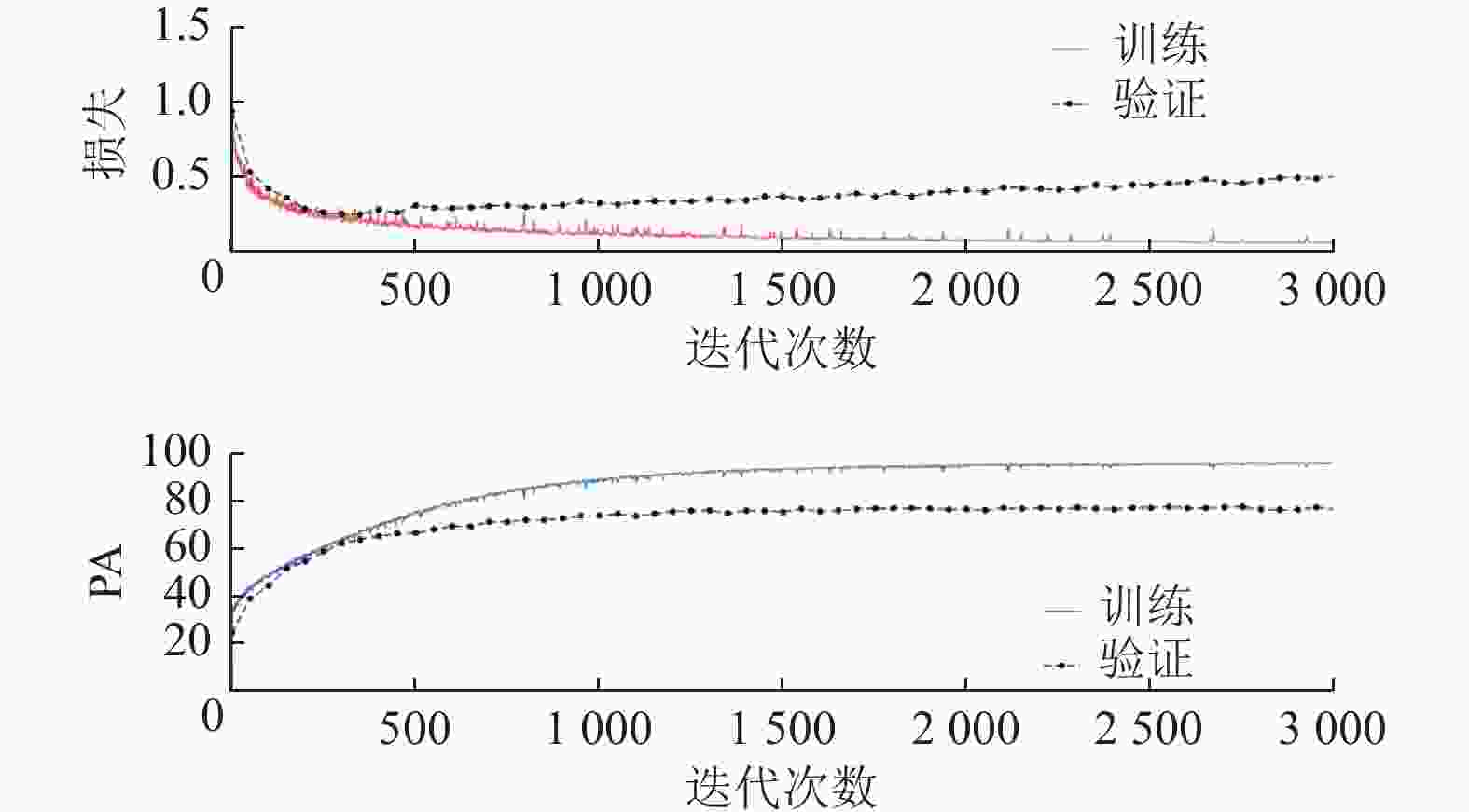

图 12 使用Swin-Small分割模型的损失曲线和模型像素准确率曲线
Fig. 12 Loss curves and PA curves of the Swin-Small segmentation model
表 1 不同煤岩显微组分组识别模型预测结果
Table 1 Pediction results of different identification models for coal maceral groups
单位：% 方法 PA MPA MIoU 随机森林[9] 82.58 63.36 51.12 FCN-16s 80.26 53.29 45.10 U-Net 85.16 67.19 53.25 DeeplabV3 85.45 68.45 52.24 DeeplabV3+ 88.66 70.66 59.00 改进的DeeplabV3+ 92.06 74.66 63.51
下载: 导出CSV
表 2 改进的DeeplabV3+模型消融实验
Table 2 Ablation experiment results of the improved DeeplabV3+ model
单位：% 方法 PA MPA MIoU DeeplabV3+ 88.66 70.66 59.00 Swin-Deeplab 89.45 71.45 61.24 改进的DeeplabV3+ 92.06 74.66 63.51
下载: 导出CSV
表 3 改进的DeeplabV3+模型识别煤岩显微图像混淆矩阵
Table 3 Confusion matrix of the improved DeeplabV3+ model for identification of microscopic coal images
显微组分组 镜质组 惰质组 壳质组 矿物质 环氧树脂 镜质组 0.95 0.02 0 0 0.03 惰质组 0 0.91 0 0.08 0.01 壳质组 0.02 0 0.79 0 0.19 矿物质 0 0.02 0 0.98 0 环氧树脂 0 0 0.03 0 0.97
下载: 导出CSV
表 4 Swin-Deeplab模型识别煤岩显微图像混淆矩阵
Table 4 Confusion matrix of the Swin-Deeplab model for identification of microscopic coal images
显微组分组 镜质组 惰质组 壳质组 矿物质 环氧树脂 镜质组 0.93 0.03 0 0 0.04 惰质组 0.02 0.90 0 0.08 0 壳质组 0.02 0 0.74 0 0.24 矿物质 0 0.05 0 0.95 0 环氧树脂 0 0 0.05 0 0.95
下载: 导出CSV
表 5 DeeplabV3+模型识别煤岩显微图像混淆矩阵
Table 5 Confusion matrix of the DeeplabV3+ model for identification of microscopic coal images
显微组分组 镜质组 惰质组 壳质组 矿物质 环氧树脂 镜质组 0.90 0.03 0 0.03 0.04 惰质组 0 0.89 0.02 0.08 0.01 壳质组 0.02 0 0.71 0 0.27 矿物质 0.02 0.02 0 0.96 0 环氧树脂 0 0 0.06 0 0.94
下载: 导出CSV
-
