露天煤矿排土场土层重构及接菌对植物根系提水作用试验研究

毕银丽; 高学江; 柯增鸣; 肖礼

doi:10.12363/issn.1001-1986.22.07.0595

露天煤矿排土场土层重构及接菌对植物根系提水作用试验研究

doi: 10.12363/issn.1001-1986.22.07.0595

毕银丽^{1, 2,},
高学江¹,
柯增鸣¹,
肖礼¹

1.
西安科技大学西部矿山生态环境修复研究院，陕西西安 710054
2.
中国矿业大学(北京) 矿山生态修复研究院，北京 100083

基金项目: 国家重点研发计划项目(2022YFF1303300)；国家自然科学基金面上项目(51974326)

详细信息

第一作者:
毕银丽，1971年生，女，陕西米脂人，博士，长江学者特聘教授，博士生导师，从事矿山生态修复研究. E-mail：ylbi88@126.com

中图分类号: TD824.8；P642.16
计量
- 文章访问数: 207
- HTML全文浏览量: 20
- PDF下载量: 34
- 被引次数: 0
出版历程
- 收稿日期: 2022-07-30
- 修回日期: 2022-09-21
- 刊出日期: 2022-12-25
- 网络出版日期: 2022-12-02

Experimental study on effect of soil layer reconstruction and inoculation on plant root hydraulic lift in open-pit coal mine dump

1.
Institute of Ecological Environment Restoration in Mine Area of West China, Xi’an University of Science and Technology, Xi’an 710054, China
2.
Institute of Mine Ecological Restoration, China University of Mining and Technology (Beijing), Beijing 100083, China)

摘要

摘要: 露天煤矿排土场土层重构对于生态重建具有重要意义，为研究接种深色有隔内生真菌(dark septate endophytes, DSE)对不同重构土层模式下玉米根系水分的利用效应，采用土柱模拟培养试验，设置4种类型土层处理，每种土层类型下设置接菌及对照处理，共8组处理。结果表明：掺黄土20%处理下玉米根长密度最大，分别为掺黄土0%、10%和40%的3.2、2.4、2.8倍，水分胁迫后根系具有向下生长、吸取深层水分的能力；基于δ¹⁸O值的MixSIAR模型水源分析，掺黄土0%处理下玉米主要利用0~25 cm处的水分，水分利用效率达到80%；掺黄土10 %处理下玉米主要利用15~35 cm处的水分，水分利用效率达到64%；而掺黄土20%处理下玉米对0~25 cm处的水分利用效率仅为36%，对25~45 cm处水分利用率达到64%，说明掺黄土20%处理下玉米主要利用土壤深层水分。接种DSE提高了植物吸收更深层水的能力，掺黄土20%处理下水分利用深度向下增加了5 cm，掺黄土20%基质中接菌处理在干旱胁迫后植物根系提水量达到最大，生长期总提水量较不接菌处理提升了45%；在不接菌条件下掺黄土20%植物根系提水量是掺黄土0%的1.45倍，而在接菌条件下掺黄土20%植物根系提水量可达到掺黄土0%的1.72倍。综上认为，接种DSE及土层重构均对提升植物提水能力具有显著作用。此外，本研究结果对露天矿区排土场土层重构过程中土壤改良及植物的水分利用效率提供实验参考依据。
- 露天煤矿 /
- 根系提水作用 /
- DSE /
- 重构土层 /
- 水分利用率 /
- 土柱试验
Abstract: Soil layer reconstruction of open-pit coal mine dump is of great significance for ecological reconstruction. In order to study the effect of inoculation of dark septate endophytes (DSE) on water utilization of corn root system under different reconstructed soil layer models, soil column simulating and culturing test was adopted, with DSE inoculation and control treatment set up under each of the four soil layer types, in a total of 8 groups. The results show that the roots of corn are the longest with the maximum density under the treatment with 20% loess, which are 3.2, 2.4 and 2.8 times that of 0%, 10% and 40% loess respectively. After water stress, the root system has the capability to grow downward and absorb deep water. According to the water source analysis of MixSIAR model based on δ¹⁸O value, the water at the depth of 0-25 cm is mainly used by corn at the water utilization ratio of 80% under the treatment with 0% loess, and the water at the depth of 15-35 cm is mainly used by corn at the water utilization ratio of 64% under the treatment with 10% loess. However, the water utilization ratio of corn is 36% at the depth of 0-25 cm only and 64% at the depth of 25-45 cm under the treatment with 20% loess, indicating that the water in deep soil is mainly used by corn under the treatment with 20% loess. The DSE inoculation improves the capability of plants to absorb deeper water. Specifically, the depth of water used increases by 5 cm under the treatment with 20% loess. The hydraulic lift of plant roots is maximized under drought stress through inoculation treatment in the matrix containing 20% loess, with the total hydraulic lift during the growth period increased by 45% compared with that treatment without DSE inoculation. The hydraulic lift of plant roots mixed with 20% loess is 1.45 times that of 0% loess under the condition without DSE inoculation, while the hydraulic lift of plant roots mixed with 20% loess can reach 1.72 times that of 0% loess under the condition with DSE inoculation. In conclusion, DSE inoculation and soil layer reconstruction have significant effects on improving the hydraulic lift of plants. In addition, the results of this study could provide experimental reference basis for the improvement of soil and water utilization efficiency of plants in the process of soil layer reconstruction of open-pit mine dump.
- open-pit coal mine /
- root hydraulic lift /
- DSE /
- soil layer reconstruction /
- water utilization ratio /
- soil column test

HTML全文

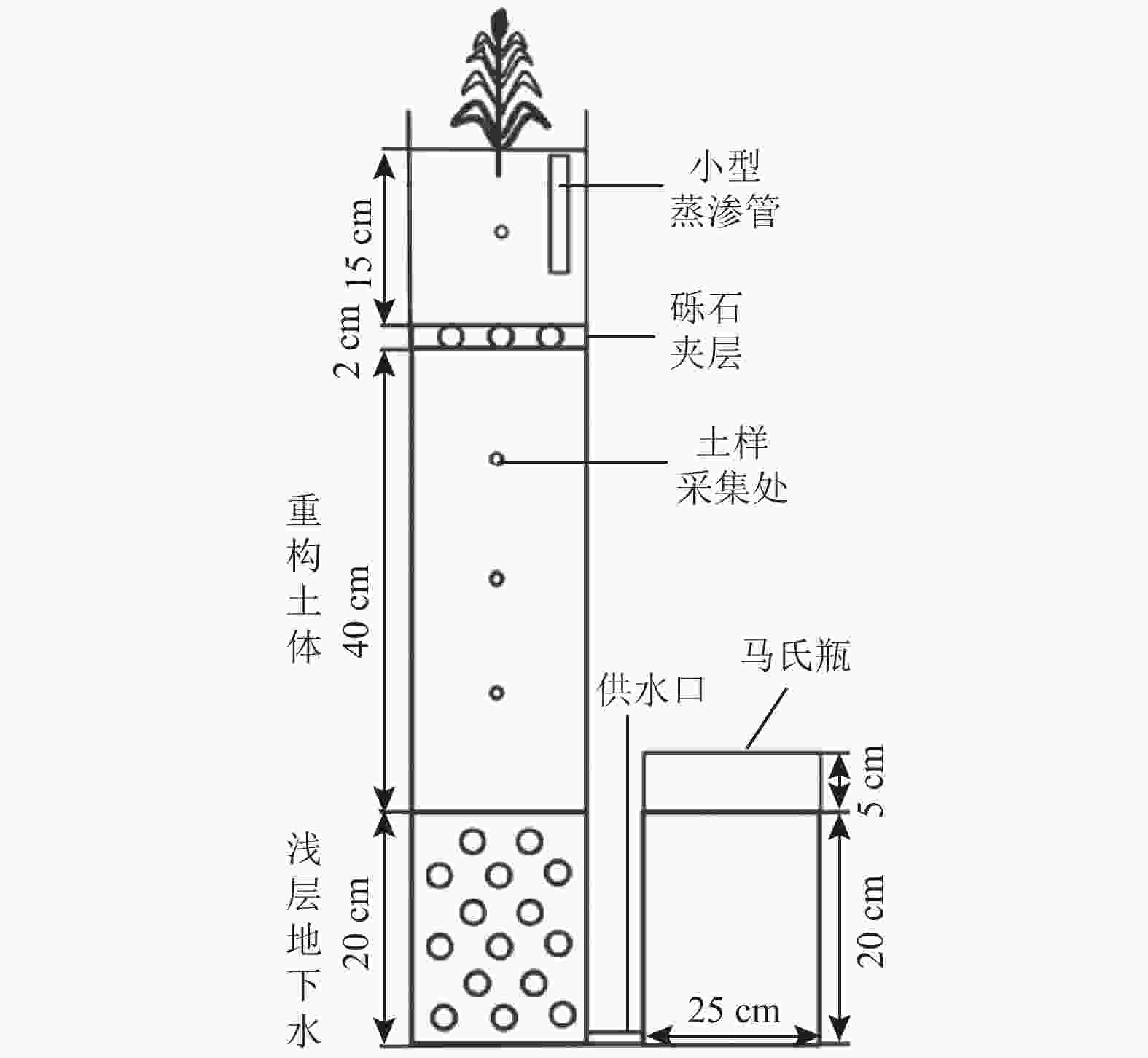

图 1 土柱试验装置

Fig. 1 Soil column test device

下载: 全尺寸图片幻灯片

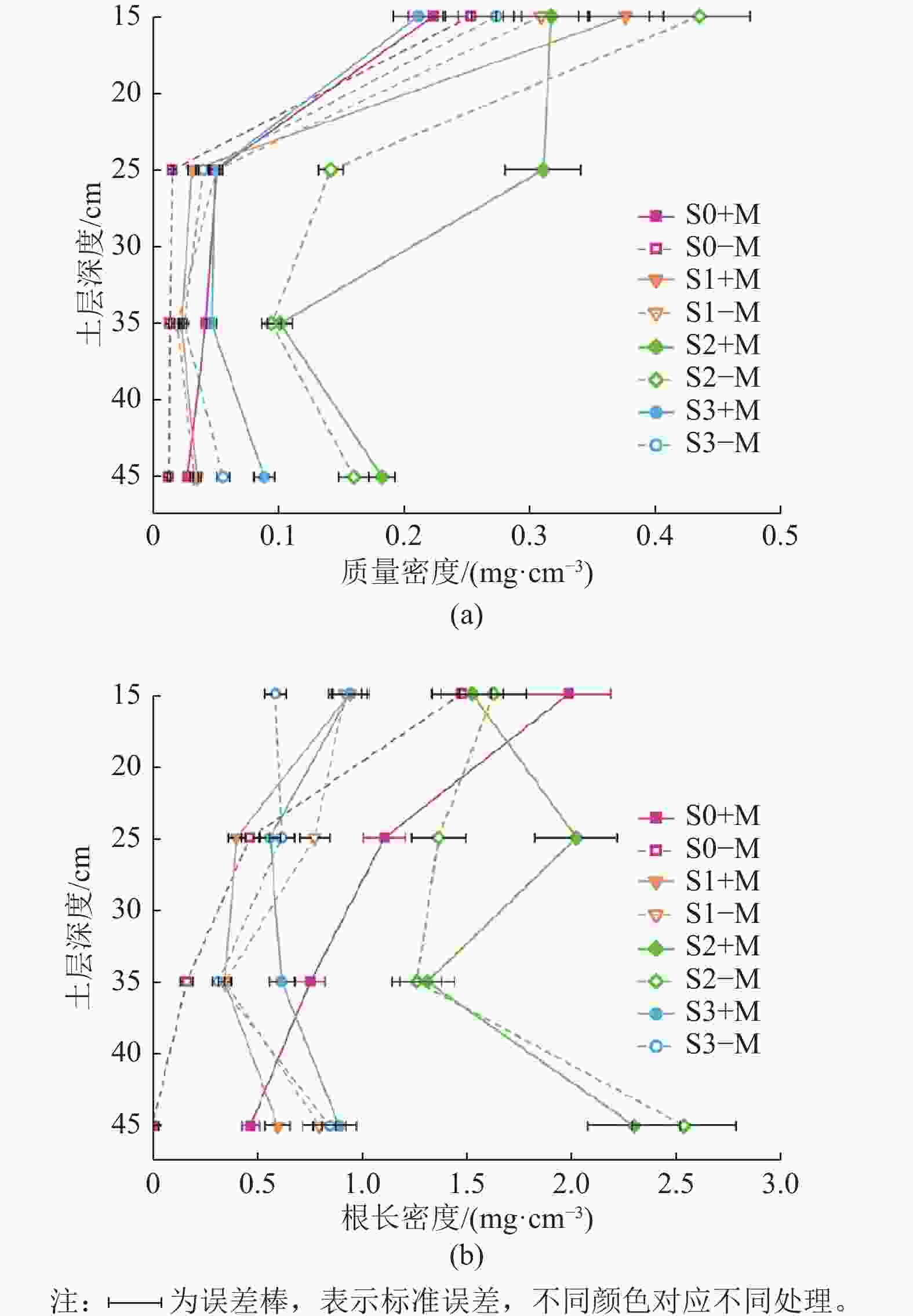

图 2 不同处理各层的根质量密度和根长密度

Fig. 2 Root mass density and root length density in each layer of different treatments

下载: 全尺寸图片幻灯片

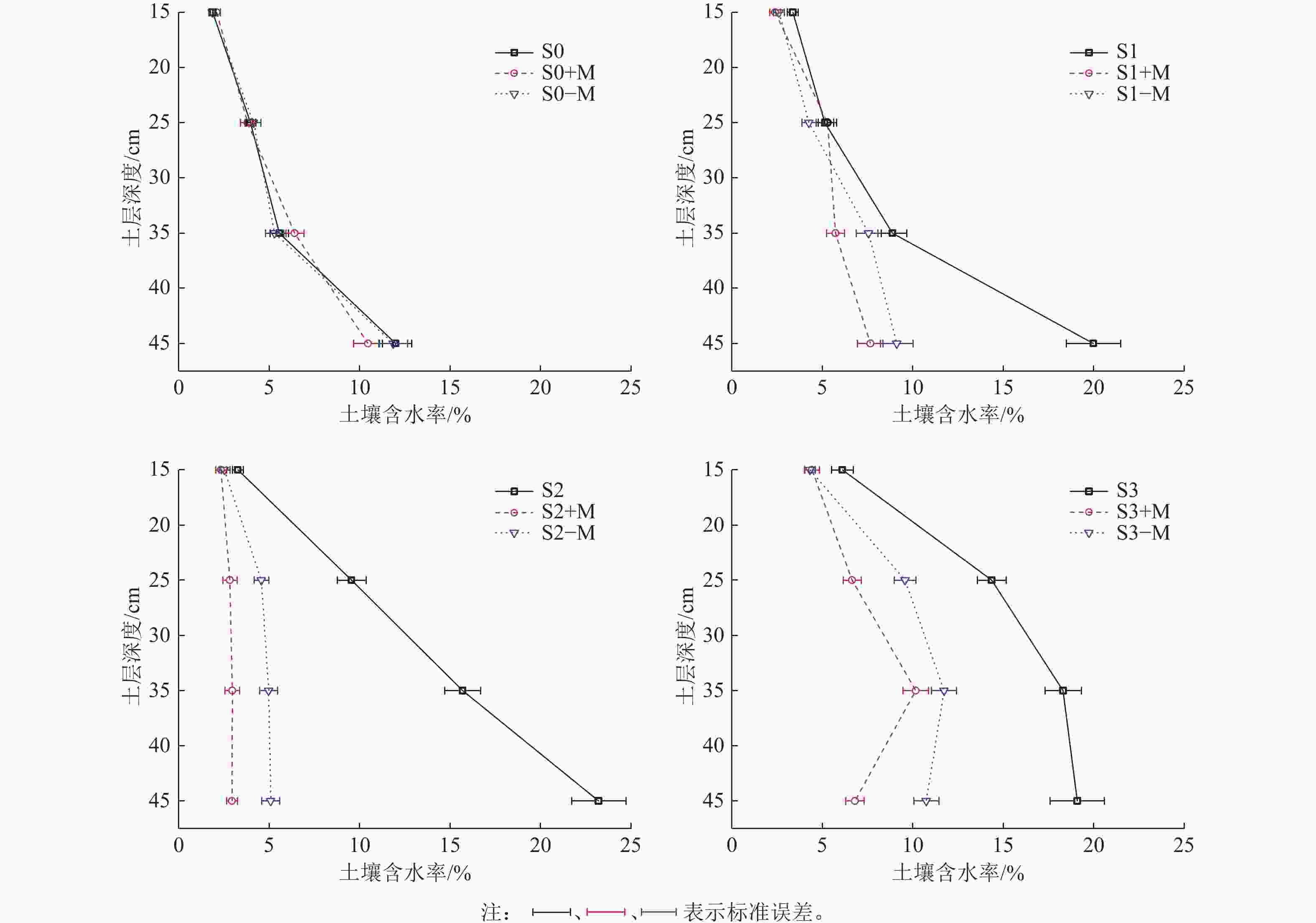

图 3 不同处理土壤最终含水率

Fig. 3 Final soil moisture content for different treatments

下载: 全尺寸图片幻灯片

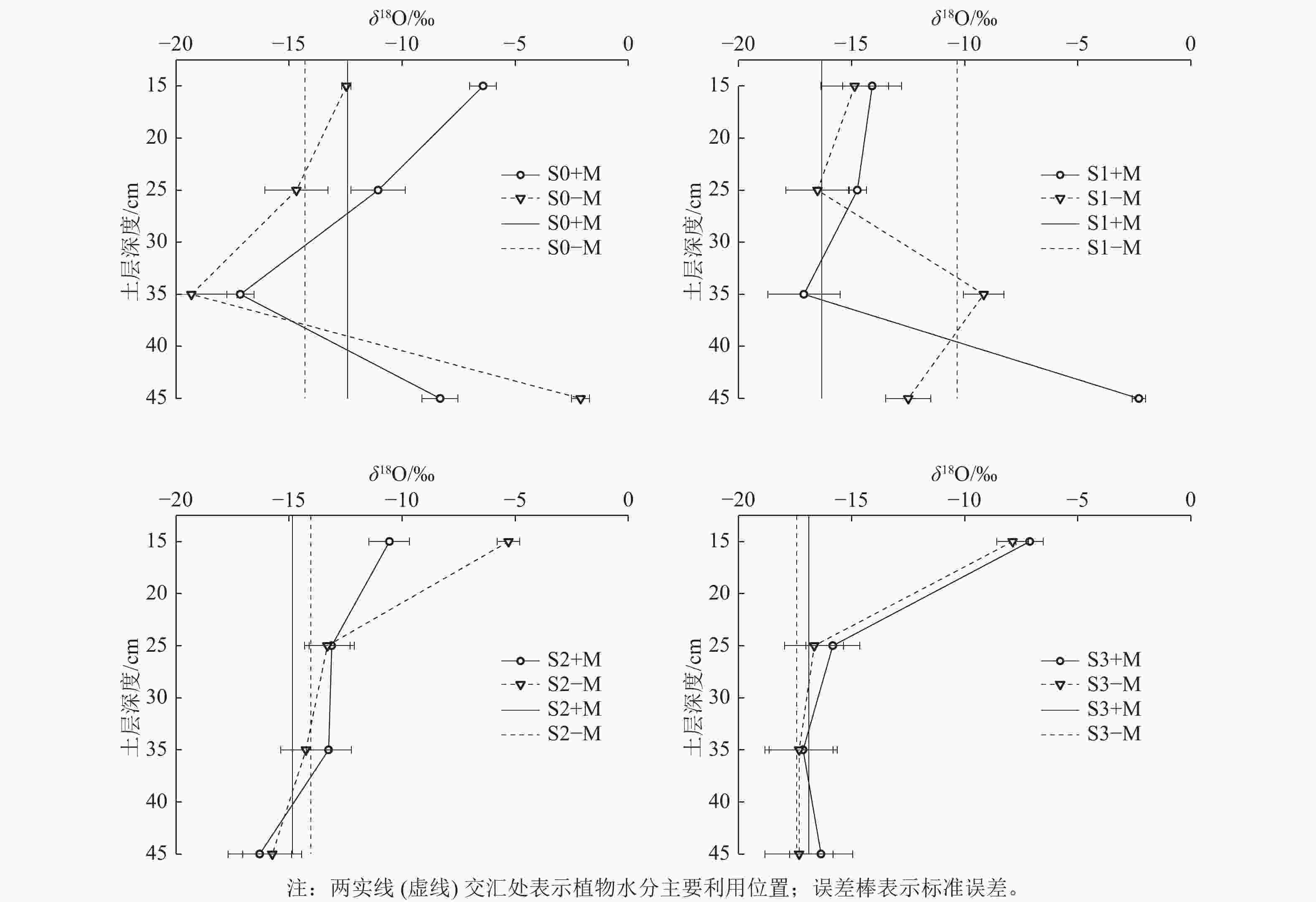

图 4 不同处理玉米水、土壤水中δ¹⁸O的变化

Fig. 4 Changes of δ¹⁸O in corn water and soil water under different treatments

下载: 全尺寸图片幻灯片

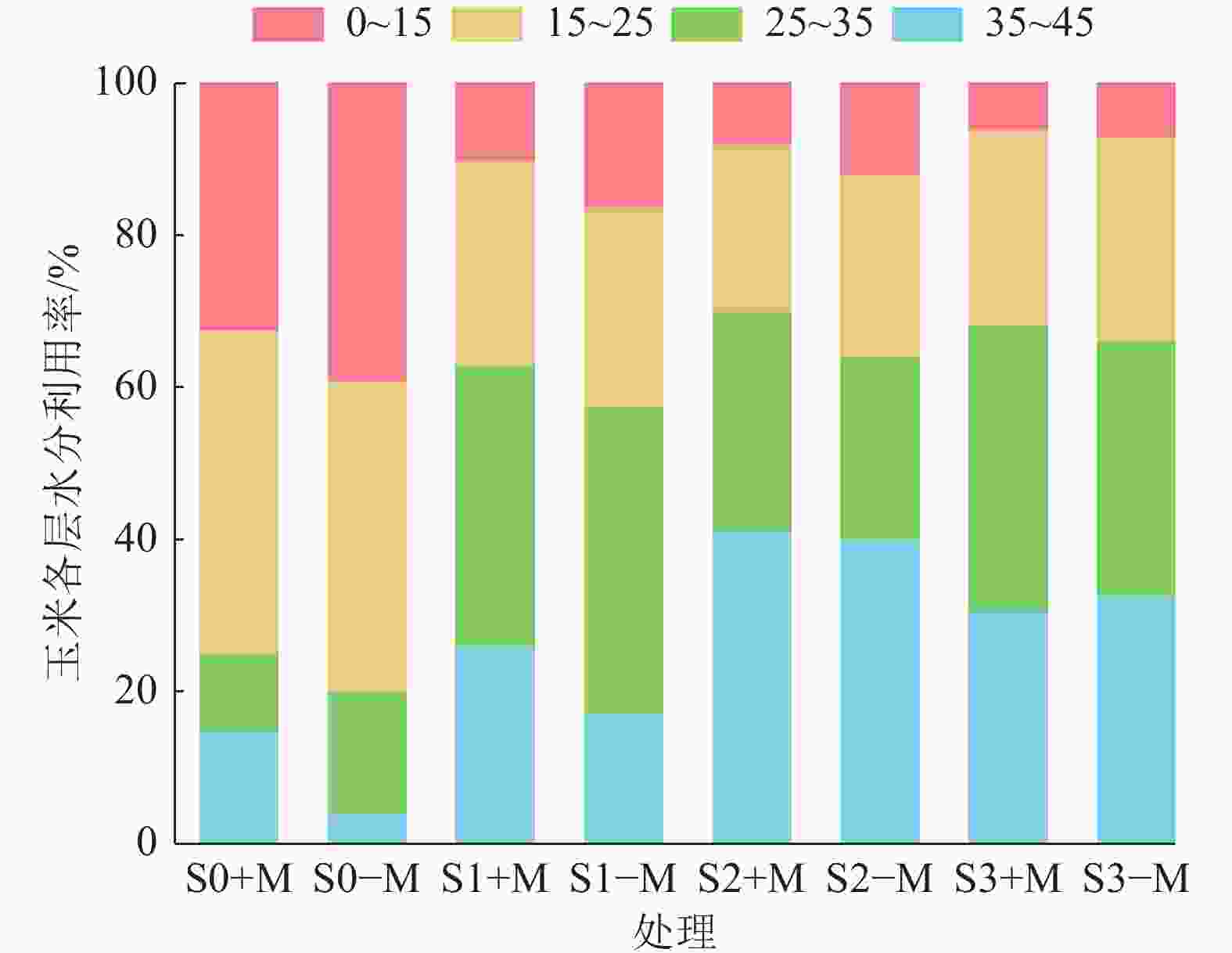

图 5 不同处理玉米对各层水分利用比例

Fig. 5 The water utilization ratio of different maize treatments to each layer

下载: 全尺寸图片幻灯片

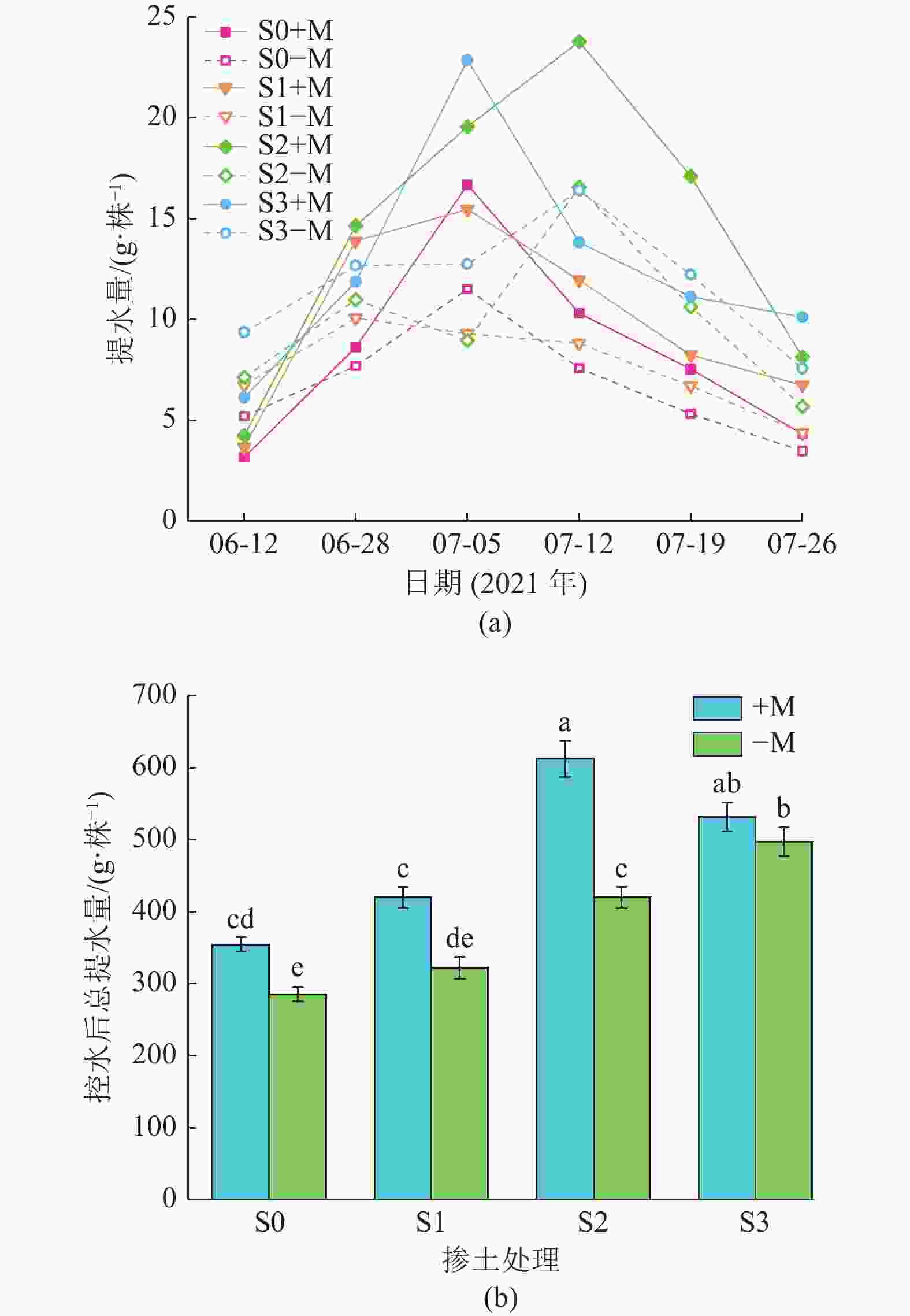

图 6 玉米水分胁迫下提水量

Fig. 6 The amount of water to be lifted under water stress in maize

下载: 全尺寸图片幻灯片

表 1 土壤颗粒机械组成

Table 1 Soil particle size compositions

土质类型	各粒径质量分数/%
土质类型	黏粒 (<0.002 mm)	粉粒 (0.002~0.020 mm)	砂粒 (>0.020 mm)
S0	0.62b	22.53c	72.50a
S1	0.67b	25.42b	70.16ab
S2	0.76b	27.16b	68.26b
S3	1.35a	36.93a	60.48c
注：同列数字后的字母不相同表示0.05水平上差异显著。

下载: 导出CSV

表 2 玉米地上部分各指标统计

Table 2 Statistical table of each index of maize above ground

处理方式	株高/cm	茎粗/cm	鲜重/g	干重/g	全氮质量分数/%	全磷质量分数/%	侵染率/%
S0+M	81±6.0c	6±0.52cd	16.6±1.2d	2.5±0.08c	1.8±0.06d	0.69±0.02d	42.46
S0−M	70±4.9d	5.3±0.17d	7.0±0.8e	1.2±0.06d	1.1±0.04e	0.57±0.01e
S1+M	112±7.2b	7.2±0.93ab	29.8±1.2ab	4.5±0.11b	3.6±0.09ab	0.81±0.02bc	26.50
S1−M	105±6.5b	6.9±0.65bc	26.7±1.3b	4.2±0.09b	3.5±0.12bc	0.77±0.02c
S2+M	124±4.0a	8.3±0.47a	38.0±1.8a	6.5±0.15a	4.1±0.15a	0.86±0.04a	28.47
S2−M	115±2.1ab	8.2±0.25a	32.6±1.6ab	6.2±0.20a	4.1±0.10a	0.86±0.02a
S3+M	111±6.8b	8.1±0.87a	34.0±1.4ab	5.3±0.15ab	3.6±0.08ab	0.82±0.03ab	25.40
S3−M	109±4.5b	7.8±0.22ab	31.2±1.5ab	4.6±0.13b	3.0±0.06c	0.81±0.01bc
S	***	***	***	***	***	***
M	**	Ns	*	*	**	***
SM	Ns	Ns	Ns	Ns	Ns	**
注：S代表重构土层；M代表接菌；Ns代表显著性水平P≥0.05；代表P<0.05；代表 P<0.01；**代表 P<0.001；同列的字母不相同表示0.05水平上差异显著。

下载: 导出CSV

表 3 不同处理各层3个等级根的根长密度百分比统计

Table 3 Statistical table of root length density percentage of three grades of roots in different treatments

根类型	深度/cm	根长密度百分比/%
根类型	深度/cm	S0+M	S0−M	S1+M	S1−M	S2+M	S2−M	S3+M	S3−M
三级根	0~15	58	57	51	46	55	54	46	48
	15~25	52	56	55	60	62	61	60	54
	25~35	56	55	60	60	66	63	52	50
	35~45	52	0	58	39	59	59	62	59
次根	0~15	24	25	26	29	24	25	32	26
	15~25	26	29	29	25	21	21	27	36
	25~35	29	32	26	27	20	23	30	44
	35~45	32	0	24	44	25	24	27	30
主根	0~15	18	18	23	25	21	21	22	26
	15~25	22	15	16	15	17	18	13	10
	25~35	15	13	14	13	14	14	18	6
	35~45	16	0	18	17	16	17	11	11

下载: 导出CSV
