矿用钻孔超声流量自适应检测技术

代晨昱 赵朋朋 徐晶

代晨昱,赵朋朋,徐晶.矿用钻孔超声流量自适应检测技术[J].煤田地质与勘探,2022,50(1):59−65. doi: 10.12363/issn.1001-1986.21.11.0607
引用本文: 代晨昱,赵朋朋,徐晶.矿用钻孔超声流量自适应检测技术[J].煤田地质与勘探,2022,50(1):59−65. doi: 10.12363/issn.1001-1986.21.11.0607
DAI Chenyu,ZHAO Pengpeng,XU Jing.The adaptive detection technology of ultrasonic flow in mining boreholes[J].Coal Geology & Exploration,2022,50(1):59−65. doi: 10.12363/issn.1001-1986.21.11.0607
Citation: DAI Chenyu,ZHAO Pengpeng,XU Jing.The adaptive detection technology of ultrasonic flow in mining boreholes[J].Coal Geology & Exploration,2022,50(1):59−65. doi: 10.12363/issn.1001-1986.21.11.0607

矿用钻孔超声流量自适应检测技术

doi: 10.12363/issn.1001-1986.21.11.0607
基金项目: 中煤科工集团西安研究院有限公司科技创新项目(2019XAYMS09)
详细信息
    第一作者:

    代晨昱,1987年生,男,浙江宁波人,硕士,助理研究员,从事煤炭矿用地球物理勘探设备研究工作. E-mail:daichenyu@cctegxian.com

  • 中图分类号: P631

The adaptive detection technology of ultrasonic flow in mining boreholes

  • 摘要: 为了更好地实现煤矿井下瓦斯抽采钻孔端流量监测,针对管路内介质成分复杂、纯净度差、稳定性差等因素对抽采流量参数测量准确性影响的问题,提出以时差法为测量原理,以双阈值比较法为检测方法,设计了一套矿用钻孔超声流量自适应检测系统。通过分析影响双阈值比较法测量准确性的关键问题出发,设计了检测系统的总体方案,并对其中激励信号放大电路、接收信号调理电路及由峰值检波电路与增益控制电路构成的自适应电路几项关键模块进行了详细地介绍,叙述了检测系统运行软件的工作流程。通过工况环境适应能力测试与准确度性能检验,对检测系统的功能与性能进行了检验,检验结果表明,该系统能够适应瓦斯抽采钻孔管路内的工况需求,实现高精度的气体流量测量。

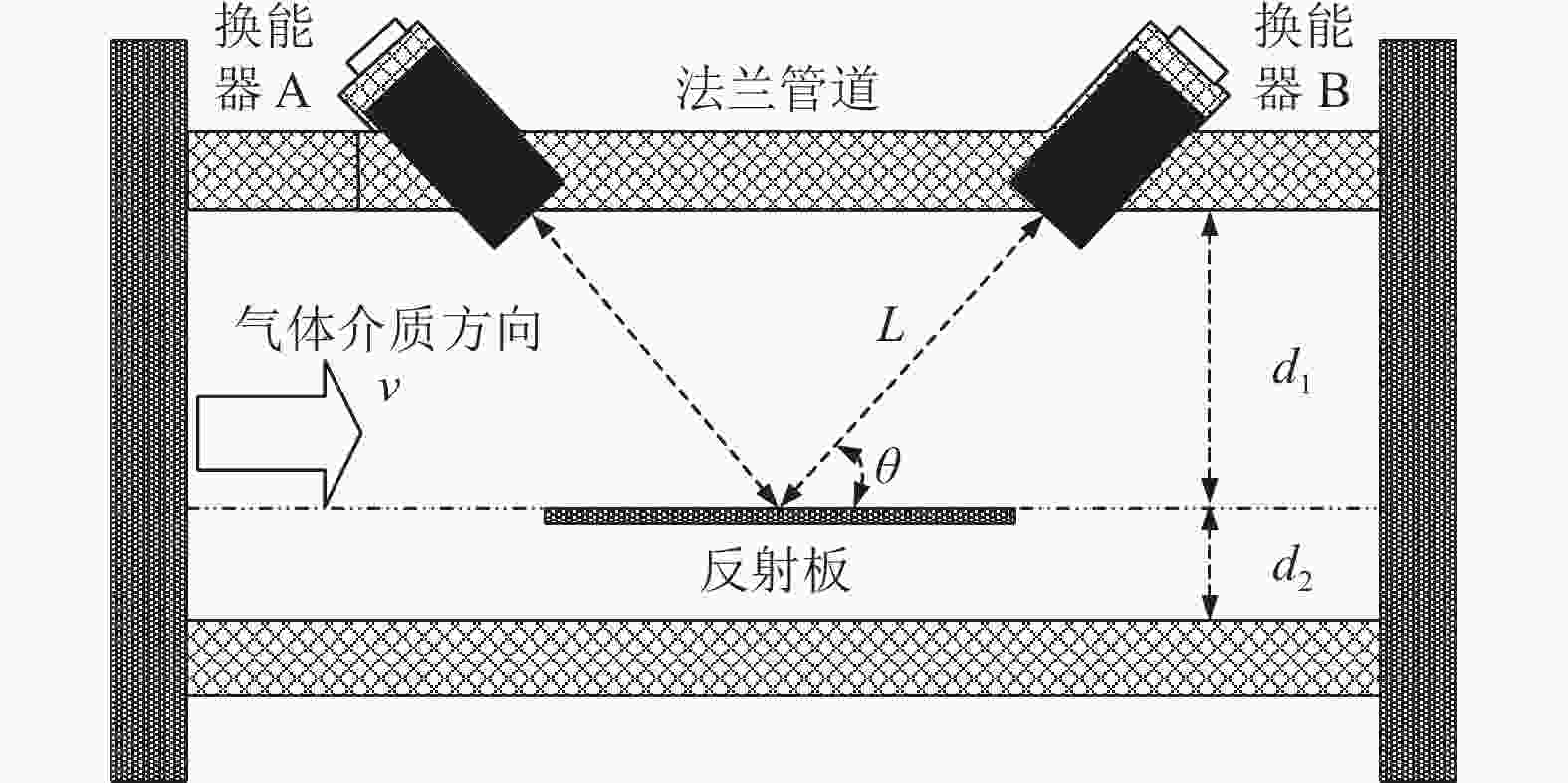

  • 图  超声波时差法原理

    Fig. 1  Schematic diagram of the ultrasonic time difference method

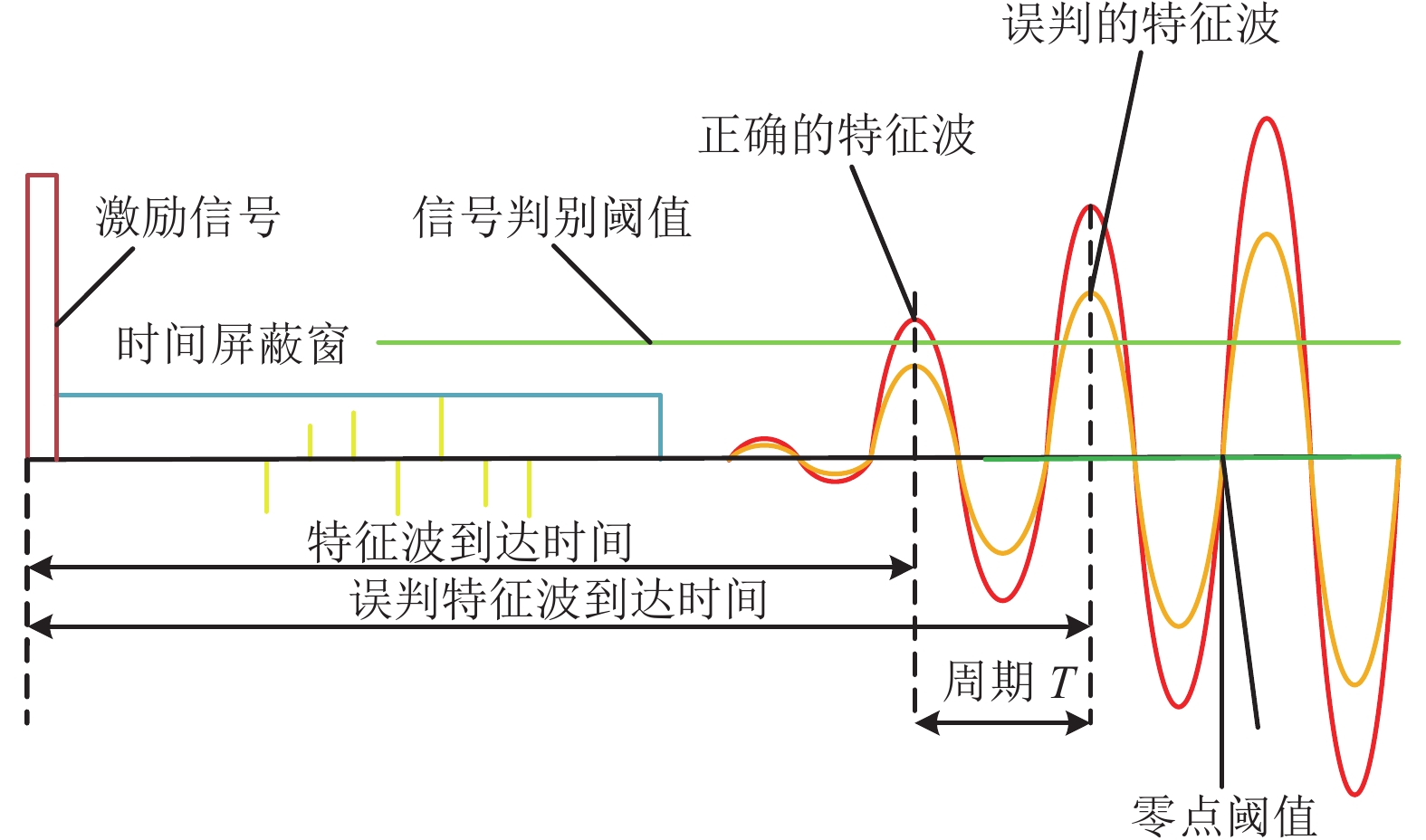

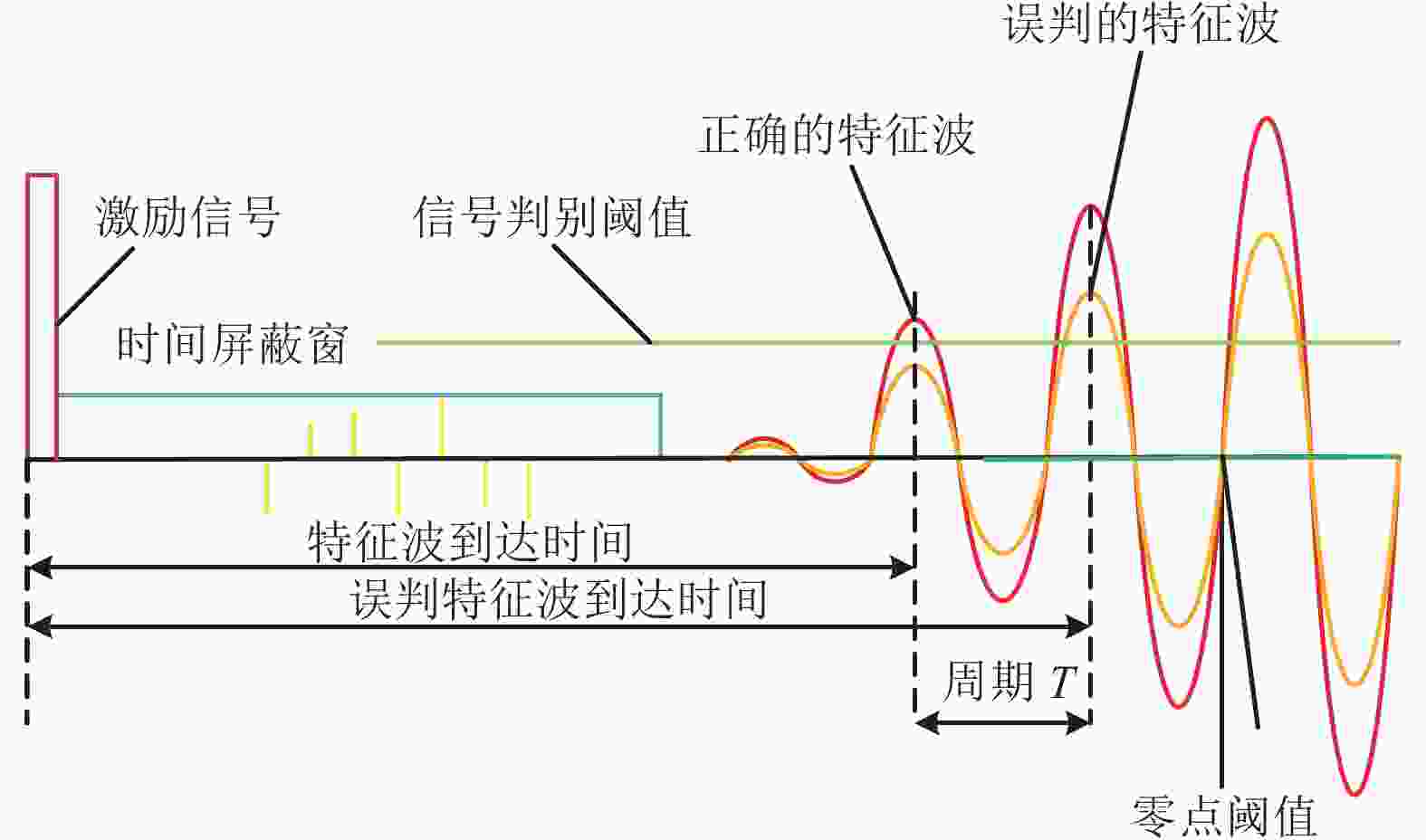

    图  超声波时差法检测方法

    Fig. 2  Ultrasonic time difference detection method

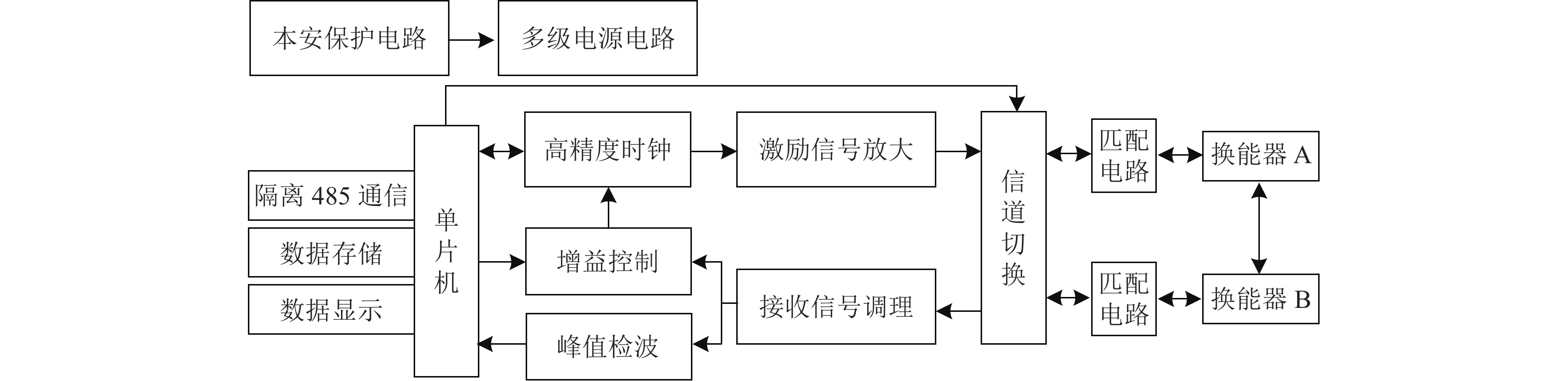

    图  硬件系统设计框图

    Fig. 3  Hardware system design block diagram

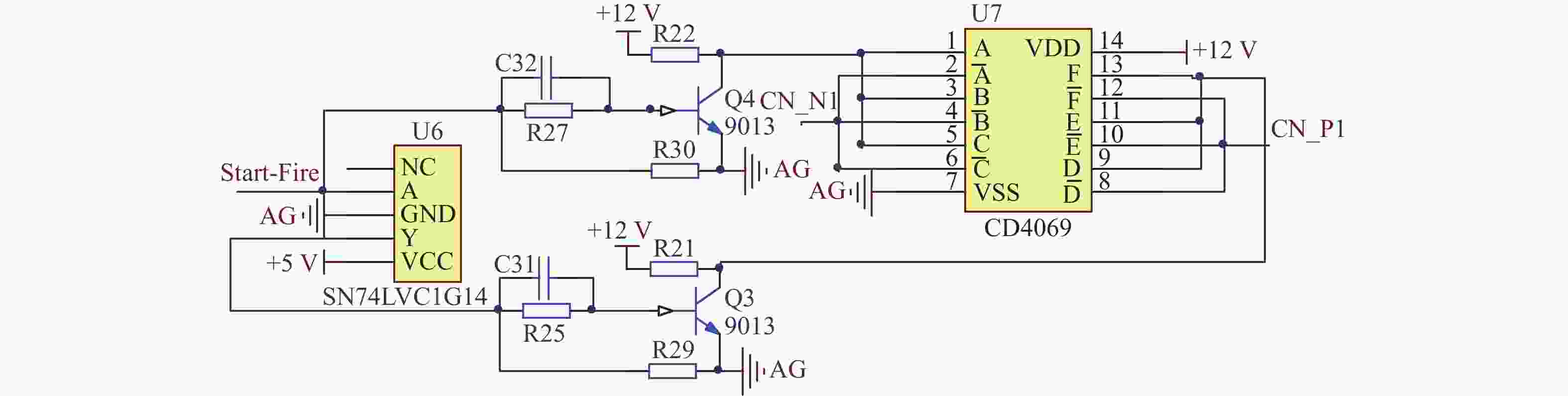

    图  激励信号放大电路设计

    Fig. 4  Excitation signal amplification circuit design

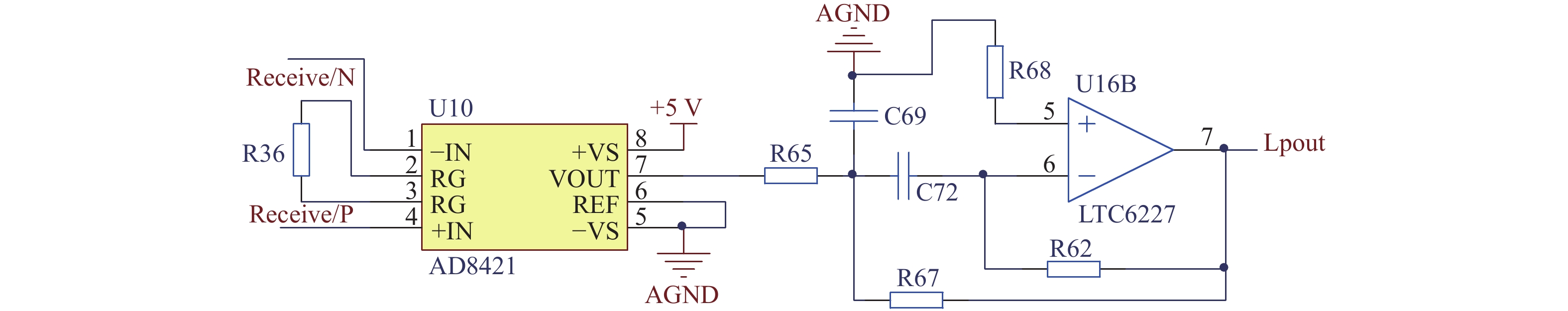

    图  接收信号调理电路

    Fig. 5  Received signal conditioning circuit

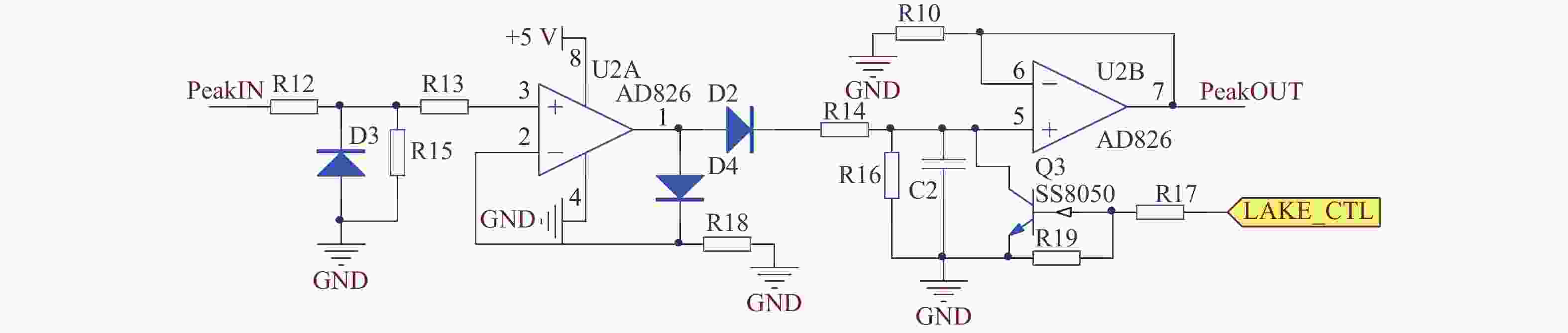

    图  峰值检波电路

    Fig. 6  Peak detection circuit

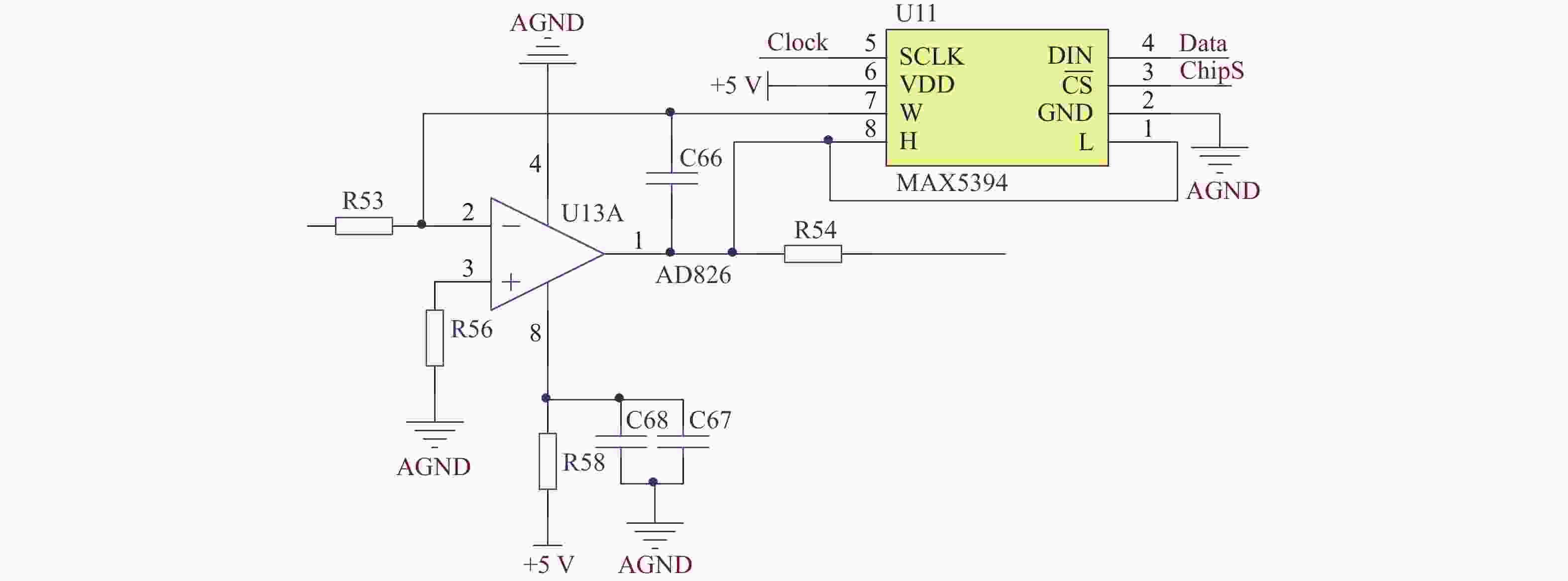

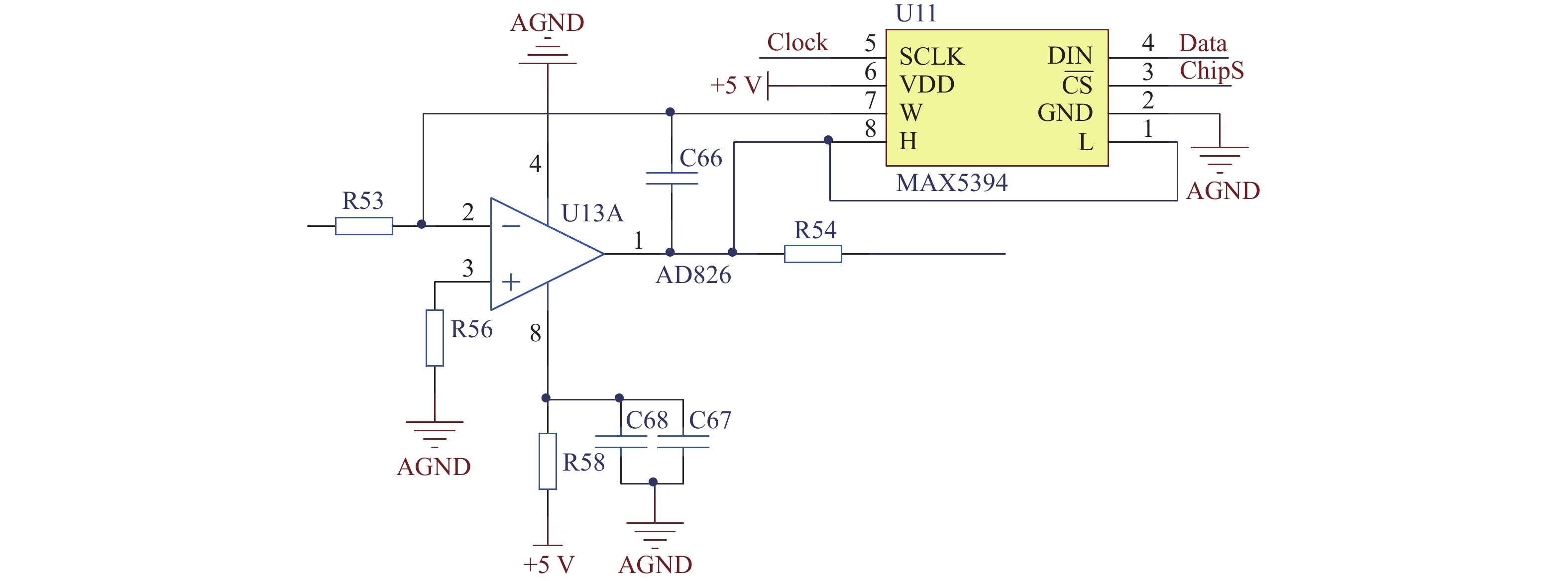

    图  增益控制电路

    Fig. 7  Gain control circuit

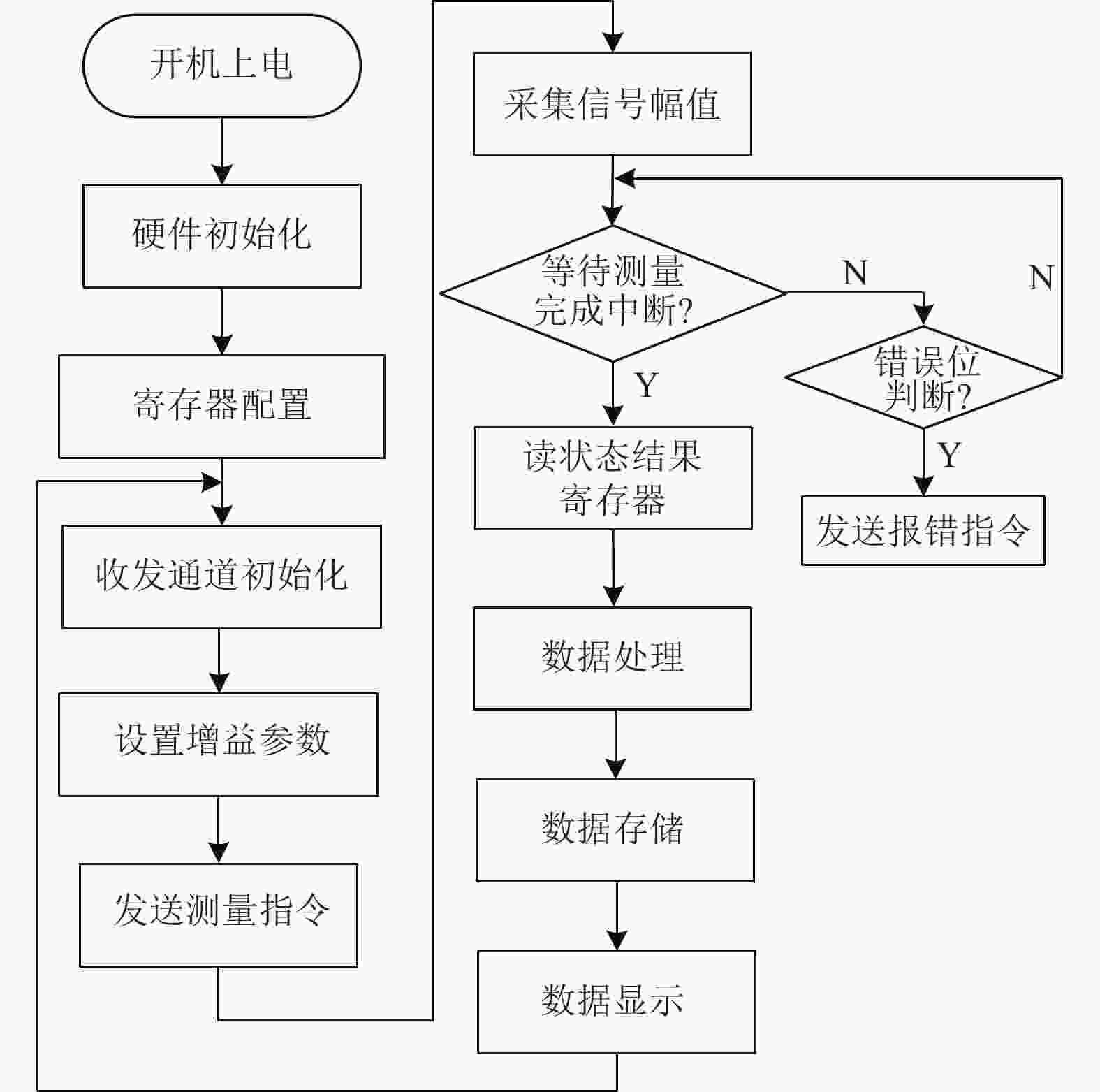

    图  软件系统工作流程

    Fig. 8  Software system flowchart

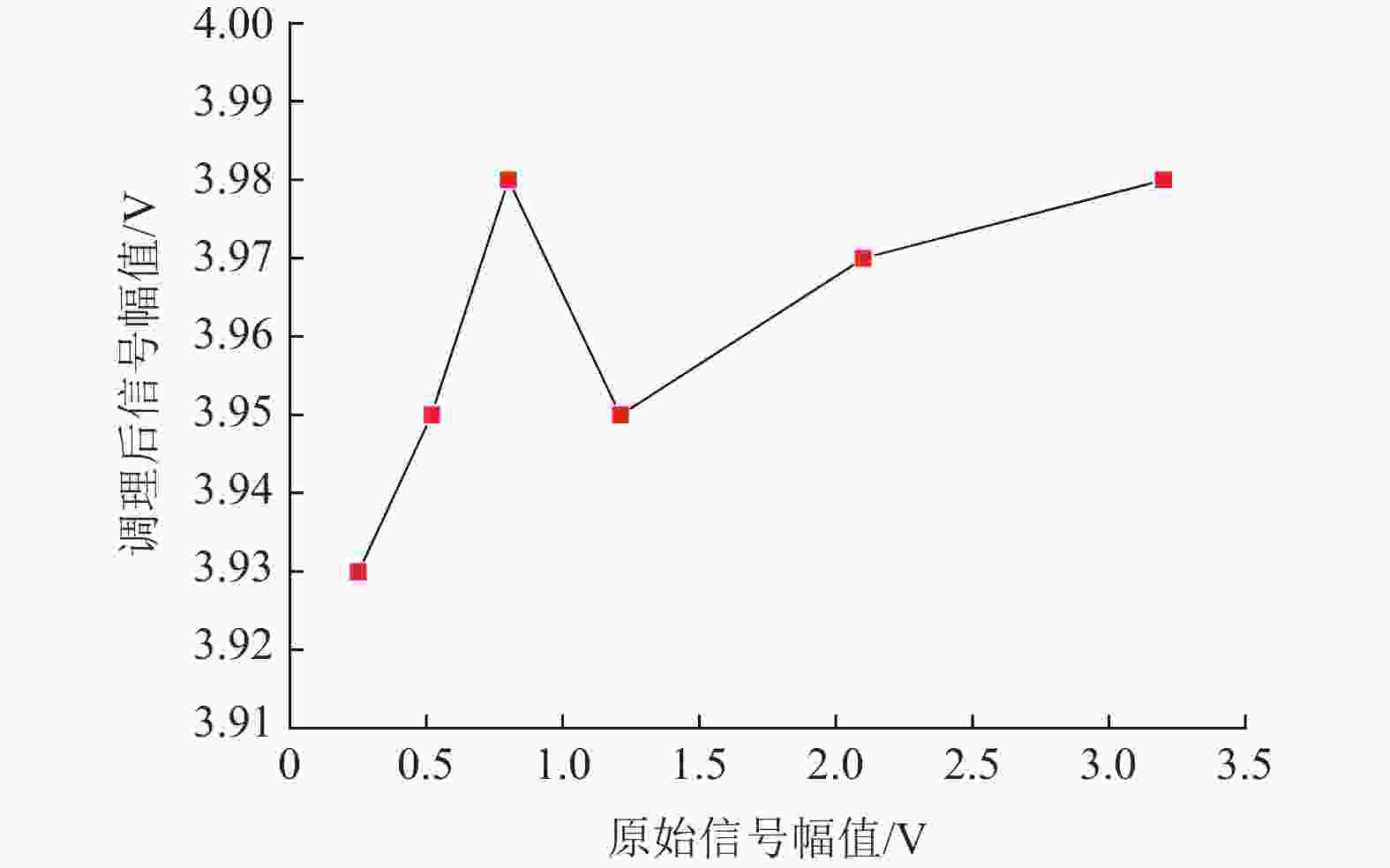

    图  工况环境适应能力测试结果

    Fig. 9  Test results of environmental adaptability under working conditions

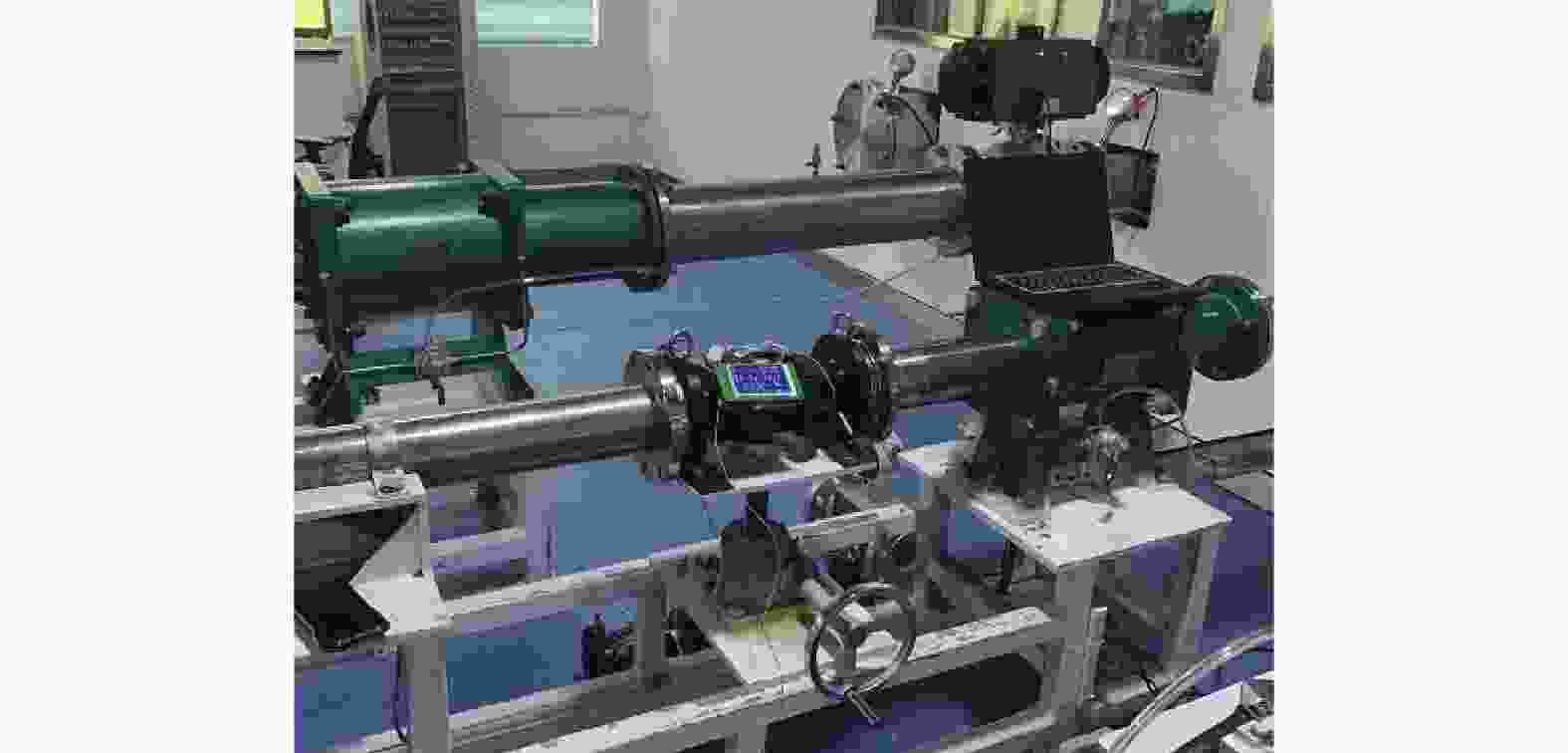

    图  10  检验现场环境

    Fig. 10  Test site environment

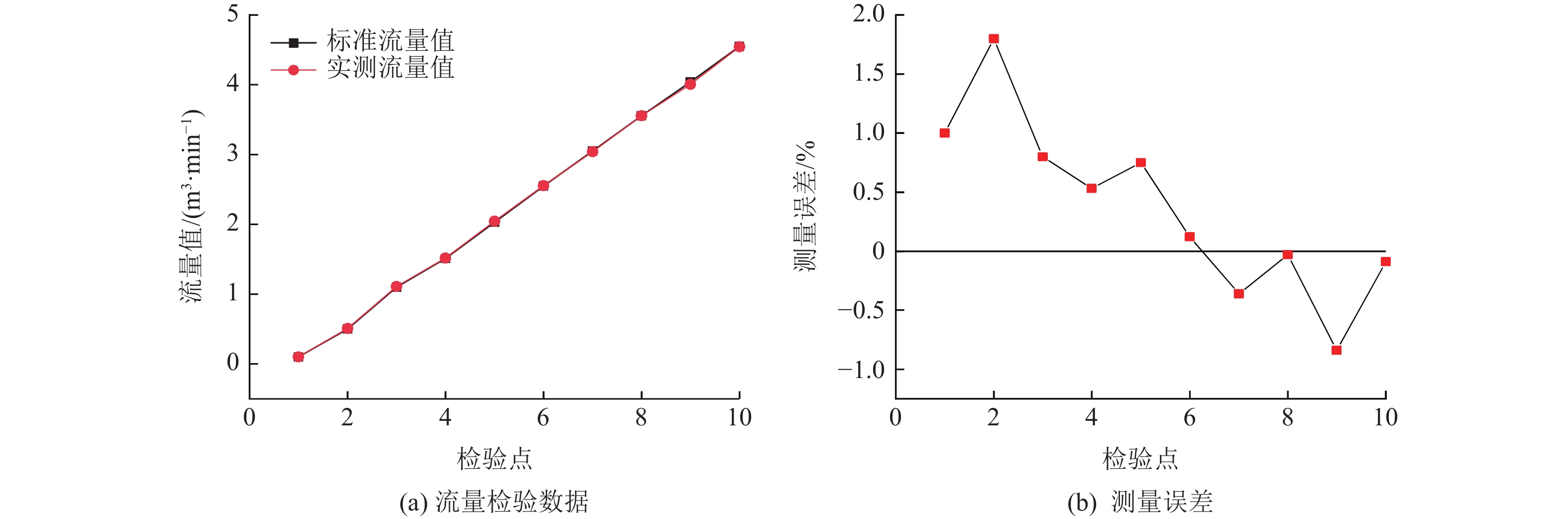

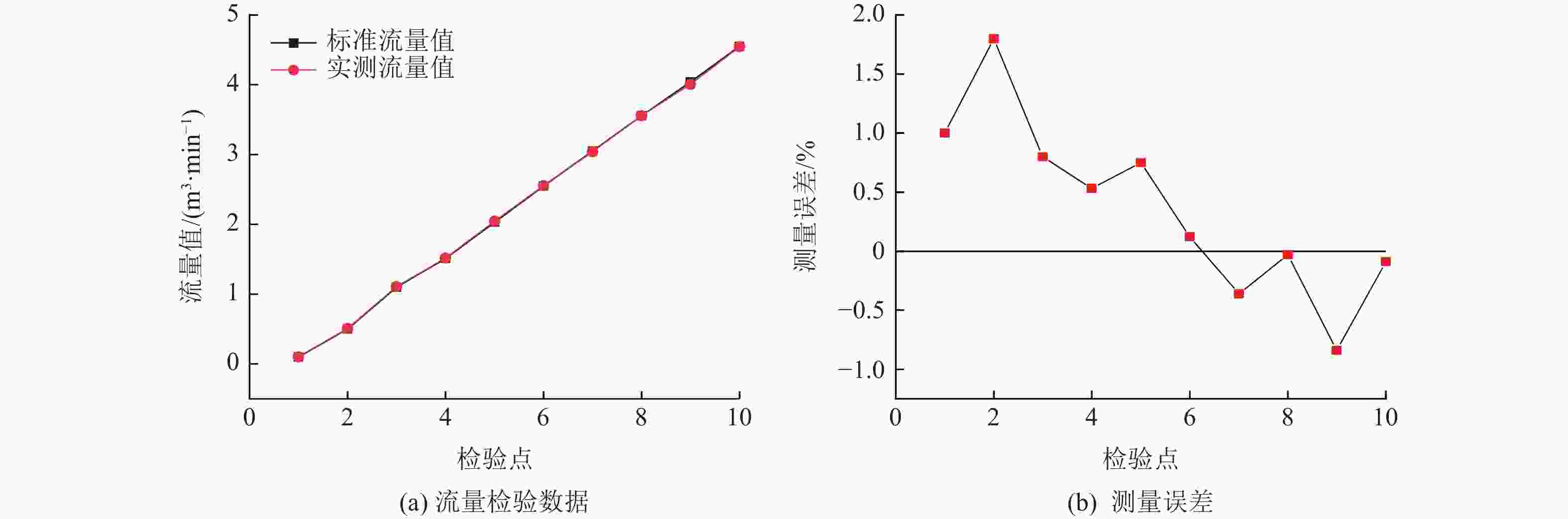

    图  11  准确性能检验结果

    Fig. 11  Accurate performance test results

  • [1] 宁小亮. 煤与瓦斯突出预警技术研究现状及发展趋势[J]. 工矿自动化,2019,45(8):25−31.

    NING Xiaoliang. Research status of early warning technology of coal and gas outburst and its development trend[J]. Industry and Mine Automation,2019,45(8):25−31.
    [2] 国家安全生产监督管理总局机关子站.关于印发《煤矿瓦斯抽采达标暂行规定》的通知安监总煤装[2011]163号[S].北京: 国家安全生产监督管理总局, 2011.
    [3] 赵华. 煤矿瓦斯防治技术的现状与问题[J]. 内蒙古煤炭经济,2021,38(6):109−110.. doi: 10.3969/j.issn.1008-0155.2021.06.053

    ZHAO Hua. Present situation and problems of coal mine gas prevention and control technology[J]. Inner Mongolia Coal Economy,2021,38(6):109−110.. doi: 10.3969/j.issn.1008-0155.2021.06.053
    [4] 徐永忠. 煤矿瓦斯防治技术研究[J]. 当代化工研究,2020,20(9):155−156.. doi: 10.3969/j.issn.1672-8114.2020.09.075

    XU Yongzhong. Research on coal mine gas control technology[J]. Modern Chemical Research,2020,20(9):155−156.. doi: 10.3969/j.issn.1672-8114.2020.09.075
    [5] 乔鑫. 定向长钻孔消除工作面抽采空白带技术应用[J]. 煤炭技术,2021,40(12):149−152.

    QIAO Xin. Application of directional long borehole to eliminate blank zone of working face[J]. Coal Technology,2021,40(12):149−152.
    [6] 张亚潮,杨乐乐,窦成义,等. 高瓦斯工作面定向长钻孔以孔代巷瓦斯抽采技术[J]. 陕西煤炭,2021,40(6):1−7.. doi: 10.3969/j.issn.1671-749X.2021.06.001

    ZHANG Yachao,YANG Lele,DOU Chengyi,et al. Gas extraction technology of directional long borehole instead of roadway in working face with high gas[J]. Shaanxi Coal,2021,40(6):1−7.. doi: 10.3969/j.issn.1671-749X.2021.06.001
    [7] 牛朝亮. 论国内煤矿瓦斯监测监控系统现状与发展[J]. 能源与节能,2016,20(2):113−114.. doi: 10.3969/j.issn.2095-0802.2016.02.053

    NIU Chaoliang. Discussion on the current situation and development of gas monitoring and control system in the domestic coal mine[J]. Energy and Energy Conservation,2016,20(2):113−114.. doi: 10.3969/j.issn.2095-0802.2016.02.053
    [8] 许文达.涡街与V锥流量计在蒸汽计量中的特性研究[D].天津: 天津大学, 2013.

    XU Wenda.Research on characteristics of vortex and V–cone flowmeter in the steam measurement[D].Tianjin: Tianjin University, 2013.
    [9] 李涛. 煤矿管道瓦斯流量计量技术研究[J]. 工矿自动化,2012,39(11):14−17.

    LI Tao. Research of metering technology of pipeline gas flow of coal mine[J]. Industry and Mine Automation,2012,39(11):14−17.
    [10] 刘春峰,杨凌霄. 孔板流量计在煤矿瓦斯抽采计量中的应用及常见问题分析[J]. 煤矿安全,2017,48(11):175−178.

    LIU Chunfeng,YANG Lingxiao. Application of qrifice plate flowmeter in coal mine gas drainage measurement and analysis of common problems[J]. Safety in Coal Mines,2017,48(11):175−178.
    [11] 闫井超. 天然气流量计类型与计量精度影响分析[J]. 石化技术,2017,29(1):163−164.

    YAN Jingchao. Analysis on the influence of natural gas flowmeter type and metering accuracy[J]. Petrochemical Industry Technology,2017,29(1):163−164.
    [12] 刘阳.超声波流量检测技术研究[D].西安: 西安石油大学, 2017.

    LIU Yang.Study of ultrasonic flow measurement technique methods[D].Xi’an: Xi’an Shiyou University, 2017.
    [13] 马建,李泽芳,张德胜. 基于超声波时差法的管道流量测定仪设计[J]. 工矿自动化,2021,47(2):93−97.

    MA Jian,LI Zefang,ZHANG Desheng. Design of pipeline flow meter based on ultrasonic time difference method[J]. Industry and Mine Automation,2021,47(2):93−97.
    [14] 黎裕熙.基于结构与流场分析的超声波流量计结构设计[D].杭州: 浙江大学, 2015.

    LI Yuxi.Ultrasonic flowmeter structure design based on structure and flow field analysis[D].Hangzhou: Zhejiang University, 2015.
    [15] 郭心伟.优化结构改善气体超声波流量计流场适应性的相关研究[D].济南: 山东大学, 2021.

    GUO Xinwei.Study on optimizing structure to improve flow field adaptability of gas ultrasonic flowmeter[D].Jinan: Shandong University, 2021.
    [16] 虞结勇.超声波气体流量计信号处理方法研究[D].杭州: 中国计量大学, 2018.

    YU Jieyong.Research on signal processing method of ultrasonic gas flowmeter[D].Hangzhou: China Jiliang University, 2018.
    [17] 杜晓泽,刘胜祥. 时差法超声波流量计流量系数影响因素分析[J]. 工业计量,2019,29(2):14−15.

    DU Xiaoze,LIU Shengxiang. Analysis of factors affecting flow coefficient of time difference ultrasonic flowmeter[J]. Industrial Metrology,2019,29(2):14−15.
    [18] 刘金.超声波在非均匀气固两相介质中的传播特性研究[D].南京: 南京理工大学, 2019.

    LIU Jin.Propagation characteristics of ultrasound in non–uniform gas–solid two–phase medium[D]. Nanjing: Nanjing University of Science & Technology, 2019.
    [19] 冯亚峰,钱素琴,孔建会. 一种窄脉冲峰值电压检测保持电路的研究[J]. 仪表技术,2017(7):5−7.

    FENG Yafeng,QIAN Suqin,KONG Jianhui. Research on a narrow pulse peak voltage detection and hold circuit[J]. Instrumentation Technology,2017(7):5−7.
    [20] 全国流量容量计量技术委员会.中华人民共和国国家计量检定规程: 超声流量计: JJG 1030—2007[S].北京: 国家质量监督检验检疫总局, 2007.
