Application of microseismic monitoring in the optimization of control strategy for roofs composed of composite hard sandstone masses
-
摘要:目的
随着我国煤炭开采深度不断增加，上覆厚层坚硬岩层运动对矿压的影响愈加复杂，而鄂尔多斯矿井多数工作面上覆岩层赋存复合坚硬砂岩体，该类型关键层特点是厚、硬、近，这导致工作面矿震与动力显现风险并存。
方法以鄂尔多斯地区某矿11-3106工作面为工程背景，基于微震聚集演化特征，采用理论分析和数值模拟的方法，对复合坚硬砂岩体顶板破断裂隙发育进行了研究，探讨了复合坚硬砂岩体顶板控制措施。
结果和结论研究结果表明：(1)随着工作面的推采，上覆复合坚硬砂岩体在微震显著聚集区域发生破断，并可基于微震聚集特征演化规律来判识复合坚硬砂岩体的断裂位置，该工作面微震聚集高密度区呈现“高频率−高能量”的特征，并出现区域峰值大能量事件；(2) 11-3106工作面在推采至一次见方和二次见方附近，复合坚硬砂岩体呈现2~3个小周期和1个大周期的破断特征，微震聚集在工作面走向方向动态变化；(3)基于微震聚集演化特征，优化了深孔预裂爆破的破断步距，回风巷微震聚集程度显著减少，采动影响范围缩小，效果显著。根据工作面微震聚集特征演化的复合坚硬砂岩体动态迁移现象，对复合坚硬砂岩体顶板控制措施进行优化，对鄂尔多斯矿区相似覆岩结构的工作面的顶板防治具有参考意义。
Abstract:ObjectiveWith a gradual increase in the coal mining depth in China, the movement of overlying thick and hard rock layers exerts increasingly complex impacts on the mine pressure.
MethodsIn the Ordos area, the overburden of the mining face of most mines hosts composite hard sandstone masses, serving as key layers characterized by considerable thicknesses, high hardness, and close proximity.
Results and ConclusionsAs a result, the risks of mine earthquakes and dynamic manifestation co-exist in the mining face. With the roof of mining face11-3106 in a coal mine within the Ordos mining area as the engineering background, this study investigated roofs composed of composite hard sandstone masses. Based on the evolution of microseismic monitoring characteristics and using methods like theoretical analysis and numerical simulation, this study investigated the breaking-induced fracture development in the roofs and explored the control measures for the roofs. The results indicate that as the mining face advanced, the overlying composite hard sandstone masses broke in the zone with significant microseismic monitoring. The breaking positions can be identified based on the evolutionary patterns of microseismic monitoring characteristics. The high-density microseismic monitoring zone in the mining face manifested high microseismic frequency and energy, accompanied by regional peak high-energy events. As mining face 11-3106 advanced to the first and second square states (i.e., the first advancing distance of the mining face equals its length, and the second advancing distance of the mining face equals twice its length), the breaking characteristics of the composite hard sandstone masses exhibited two to three small cycles and a large cycle, with dynamic microseismic monitoring occurring along the strike of the mining face. The breaking span for deep-hole pre-splitting blasting was optimized based on the evolutionary characteristics of microseismic monitoring, significantly reducing microseismic monitoring in the air-return roadway and the mining influence range. The control measures for the roof composed of composite hard sandstone masses were optimized based on the dynamic migration of composite hard sandstone masses derived using the microseismic monitoring in the mining face. This study can serve as a reference for controlling the mining face roofs with similar overburden structures in the Ordos mining area.
-
-
![]()
图 2 开采扰动作用下低位复合坚硬砂岩体微震聚集特征演化
Fig. 2 Evolution of microseismic monitoring characteristics in the lowstand composite hard sandstone masses under mining disturbances
![]()
图 3 开采扰动作用下中位坚硬砂岩体微震聚集特征演化
Fig. 3 Evolution of microseismic monitoring characteristics of the moderate-stand composite hard sandstone masses
![]()
图 4 走向方向微震事件总能量与总频次
Fig. 4 Analysis of the total energy and frequency of microseismic events along the strike of the mining face
![]()

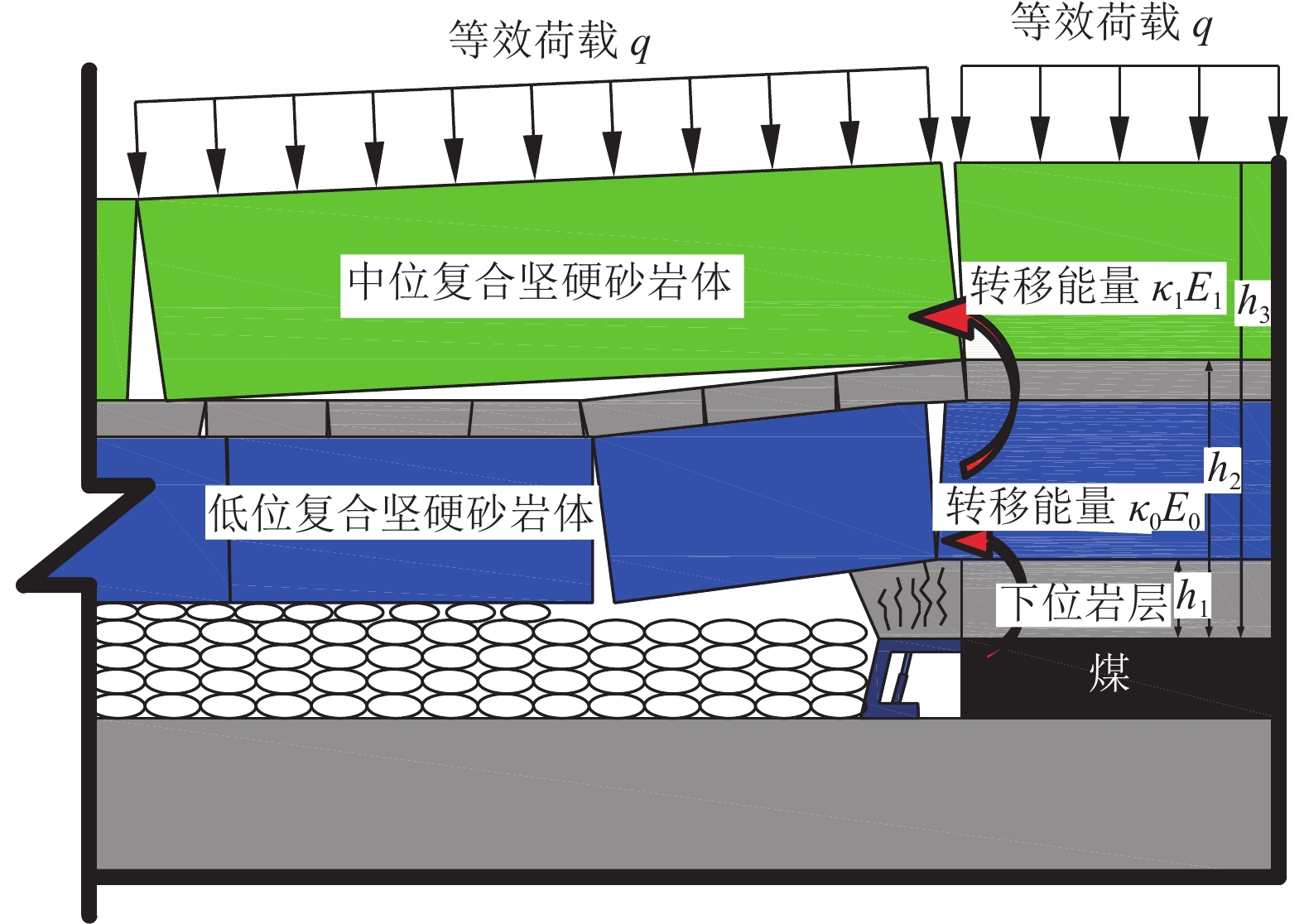

图 5 复合坚硬砂岩体弹性能转移过程
Fig. 5 Transfer process of elastic energy in composite hard sandstone masses
![]()
图 7 工作面上覆岩层裂隙发育演化
Fig. 7 Developmental evolution of fractures in the overburden of the mining face
![]()
图 8 工作面上覆岩层采场应力演化
Fig. 8 Evolution of the mining stress in the overburden of the mining face
![]()

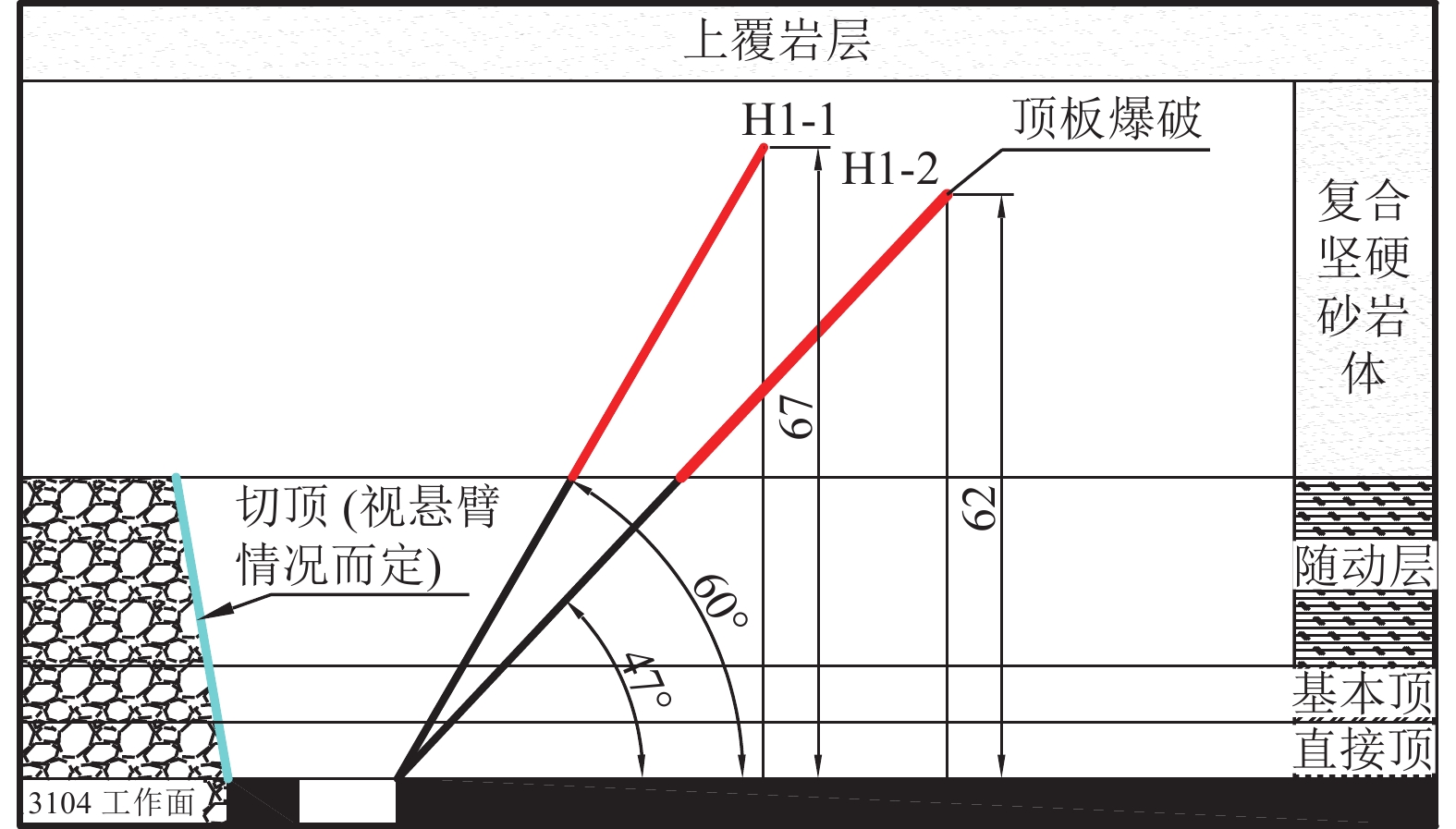

图 9 11-3106工作面深孔预裂爆破步距
Fig. 9 Breaking span for deep-hole pre-splitting blasting of mining face 11-3106
![]()

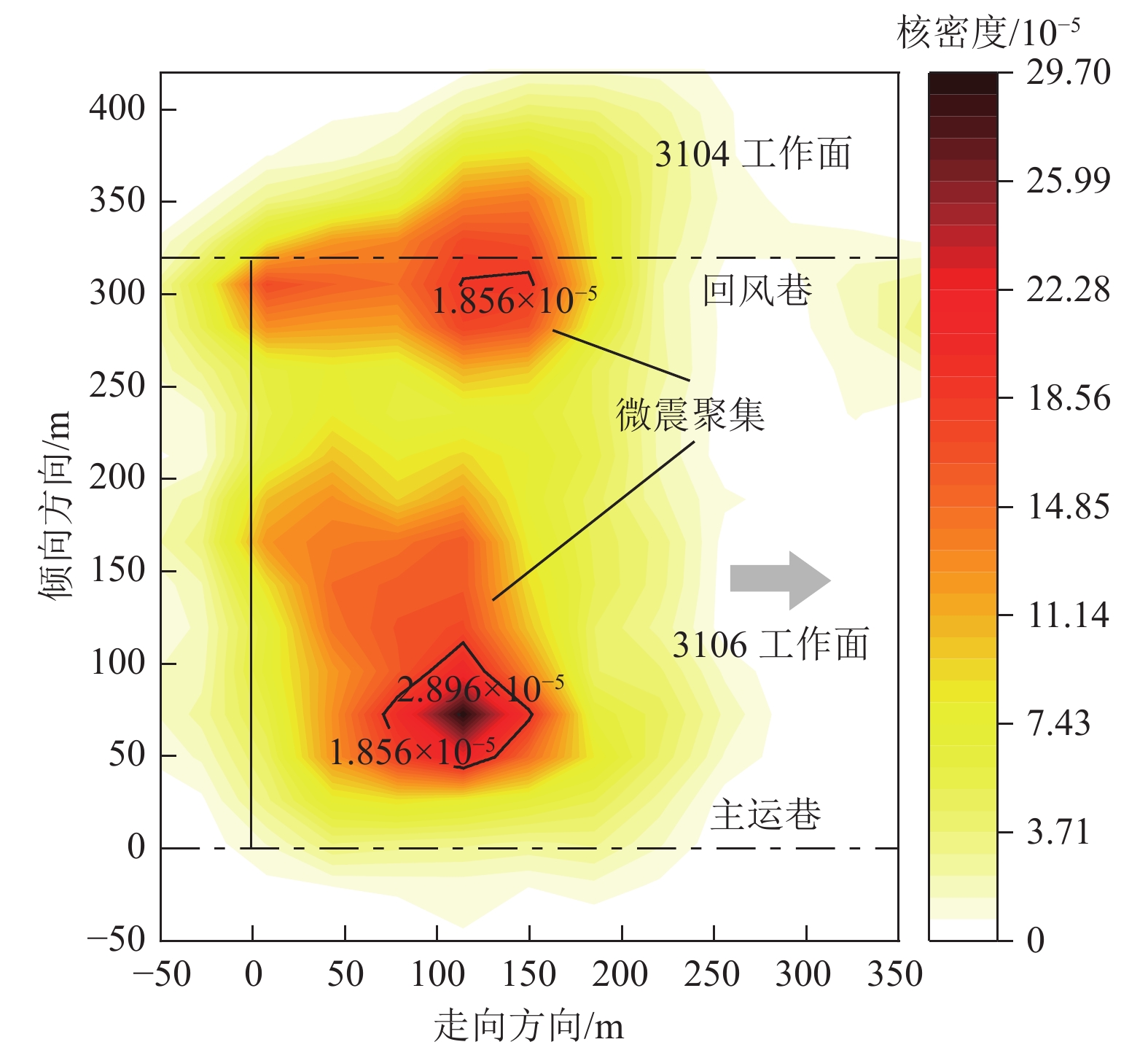

图 11 推采至148.4 m的微震事件聚集特征
Fig. 11 Microseismic event accumulation characteristics as the mining face advanced to 148.4 m
表 1 岩石力学参数
Table 1 Rock mechanical parameters
序号 岩性 模拟厚度/m 密度ρ/(kg·m−3) 弹性模量/GPa 泊松比 黏聚力/MPa 内摩擦角/(°) 抗拉强度/MPa 13 粉砂岩 6 2 550 19.2 0.23 10 38 5 12 泥岩 21 2 550 20.1 0.24 6.6 30 4 11 粉砂岩 8 2 600 21.6 0.25 10 38 2.7 10 砂质泥岩 11 2 580 15.3 0.26 6.6 35 2.8 9 粉砂岩 13 2 600 21.6 0.25 6.7 38 2.7 8 砂质泥岩 5 2 580 15.3 0.26 6.5 35 2.7 7 粗粒砂岩 5 2 550 19.2 0.23 10 38 5 6 砂质泥岩 3 2 580 15.3 0.26 6.5 35 2.7 5 粉砂岩 12 2 600 21.6 0.25 5.5 38 3.12 4 砂质泥岩 8 2 580 15.3 0.26 6.5 35 2.7 3 3-1煤 6 1 600 12 0.3 4.5 30 1.68 2 砂质泥岩 9 2 580 15.3 0.26 6.2 35 2.2 1 细砂岩 23 2 550 21.6 0.25 7.2 38 2.7
下载: 导出CSV
-
[1] WU Shaokang,ZHANG Junwen,SONG Zhixiang,et al. Review of the development status of rock burst disaster prevention system in China[J]. Journal of Central South University,2023,30(11):3763−3789. DOI: 10.1007/s11771-023-5478-2
[2] 于斌. 大同矿区特厚煤层综放开采强矿压显现机理及顶板控制研究[D]. 徐州:中国矿业大学,2014. YU Bin. Study on the mechanism of strong ground pressure and roof control in fully mechanized top-coal caving mining of extra-thick coal seam in Datong mining area[D]. Xuzhou:China University of Mining and Technology,2014.
[3] 杜建,左建平,吴根水,等. 产气具弱化坚硬顶板力学机制及损伤特征分析[J]. 岩石力学与工程学报,2023,42(9):2224−2236. DU Jian,ZUO Jianping,WU Genshui,et al. Analysis of mechanical mechanism and damage characteristics of new fracturing device gas producing tool weakening hard roof[J]. Chinese Journal of Rock Mechanics and Engineering,2023,42(9):2224−2236.
[4] 何杰,程蓬,吴乐,等. 坚硬顶板动压巷道远近应力场演化规律及调控技术研究[J]. 煤炭科学技术,1-12[2024-10-08]. HE Jie,CHENG Peng,WU Le,et al. Evolution laws and control technology of near and far stress field in hard roof mining roadway[J]. Coal Science and Technology,1-12[2024-10-08].
[5] 崔峰,陆长亮,王昊,等. 缓倾斜煤层坚硬顶板断层活化微震时空演化规律及诱冲机制[J]. 采矿与岩层控制工程学报,2024,6(3):5−19. CUI Feng,LU Changliang,WANG Hao,et al. Spatio-temporal evolution of microseismic activation of hard-roof faults in gently dipping coal seams and the mechanism of induced shocks[J]. Journal of Mining and Strata Control Engineering,2024,6(3):5−19.
[6] 钱鸣高,缪协兴,许家林. 岩层控制中的关键层理论研究[J]. 煤炭学报,1996,21(3):2−7. QIAN Minggao,MIAO Xiexing,XU Jialin. Theoretical study of key stratum in ground control[J]. Journal of China Coal Society,1996,21(3):2−7.
[7] 王炯,李文飞,刘雨兴,等. 塔山煤矿复合坚硬顶板切顶留巷围岩变形机理及控制技术研究[J]. 采矿与安全工程学报,2020,37(5):871−880. WANG Jiong,LI Wenfei,LIU Yuxing,et al. Deformation mechanism and control technology of surrounding rock in gob-side entry retaining by roof cutting of composite hard roof in the Tashan coal mine[J]. Journal of Mining & Safety Engineering,2020,37(5):871−880.
[8] 王宏伟,邓代新,姜耀东,等. 巨厚坚硬顶板变形及垮落的动态演化特征研究[J]. 矿业科学学报,2021,6(5):548−557. WANG Hongwei,DENG Daixin,JIANG Yaodong,et al. Study on the dynamic evolution characteristics of deformation and collapse of the extra-thick hard roof[J]. Journal of Mining Science and Technology,2021,6(5):548−557.
[9] 樊鑫,程建远,栗升,等. 煤矿微震监测系统在回采工作面顶板水害防治中的应用[J]. 煤田地质与勘探,2024,52(6):115−127. FAN Xin,CHENG Jianyuan,LI Sheng,et al. Application of microseismic monitoring system for coal mines to the prevention and control of water disasters on working face roofs[J]. Coal Geology & Exploration,2024,52(6):115−127.
[10] JIANG Lishuai,WU Quansen,WU Quanlin,et al. Fracture failure analysis of hard and thick key layer and its dynamic response characteristics[J]. Engineering Failure Analysis,2019,98:118−130. DOI: 10.1016/j.engfailanal.2019.01.008
[11] ZUO Jianping,YU Meilu,LI Chunyuan,et al. Analysis of surface cracking and fracture behavior of a single thick main roof based on similar model experiments in western coal mine,China[J]. Natural Resources Research,2021,30(1):657−680. DOI: 10.1007/s11053-020-09735-y
[12] 马新根. 塔山煤矿复合坚硬顶板110工法关键技术及矿压规律研究[D]. 北京:中国矿业大学(北京),2019. MA Xingen. Study on key technology and ground pressure law of compound hard roof 110 construction method in Tashan Coal Mine[D]. Beijing:China University of Mining & Technology (Beijing),2019.
[13] YU Meilu,ZUO Jianping,SUN Yunjiang,et al. Investigation on fracture models and ground pressure distribution of thick hard rock strata including weak interlayer[J]. International Journal of Mining Science and Technology,2022,32(1):137−153. DOI: 10.1016/j.ijmst.2021.10.009
[14] JIA Jinlong,CAO Liwen,ZHANG Dianji,et al. Study on the fracture characteristics of thick-hard limestone roof and its controlling technique[J]. Environmental Earth Sciences,2017,76(17):605. DOI: 10.1007/s12665-017-6914-0
[15] 翁明月,苏士杰,孙如达,等. 多关键层窄煤柱冲击地压发生机理与三级协同防治技术[J]. 煤炭学报,2024,49(增刊1):45−56. WENG Mingyue,SU Shijie,SUN Ruda,et al. Research on Rock burst generation mechanism and three-level collaborative control technology of multi-key strata narrow coal pillar[J]. Journal of China Coal Society,2024,49(Sup.1):45−56.
[16] ZHAO Tong,GONG Peilin,YETILMEZSOY K,et al. Dynamic failure and stability model analysis of thick and hard rock with wedge-structure immediate roof occurrence[J]. Geomechanics and Geophysics for Geo-Energy and Geo-Resources,2021,7(3):80. DOI: 10.1007/s40948-021-00277-y
[17] 杨胜利. 基于中厚板理论的坚硬厚顶板破断致灾机制与控制研究[D]. 徐州:中国矿业大学,2019. YANG Shengli. Study on disaster mechanism and control of hard thick roof fracture based on plate theory[D]. Xuzhou:China University of Mining and Technology,2019.
[18] WANG Hongwei,JIAO Jianqiang,WU Yongping,et al. Deformation characteristics and stress evolution law of composite hard roof under presplitting weakening[J]. Mining,Metallurgy & Exploration,2023,40(3):839–850.
[19] 郑凯歌,袁亮,杨森,等. 基于分区弱化的复合坚硬顶板冲击地压分段压裂区域防治研究[J]. 采矿与安全工程学报,2023,40(2):322−333. ZHENG Kaige,YUAN Liang,YANG Sen,et al. Study on prevention and control of rock burst staged fracturing area of composite hard roof based on zoning weakening[J]. Journal of Mining & Safety Engineering,2023,40(2):322−333.
[20] WANG Shuyu,SI Guangyao,WANG Changbin,et al. Quantitative assessment of the spatio-temporal correlations of seismic events induced by longwall coal mining[J]. Journal of Rock Mechanics and Geotechnical Engineering,2022,14(5):1406−1420. DOI: 10.1016/j.jrmge.2022.04.002
[21] 胡静云,张茹,任利,等. 矿山微震波形特征自动模式识别算法研究[J]. 岩石力学与工程学报,2022,41(2):346−361. HU Jingyun,ZHANG Ru,REN Li,et al. Research on automatic pattern recognition algorithm of micro-seismic waveform characteristics in mines[J]. Chinese Journal of Rock Mechanics and Engineering,2022,41(2):346−361.
[22] ZHAO Jinshuai,JIANG Quan,PEI Shufeng,et al. Microseismicity and focal mechanism of blasting-induced block falling of intersecting chamber of large underground cavern under high geostress[J]. Journal of Central South University,2023,30(2):542−554. DOI: 10.1007/s11771-023-5259-y
[23] 周金艳,杨洪增,高杰涛. 煤矿不等长工作面微震事件空间分布特征及其影响因素[J]. 煤田地质与勘探,2024,52(6):128−136. DOI: 10.12363/issn.1001-1986.23.09.0551 ZHOU Jinyan,YANG Hongzeng,GAO Jietao. Spatial distribution and influencing factors of microseismic events in unequal-length mining faces in coal mines[J]. Coal Geology & Exploration,2024,52(6):128−136. DOI: 10.12363/issn.1001-1986.23.09.0551
[24] LU Caiping,LIU Yang,WANG Hongyu,et al. Microseismic signals of double-layer hard and thick igneous strata separation and fracturing[J]. International Journal of Coal Geology,2016,160:28−41.
[25] 肖鹏,韩凯,双海清,等. 基于微震监测的覆岩裂隙演化规律相似模拟试验研究[J]. 煤炭科学技术,2022,50(9):48−56. XIAO Peng,HAN Kai,SHUANG Haiqing,et al. Similar material simulation test study on evolution law of overburden fracture based on microseismic monitoring[J]. Coal Science and Technology,2022,50(9):48−56.
[26] 王家臣,唐岳松,王兆会,等. 千米深井综采工作面覆岩微震显现特征与损伤度计算方法[J]. 中国矿业大学学报,2023,52(3):417−431. WANG Jiachen,TANG Yuesong,WANG Zhaohui,et al. Characteristics of microseismic events and damage degree calculation method in kilometer deep fully mechanical longwall panel[J]. Journal of China University of Mining & Technology,2023,52(3):417−431.
[27] 潘一山,宋义敏,朱晨利,等. 冲击地压预测的煤岩变形局部化方法[J]. 煤炭学报,2023,48(1):185−198. PAN Yishan,SONG Yimin,ZHU Chenli,et al. Localization method of coal rock deformation for rock burst prediction[J]. Journal of China Coal Society,2023,48(1):185−198.
[28] 王桂峰,窦林名,蔡武,等. 冲击地压的不稳定能量触发机制研究[J]. 中国矿业大学学报,2018,47(1):190−196. WANG Guifeng,DOU Linming,CAI Wu,et al. Unstable energy triggering mechanism of rock burst[J]. Journal of China University of Mining & Technology,2018,47(1):190−196.
[29] LI Xuelong,LI Zhonghui,WANG Enyuan,et al. Pattern recognition of mine microseismic and blasting events based on wave fractal features[J]. Fractals,2018,26(3):1850029. DOI: 10.1142/S0218348X18500299
[30] FENG Guangliang,CHEN Bingrui,XIAO Yaxun,et al. Microseismic characteristics of rockburst development in deep TBM tunnels with alternating soft–hard strata and application to rockburst warning:A case study of the Neelum–Jhelum hydropower project[J]. Tunnelling and Underground Space Technology,2022,122:104398. DOI: 10.1016/j.tust.2022.104398
[31] 扈海波,张西雅,王瑛. 基于二维高斯核密度方法的多空间尺度地闪密度推算[J]. 自然灾害学报,2019,28(5):172−180. HU Haibo,ZHANG Xiya,WANG Ying. Using 2D Guassian kernel density method to deduce the CG flash density in multi-spatial resolution[J]. Journal of Natural Disasters,2019,28(5):172−180.
[32] 窦林名,贺虎,何江,等. 冲击危险评价的相对应力集中系数叠加法[J]. 煤炭学报,2018,43(2):327−332. DOU Linming,HE Hu,HE Jiang,et al. New method of rockburst risk assessment using relative stress concentration factor superposition[J]. Journal of China Coal Society,2018,43(2):327−332.
