Intelligent optimization and control technology for drilling process of coal mine tunnels
-

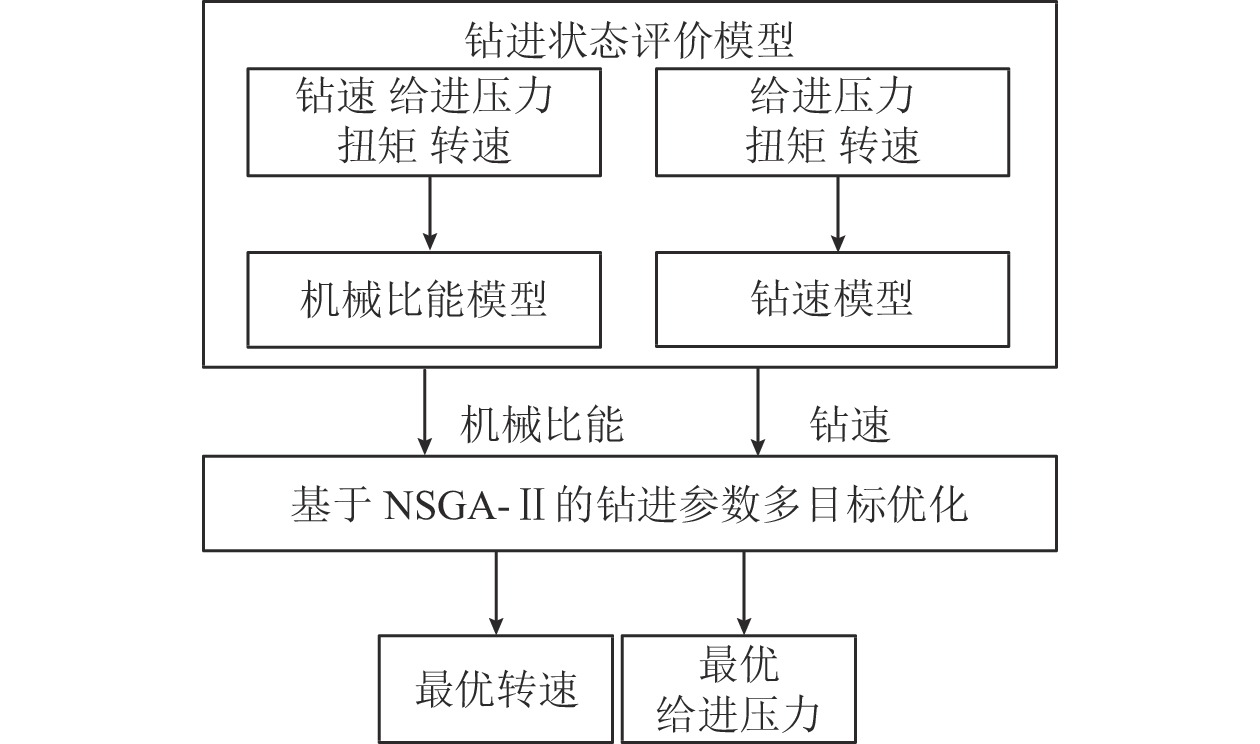

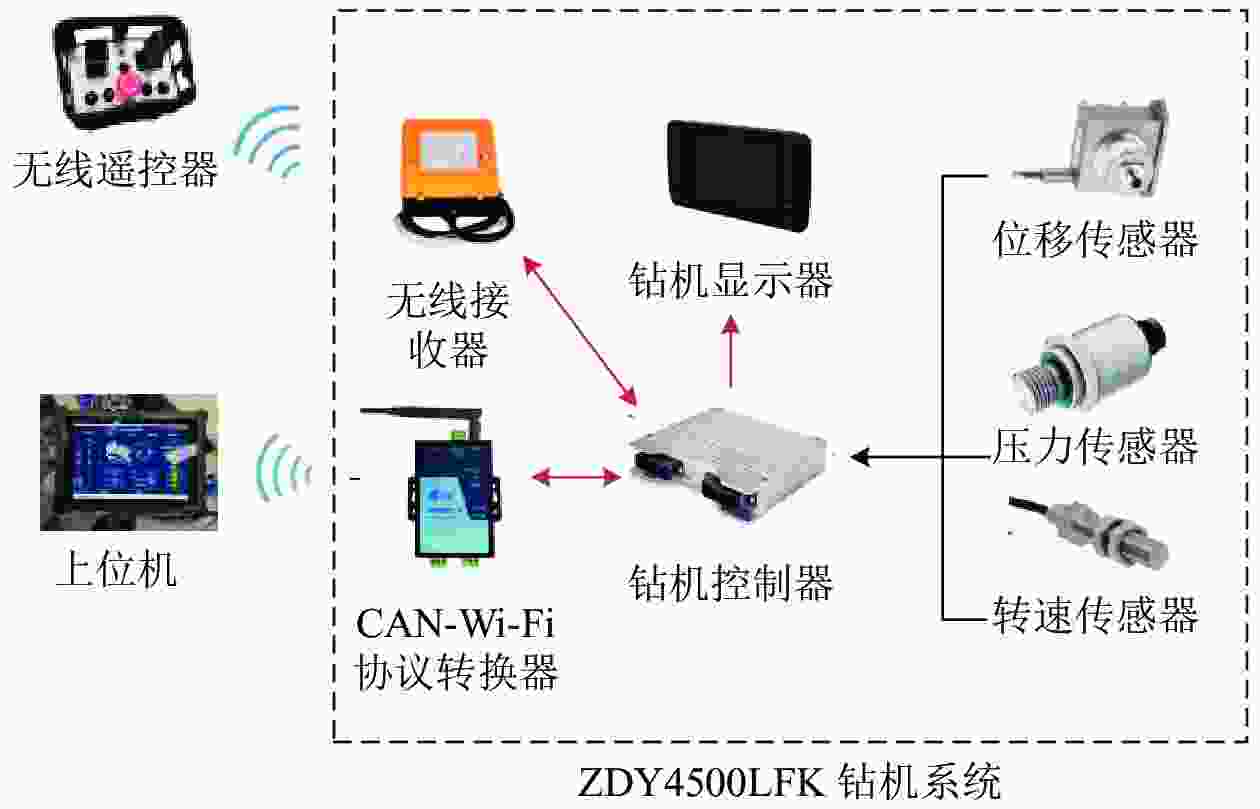

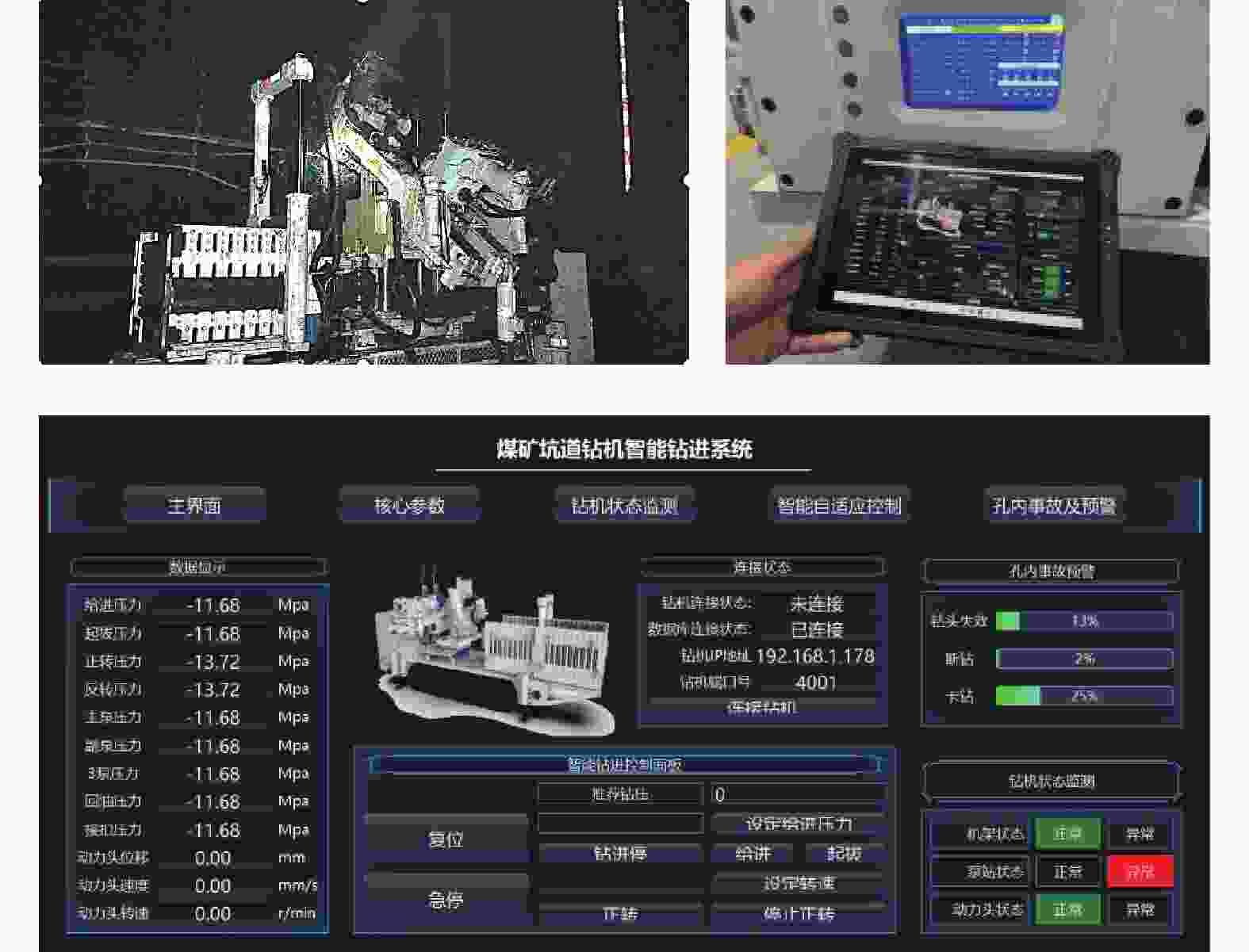

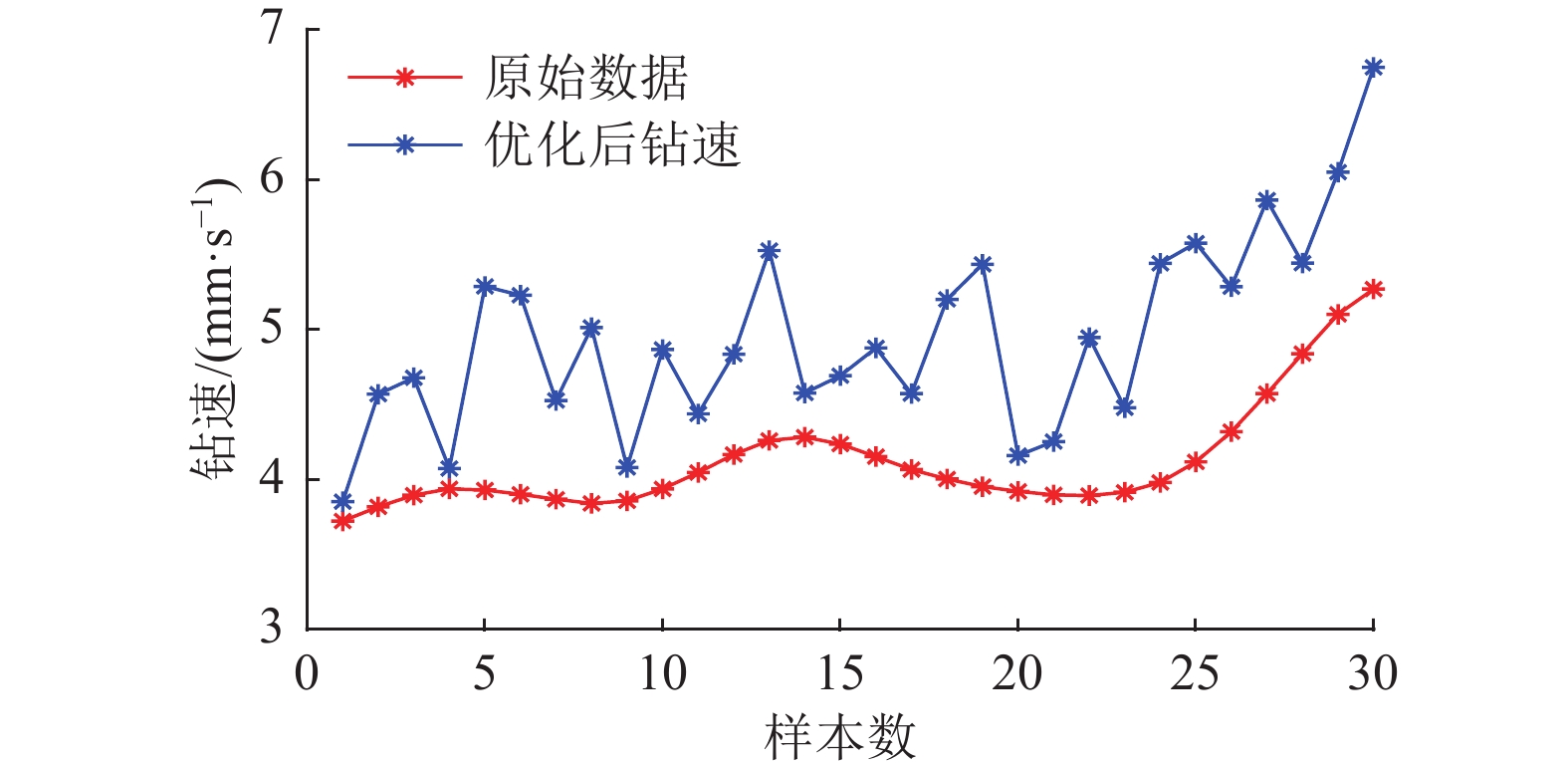

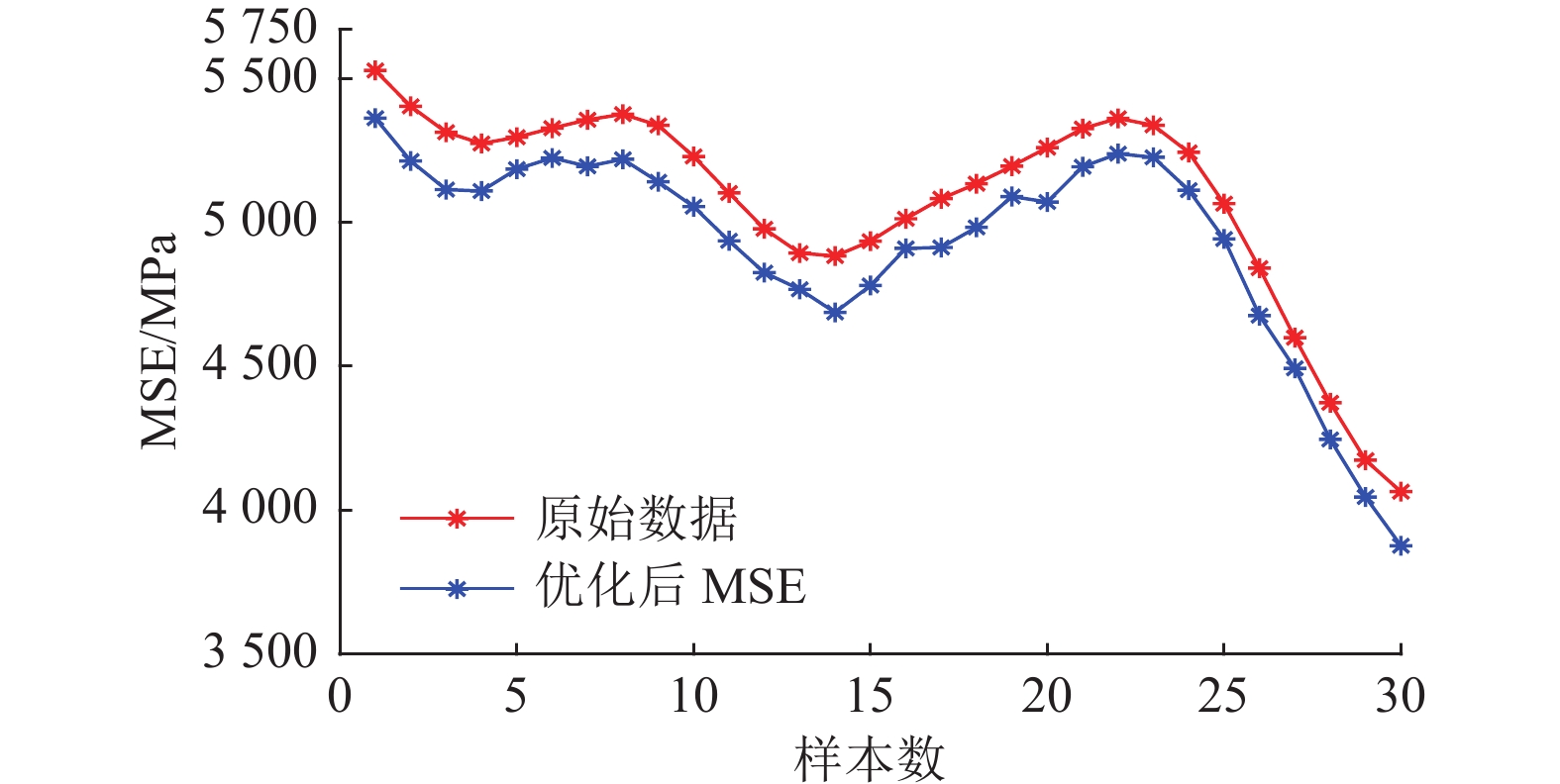

摘要: 煤矿坑道钻进施工环境恶劣、复杂的煤层结构和繁杂的操作工序造成钻进效率低、钻进成本高。开展煤矿坑道钻进过程优化与控制技术的研究势在必行。围绕煤矿坑道钻进控制过程关键技术，从含煤地层岩性智能识别、钻进参数智能优化和智能控制3方面展开。首先，为了准确判断含煤地层类型，建立基于BP-Adaboost的含煤地层岩性智能识别模型。然后，在不同含煤地层条件下，建立基于机械比能和钻速的智能优化模型，为司钻人员提供最优给进压力和转速参考值。进而，提出一种基于模糊PID的给进压力控制策略，实现给进压力的有效控制。最后，基于煤矿坑道钻机智能钻进系统在淮南矿区某煤矿井下进行了现场试验。试验结果表明：所提含煤地层岩性智能识别方法的识别准确率达到96.75%；智能优化方法显著提升现场钻速，消耗的机械比能降低，在提高钻进效率的同时降低了钻进成本；给进压力控制策略使给进压力稳定运行在最优值附近，减小给进系统超调的同时，提升系统的响应速度，使给进压力的动态响应更加平稳。煤矿坑道钻进过程智能优化与控制技术能够保障钻进过程安全高效运行，促进煤矿坑道钻进技术智能化发展。Abstract: The harsh environment for drilling construction of coal mine tunnel, complex coal seam structure and complicated operation procedures can cause low drilling efficiency and high drilling cost. For this reason, it is imperative to carry out studies on the optimization and control technology for the drilling process of coal mine tunnel. Herein, study was conducted from intelligent identification of lithology of coal-bearing formation, intelligent optimization of drilling parameters and their intelligent control, focusing on the key technology for control of drilling process of coal mine tunnel. First, in order to accurately determine the type of coal-bearing formation, an intelligent identification model of coal-bearing formation lithology based on BP-Adaboost was established. Then, an intelligent optimization model based on mechanical specific energy and drilling speed was established under different condition of coal-bearing formations, to provide the driller with the reference values of optimal feed pressure and rotational speed. Next, a fuzzy PID-based feed pressure control strategy was proposed to realize the effective control of feed pressure. Finally, field test was implemented in a coal mine in Huainan with the intelligent drilling system of drill rig for coal mine tunnel. The test results indicate that: the identification accuracy of the proposed intelligent identification model for coal-bearing formation lithology is up to 96.75%. The intelligent optimization method improves the drilling rate significantly and reduces the mechanical specific energy, thereby improving the drilling efficiency and reducing the drilling cost. The feed pressure control strategy could stabilize the feed pressure near the optimal value, reduce the overshoot of the feed system while speeding up the system response, thereby ensuring the dynamic response of the feed pressure smoother. Intelligent optimization and control technology for drilling process of coal mine tunnel can effectively guarantee the safe and efficient operation of the drilling process and promote the intelligent development of the drilling technology for coal mine tunnel.
-
Key words:
- coal mine /
- tunnel drilling /
- lithology identification /
- intelligent optimization /
- intelligent control
-

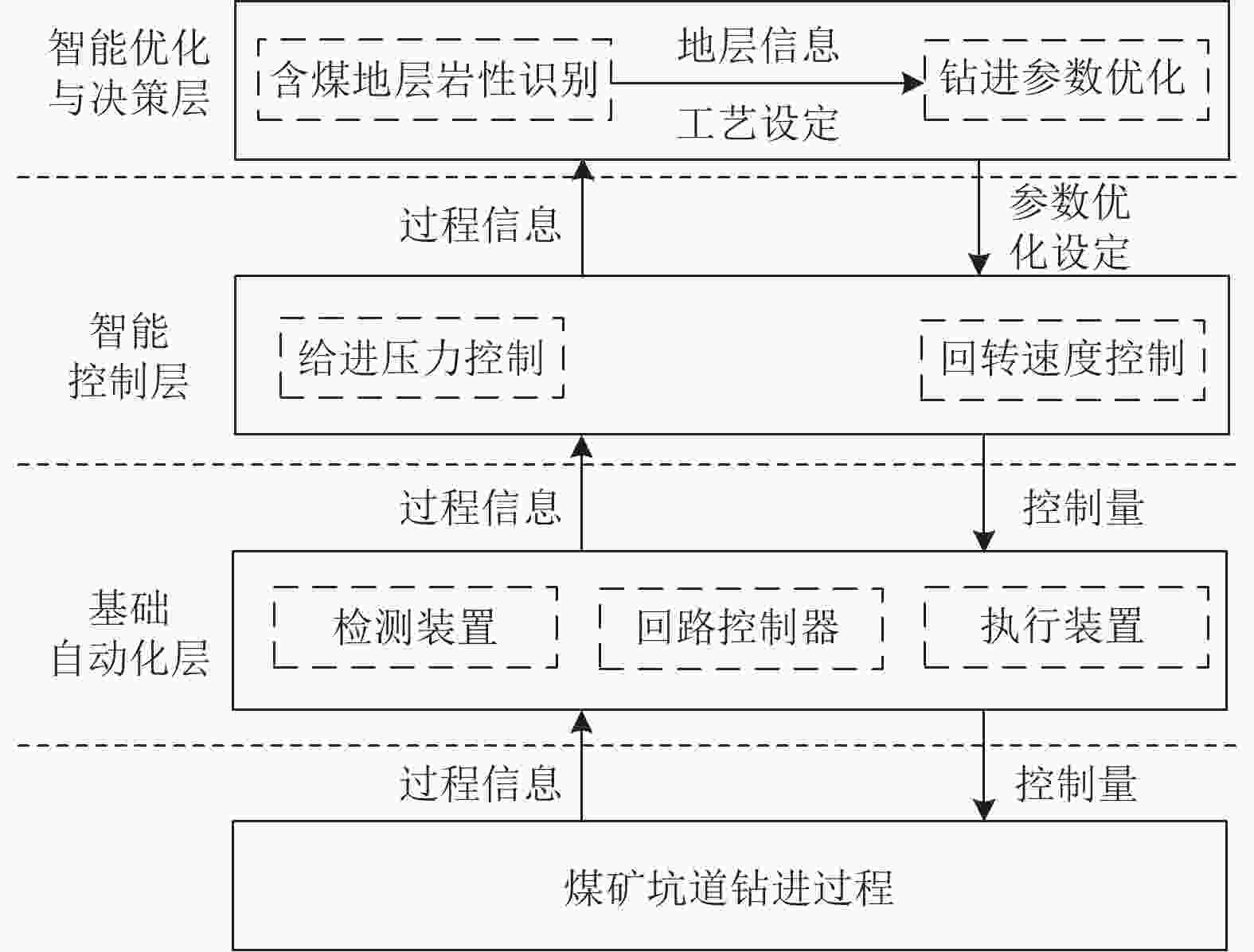

图 1 煤矿坑道钻进过程智能优化与控制方案
Fig. 1 Intelligent optimization and control scheme for drilling process of coal mine tunnel

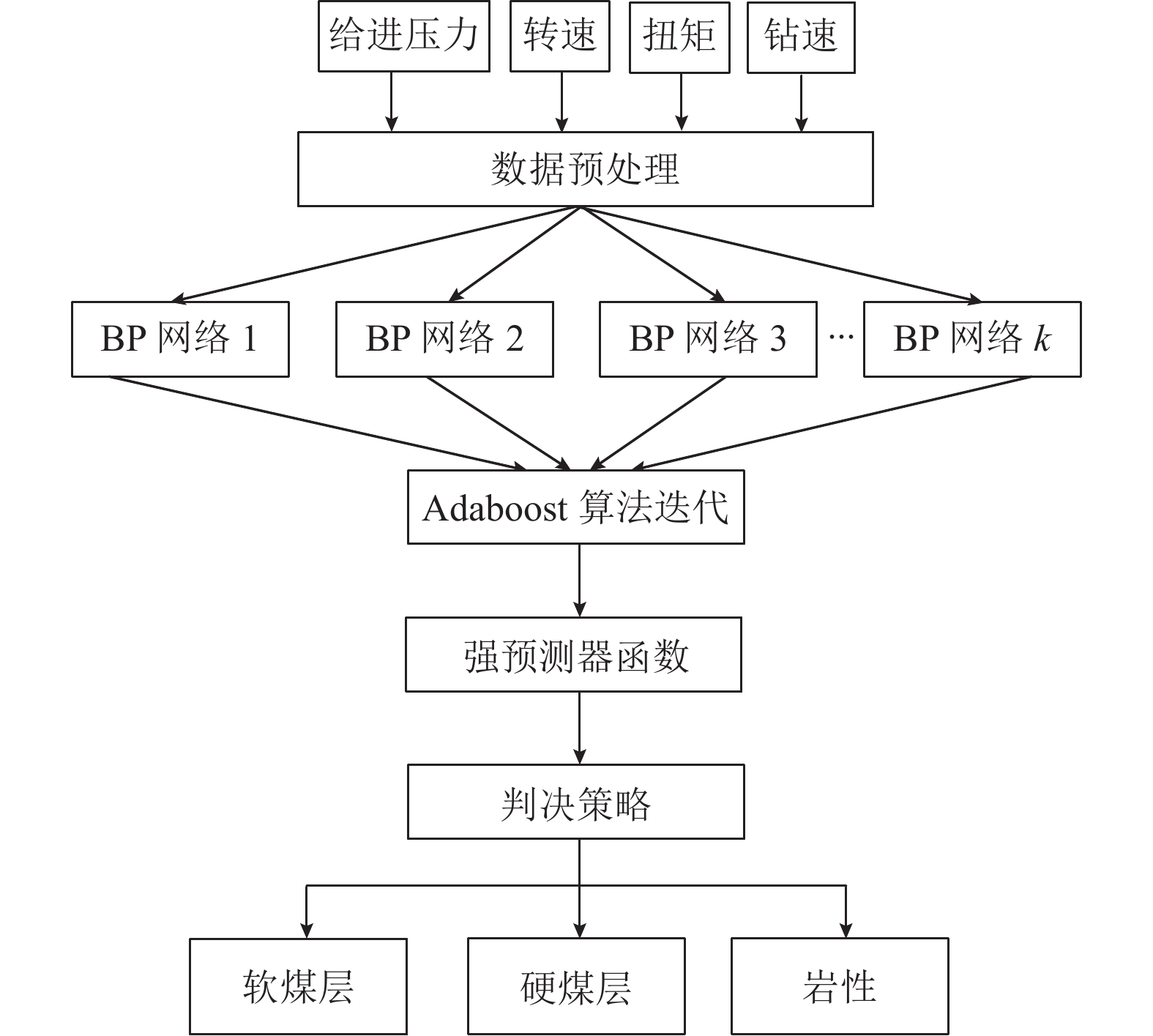

图 2 典型含煤地层岩性智能识别方案
Fig. 2 Intelligent lithology identification scheme of typical coal-bearing formation

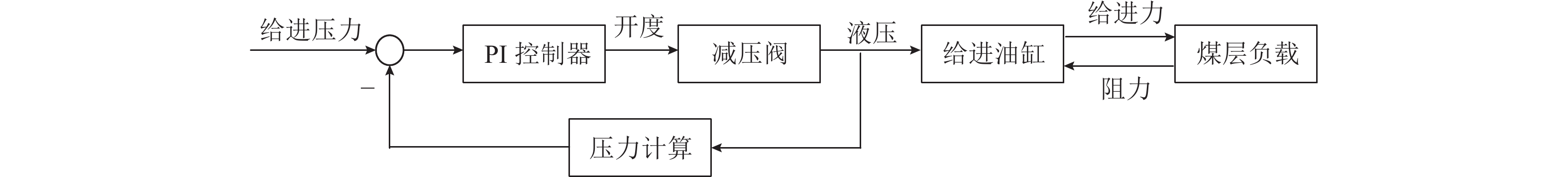

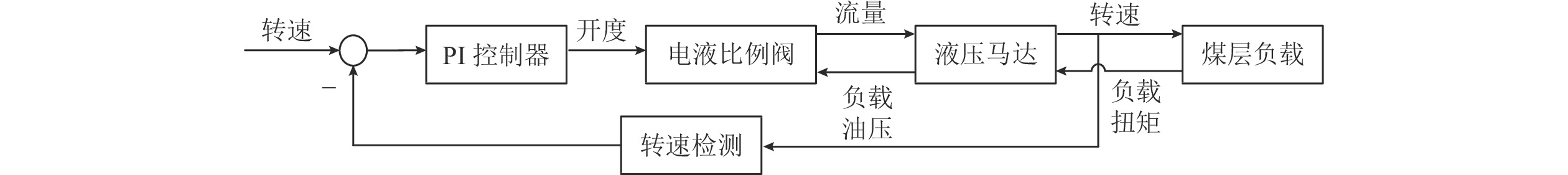

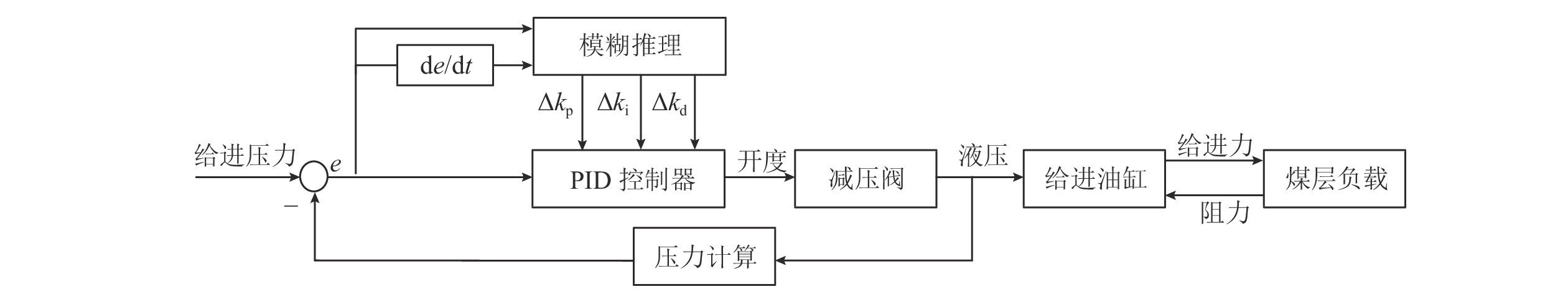

图 6 基于模糊PID给进系统液压控制
注：$\Delta k_{\rm{p}}$为比例系数调节量；$\Delta k_{\rm{i}}$为积分系数调节量；$\Delta k_{\rm{d}} $为微分系数调节量。
Fig. 6 Hydraulic control of feed system based on fuzzy PID

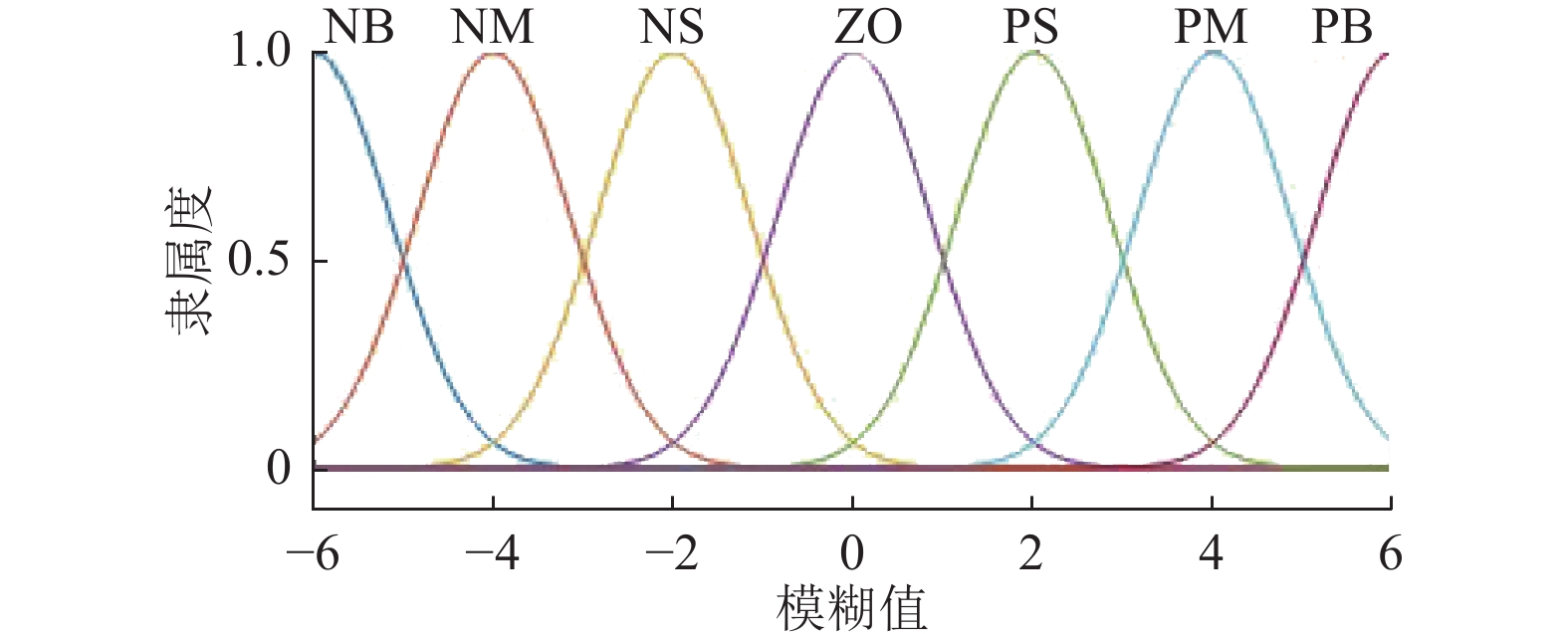

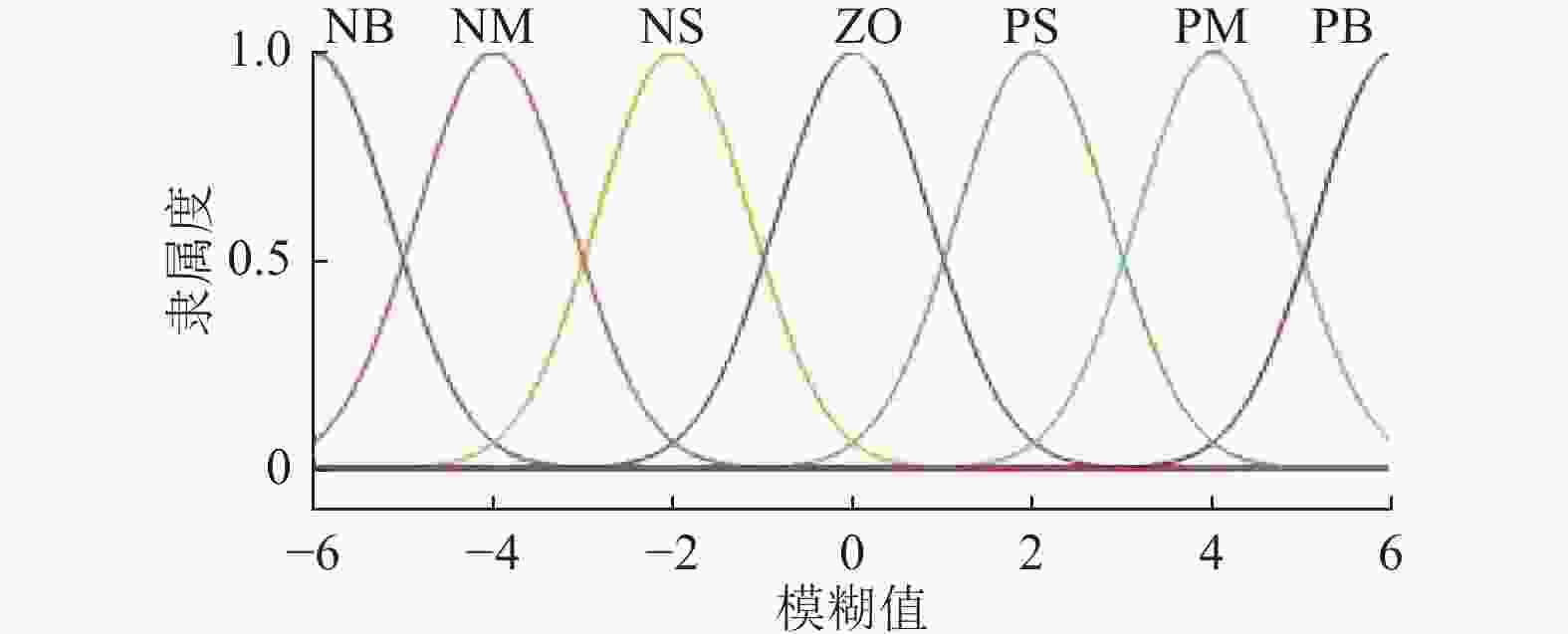

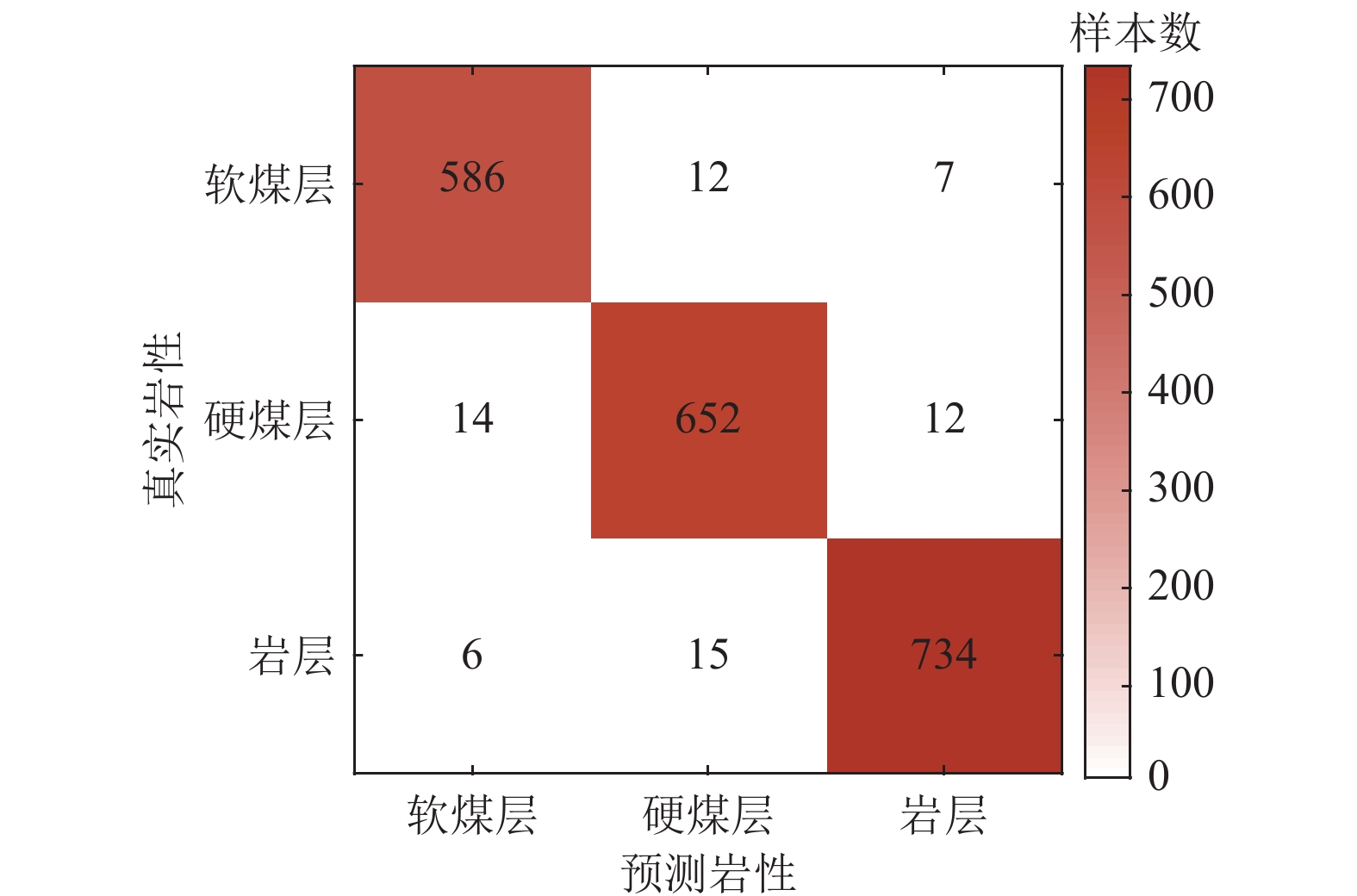

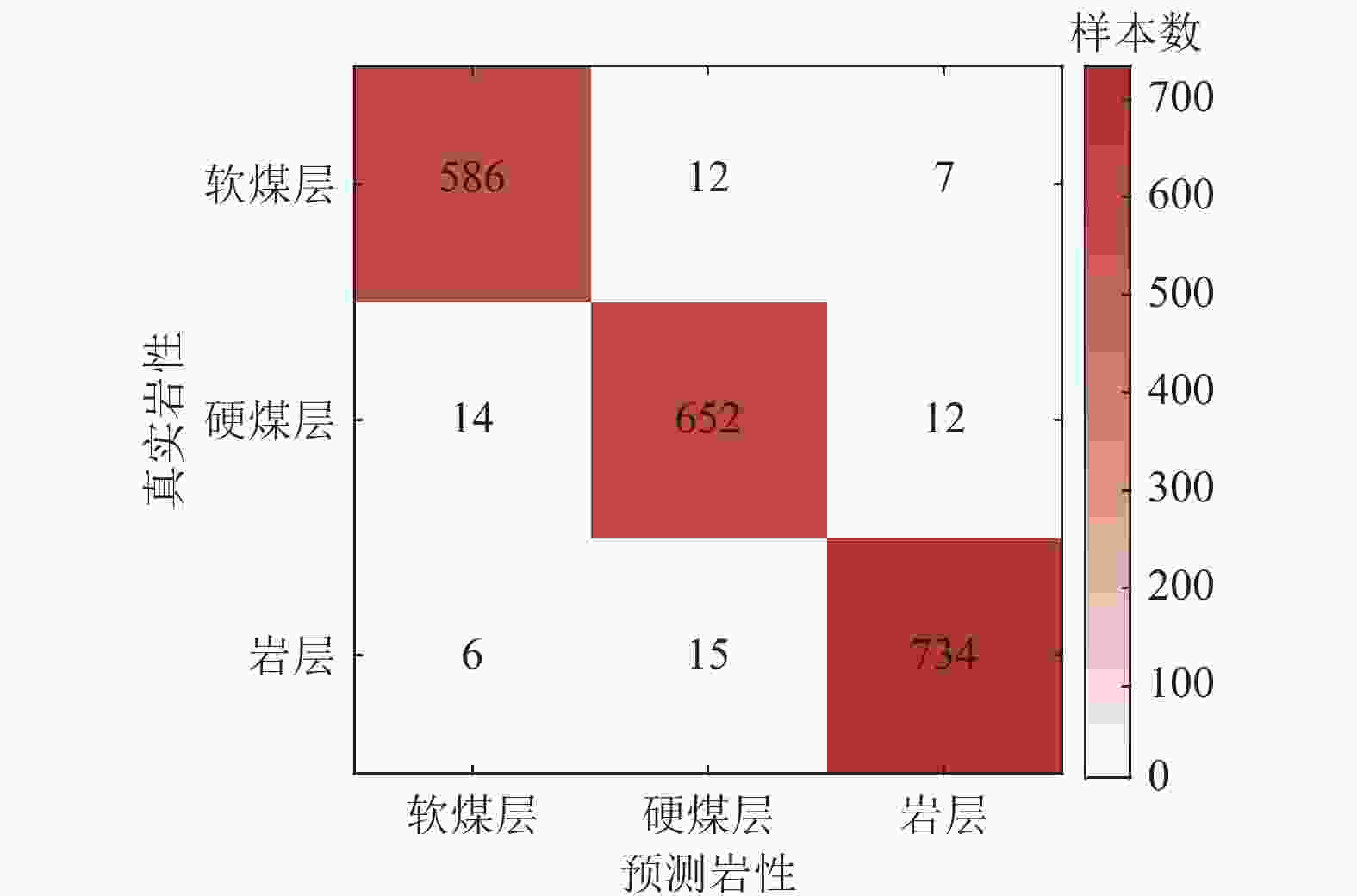

表 1 分类模型性能评价
Table 1 Classification model performance evaluation
岩层类型 查准率 召回率 F-measure 软煤层 96.86% 96.70% 96.78 硬煤层 96.17% 96.02% 96.09 岩层 97.22% 97.48% 97.35
下载: 导出CSV

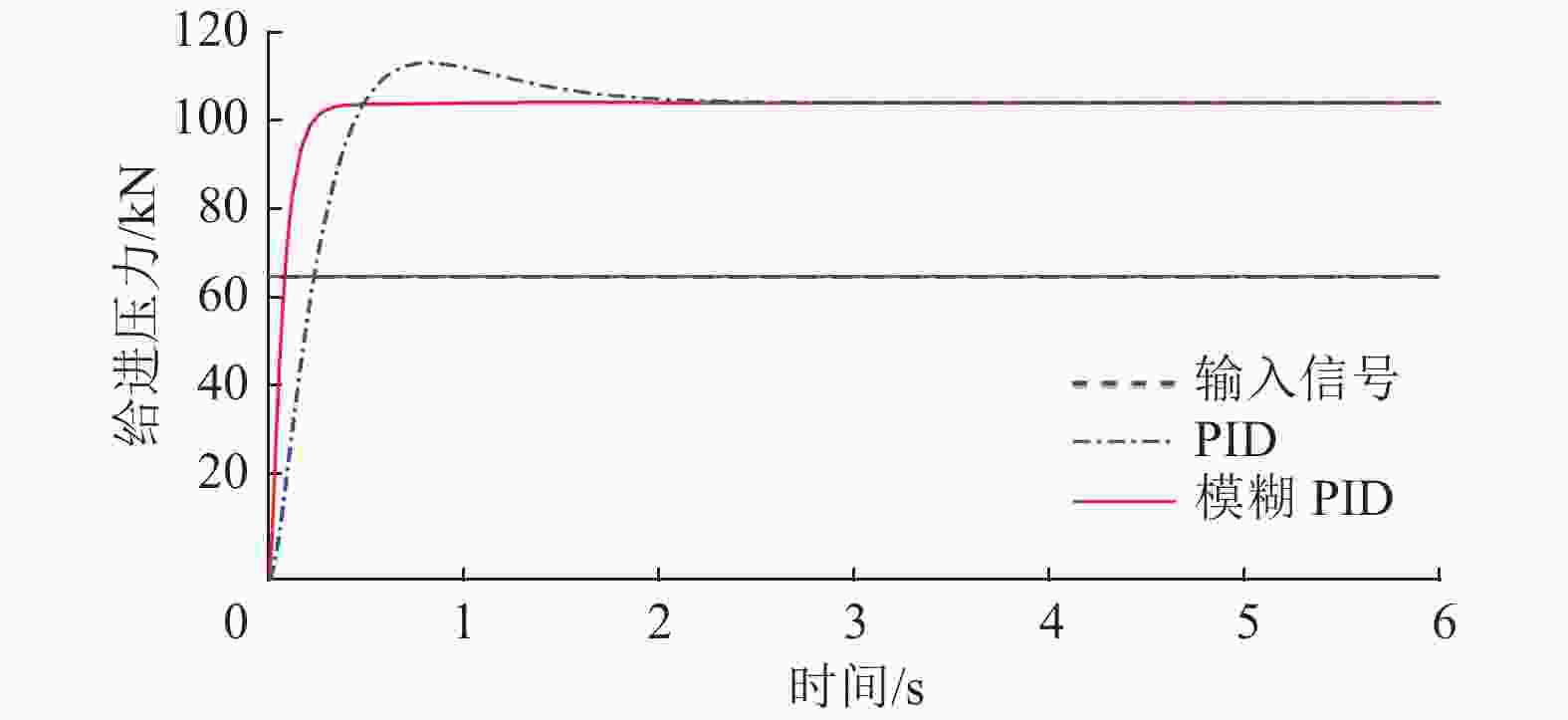

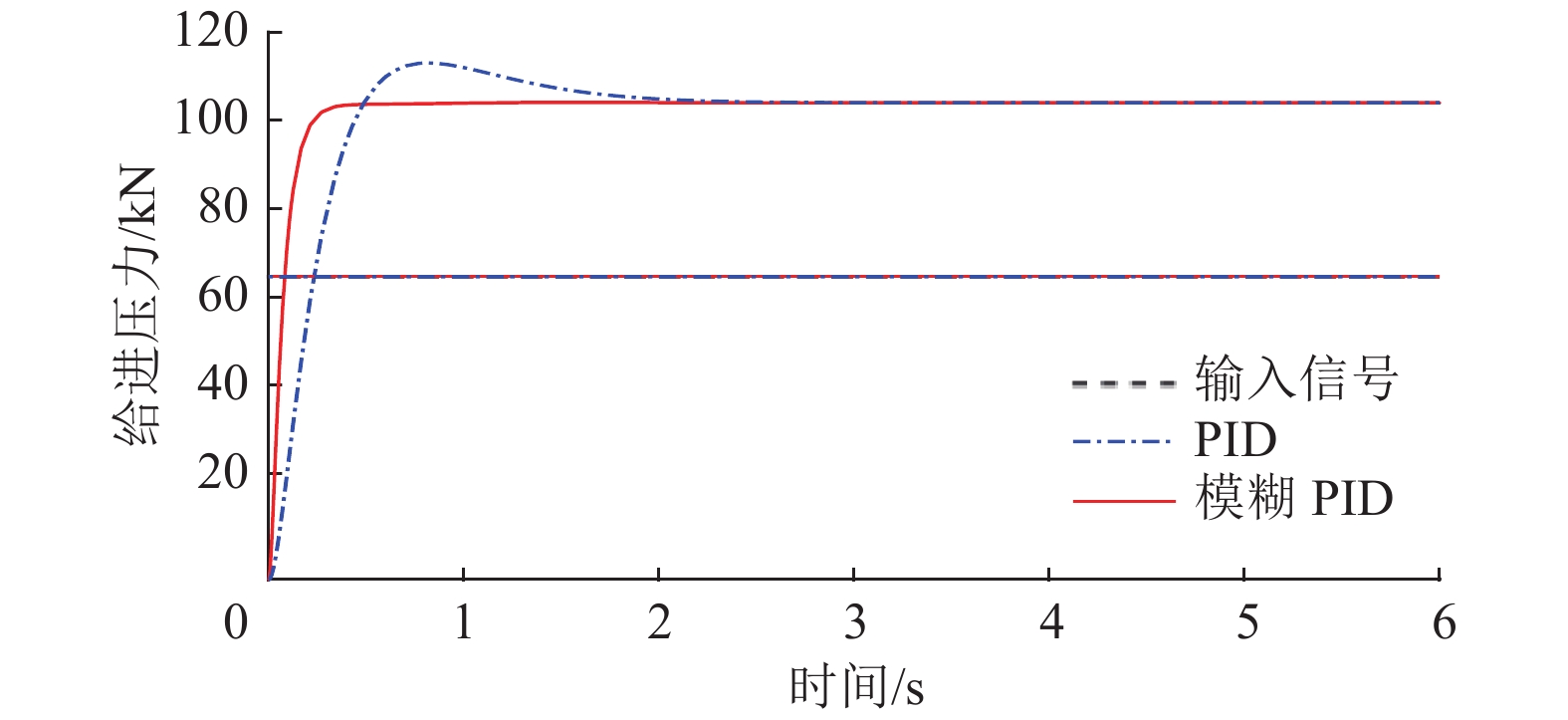

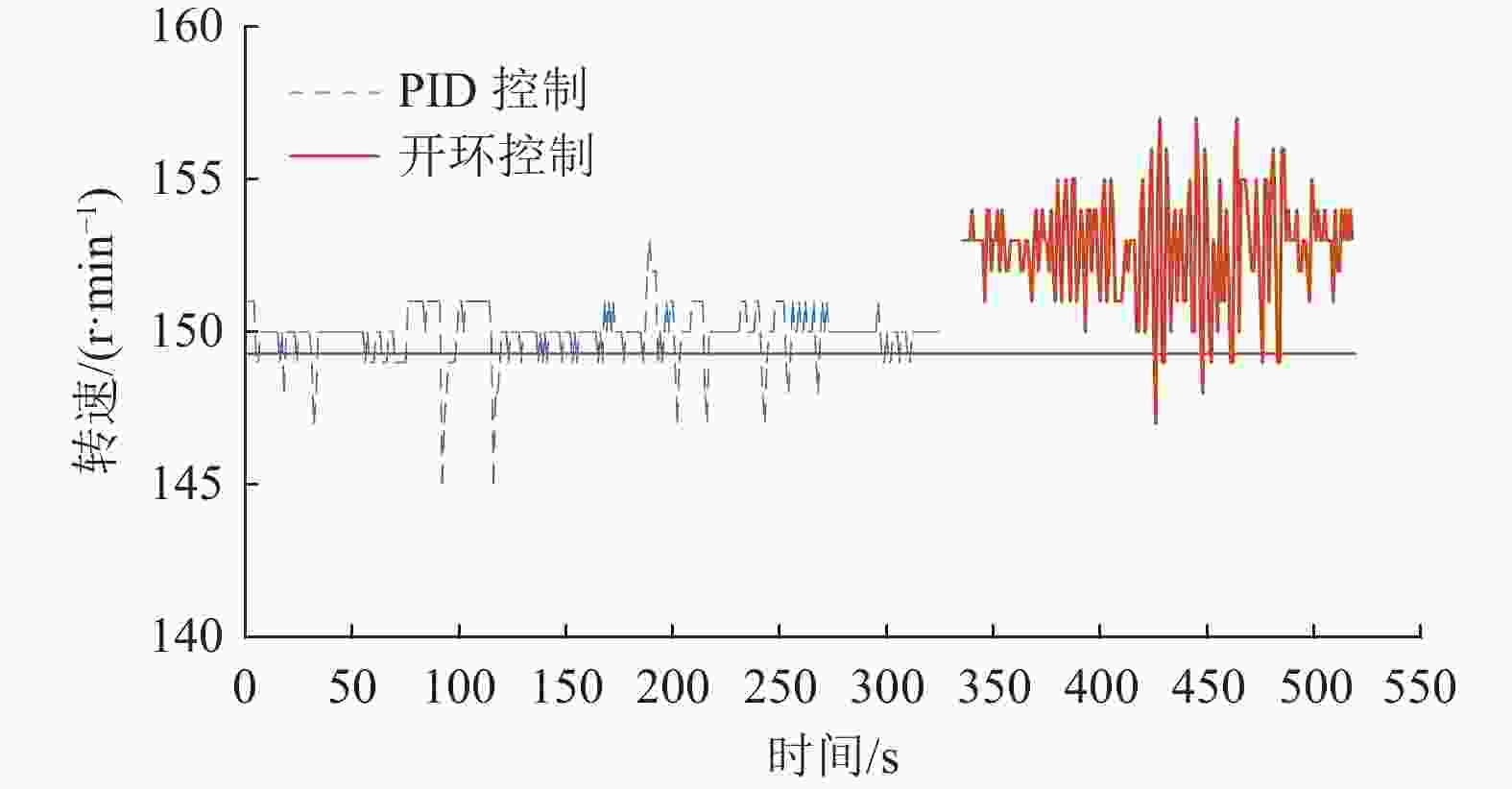

表 2 控制性能对比
Table 2 Control performance comparison
控制算法 调节时间/s 超调量/% 稳态误差/% 模糊PID 0.6 0 0.01 PID 2.0 8.3 0.003
下载: 导出CSV
-
[1] 吴敏, 曹卫华, 陈鑫, 等. 复杂地质钻进过程智能控制[M]. 北京: 科学出版社, 2022. [2] 陈刚,汪凯斌,蒋必辞,等. 随钻测井中岩性识别方法的对比及应用[J]. 煤田地质与勘探,2018,46(1):165−169.CHEN Gang,WANG Kaibin,JIANG Bici,et al. Comparison and application of LWD lithology identification method[J]. Coal Geology & Exploration,2018,46(1):165−169. [3] 王杰,席凯凯,郭禹伦. 基于机器学习的岩性识别研究[J]. 科技和产业,2022,22(1):311−315.WANG Jie,XI Kaikai,GUO Yulun. Device research on lithology recognition based on machine learning[J]. Science Technology and Industry,2022,22(1):311−315. [4] 张幼振,张宁,邵俊杰,等. 基于钻进参数聚类的含煤地层岩性模糊识别[J]. 煤炭学报,2019,44(8):2328−2335.ZHANG Youzhen,ZHANG Ning,SHAO Junjie,et al. Fuzzy identification of coal–bearing strata lithology based on drilling parameter clustering[J]. Journal of China Coal Society,2019,44(8):2328−2335. [5] 武中原,张欣,张春雷,等. 基于LSTM循环神经网络的岩性识别方法[J]. 岩性油气藏,2021,33(3):120−128.WU Zhongyuan,ZHANG Xin,ZHANG Chunlei,et al. Lithology identification based on LSTM recurrent neural network[J]. Lithologic Reservoirs,2021,33(3):120−128. [6] XIE Yunxin,ZHU Chenyang,ZHOU Wen,et al. Evaluation of machine learning methods for formation lithology identification:A comparison of tuning processes and model performances[J]. Journal of Petroleum Science and Engineering,2018,160:182−193.. doi: 10.1016/j.petrol.2017.10.028 [7] XIE Yunxin,ZHU Chenyang,LU Yue,et al. Towards optimization of boosting models for formation lithology identification[J]. Mathematical Problems in Engineering,2019,2019:5309852. [8] RITTO T G,SOIZE C,SAMPAIO R. Robust optimization of the rate of penetration of a drill–string using a stochastic nonlinear dynamical model[J]. Computational Mechanics,2010,45(5):415−427.. doi: 10.1007/s00466-009-0462-8 [9] EREN T, OZBAYOGLU M E. Real time optimization of drilling parameters during drilling operations: SPE Oil and Gas India Conference and Exhibition[C]. Mumbai, 2010: 1–14. [10] 张泷,张禾,梁海波,等. 一种最小机械比能计算参数优化的方法[J]. 信息通信,2015(4):72−74.ZHANG Long,ZHANG He,LIANG Haibo,et al. A new method to calculate optimal parameters of the minimum mechanical specific energy[J]. Information & Communications,2015(4):72−74. [11] ARABJAMALOEI R,SHADIZADEH S. Modeling and optimizing rate of penetration using intelligent systems in an Iranian southern oil field (Ahwaz Oil Field)[J]. Petroleum Science and Technology,2011,29(16):1637−1648.. doi: 10.1080/10916460902882818 [12] WANG Jingzhong,HO Y,SUN T Y. Fuzzy scaled mutation evolutionary computation[J]. International Journal of Fuzzy Systems,2016,18(6):1162−1179.. doi: 10.1007/s40815-016-0155-3 [13] MAVROVOUNIOTIS M,LI Changhe,YANG Shengxiang. A survey of swarm intelligence for dynamic optimization:Algorithms and applications[J]. Swarm and Evolutionary Computation,2017,33:1−17.. doi: 10.1016/j.swevo.2016.12.005 [14] YI Ping,KUMAR A,SAMUEL R. Realtime rate of penetration optimization using the shuffled frog leaping algorithm[J]. Journal of Energy Resources Technology,2015,137(3):032902.. doi: 10.1115/1.4028696 [15] JIANG Wanyi,SAMUEL R. Optimization of rate of penetration in a convoluted drilling framework using ant colony optimization[J]. Society of Petroleum Engineers,2016,41:158−180. [16] MA Sike,WU Min,CHEN Luefeng,et al. Design and application of weight–on–bit control system for drilling process:A variable–gain integrated controller with multiple–model parameter estimation[J]. Control Engineering Practice,2023,130:105378.. doi: 10.1016/j.conengprac.2022.105378 [17] 张炳义,刘凯,陈亚千,等. 石油钻机绞车永磁直驱电机智能送钻控制研究[J]. 石油矿场机械,2016,45(1):1−5.ZHANG Bingyi,LIU Kai,CHEN Yaqian,et al. Researching on intelligent drilling control of petroleum drilling rig winch permanent magnet direct–drive motor[J]. Oil Field Equipment,2016,45(1):1−5. [18] 刘振东,张彦廷,张伟,等. 油缸直驱式钻机模型自动送钻研究[J]. 石油矿场机械,2016,45(12):1−5.LIU Zhendong,ZHANG Yanting,ZHANG Wei,et al. Automatic drill research of hydro–cylinder direct–drive rig model[J]. Oil Field Equipment,2016,45(12):1−5. [19] ZHANG Zhen,GUO Yinan,SONG Xianfang. Improved nonlinear extended state observer–based sliding–mode rotary control for the rotation system of a hydraulic roofbolter[J]. Entropy,2022,24(1):41. [20] GUO Yinan,CHENG Wei,GONG Dunwei,et al. Adaptively robust rotary speed control of an anchor–hole driller under varied surrounding rock environments[J]. Control Engineering Practice,2019,86:24−36.. doi: 10.1016/j.conengprac.2019.02.002 [21] LIU Qingyun, ZHA Yiwen, LIU Tao, et al. Research on adaptive control of air–borne bolting rigs based on genetic algorithm optimization[J]. Machines, 2021, 9(10): 240. underground coal mine[J]. Coal Science and Technology, 2017, 45(5): 47–51. [22] YANG Xiyun,WANG Shichen,PENG Yan,et al. Short–term photovoltaic power prediction with similar–day integrated by BP–AdaBoost based on the Grey–Markov model[J]. Electric Power Systems Research,2023,215:108966.. doi: 10.1016/j.jpgr.2022.108966 [23] ZHOU Yang,CHEN Xin,WU Min,et al. Modeling and coordinated optimization method featuring coupling relationship among subsystems for improving safety and efficiency of drilling process[J]. Applied Soft Computing Journal,2021,99:106899.. doi: 10.1016/j.asoc.2020.106899 [24] CHEN Xuyue,GAO Deli,GUO Boyun,et al. Real–time optimization of drilling parameters based on mechanical specific energy for rotating drilling with positive displacement motor in the hard formation[J]. Journal of Natural Gas Science and Engineering,2016,35:686−694.. doi: 10.1016/j.jngse.2016.09.019 [25] ZHOU Yang,CHEN Xin,ZHAO Haibin,et al. A novel rate of penetration prediction model with identified condition for the complex geological drilling process[J]. Journal of Process Control,2021,100:30−40.. doi: 10.1016/j.jprocont.2021.02.001 [26] PAN Yingnan,WU Yanmin,LAM H K. Security–based fuzzy control for nonlinear networked control systems with DoS attacks via a resilient event–triggered scheme[J]. IEEE Transactions on Fuzzy Systems,2022,30(10):4359−4368.. doi: 10.1109/TFUZZ.2022.3148875 -
下载:
点击查看大图
图(14) / 表(2)
